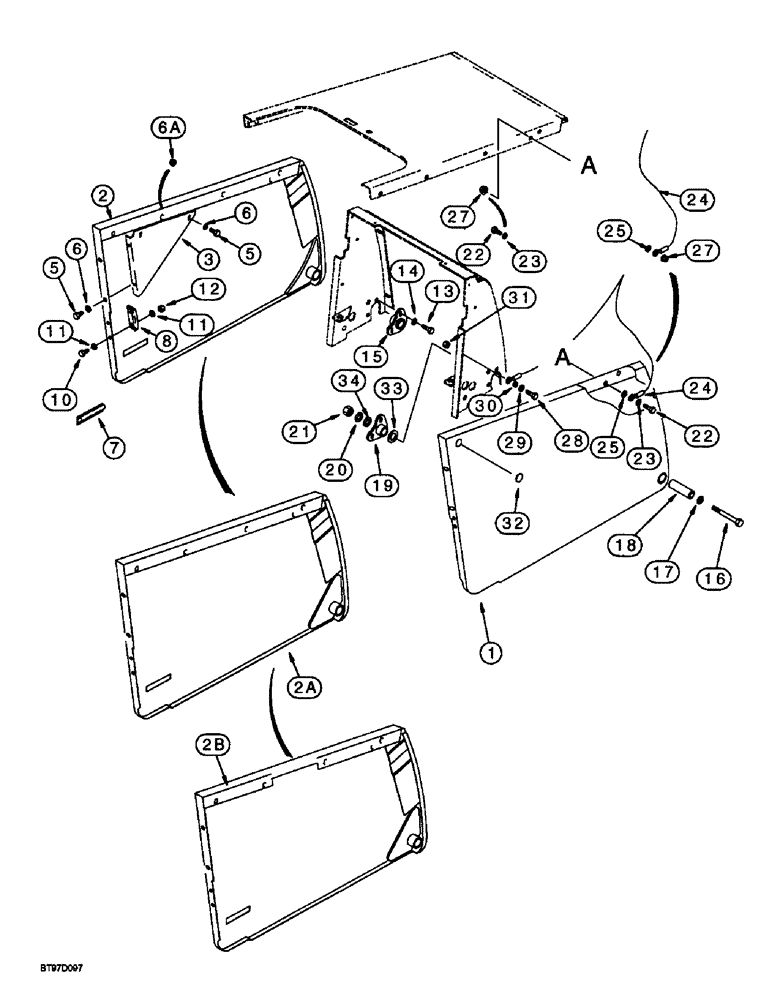

Запчасти Case 570LXT (9-086) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

139480A1

LARGE PLATE

PANEL engine, right hand side, no longer available, order 195975A2 panel, Ref. 1B

1шт.

1a

195975A1

LARGE PLATE

PANEL engine, right hand side, not shown, see Ref. 2A for pivot area difference, no longer available, order 195975A2 panel

1шт.

1b

195975A2

PANEL

engine, right hand side, not shown, see Ref. 2B for notch area difference

1шт.

2

139483A1

LARGE PLATE

PANEL engine, left hand side, no longer available, order 195976A2 panel, Ref. 2B

1шт.

2a

195976A1

LARGE PLATE

PANEL engine, left hand side, no longer available, order 195976A2 panel

1шт.

2b

195976A2

PANEL

engine, left hand side

1шт.

3

139492A1

LARGE PLATE

BRACE side panel, left hand

1шт.

4

139490A1

LARGE PLATE

BRACE side panel, right hand, not shown

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

8шт.

6a

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5

4шт.

7

183168A1

HANDLE

side panel, left hand

1шт.

8

D143715

SUPPORT

BRACKET side panel, left hand

1шт.

9

D143714

SUPPORT

BRACKETside panel, right hand, not shown

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

8шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

4шт.

13

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm, Replaces: 614-10025 bolt without washer used on some models

4шт.

14

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

15

139835A1

PIVOT

PLATE pivot, left hand

1шт.

16

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

- hex, 12-1.75 x 110 mm, 8.8

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

2шт.

18

140428A1

TUBE,14.3 mm ID, 25.4 mm OD, 87 mm Length

pivot

2шт.

19

139834A1

PIVOT

PLATE pivot, right hand

1шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

2шт.

21

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.

24

144908A1

CABLE

hood retaining

1шт.

25

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 ID x 16 OD x 6 mm long, cable

1шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5

1шт.

28

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.

30

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 ID x 16 OD x 6 mm long, cable

1шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

32

D140267

PLUG,30.16mm OD

side panel

2шт.

33

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

2шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.
