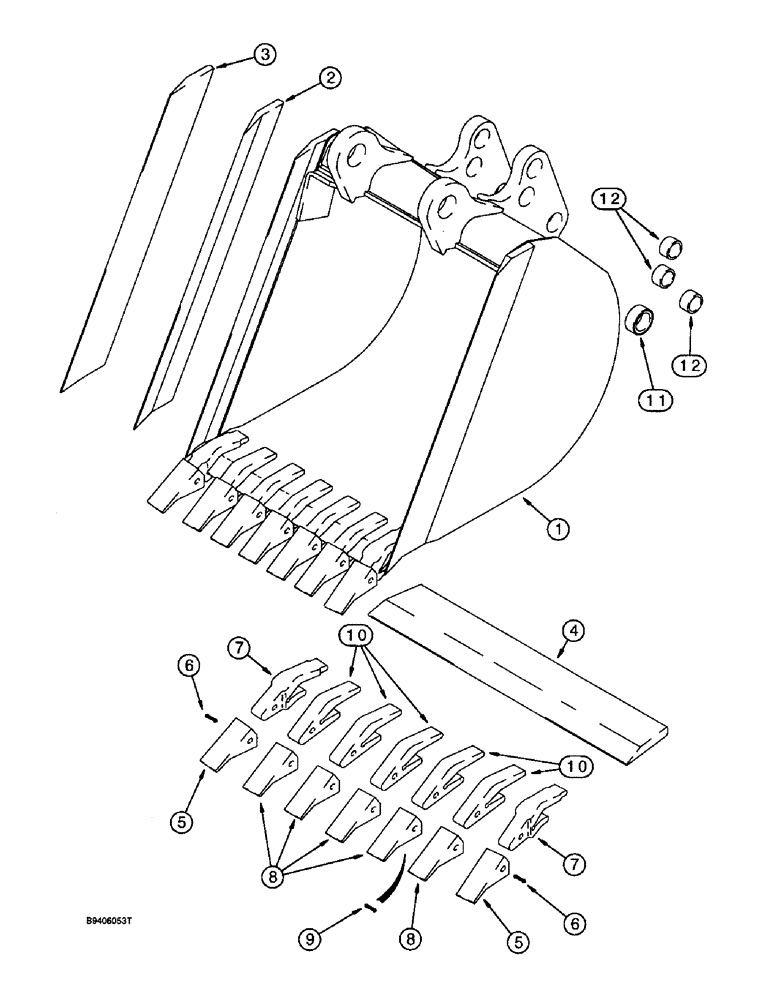

Запчасти Case 570LXT (9-060) - UNIVERSAL BACKHOE BUCKETS, 914 MM (36 INCH) WIDE, 914 MM (36IN) WIDE (09) - CHASSIS/ATTACHMENTS

1

D150365

BUCKET

ASSEMBLY heavy duty trenching, with 7 teeth, order from Machinery Price List, 914 mm, 36 inch wide, Includes: Ref. 2-4

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, right hand side, bucket

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, left hand side, bucket

1шт.

4

D145062

EDGE, CUTTING,901.8mm W x 165.1mm L

EDGE cutting, center, 914 mm, 36 inch bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Includes Ref 5-7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank, Replaces D134686 pin

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, order Ref 8-10

5шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank, Replaces D134686 pin

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch

6шт.
