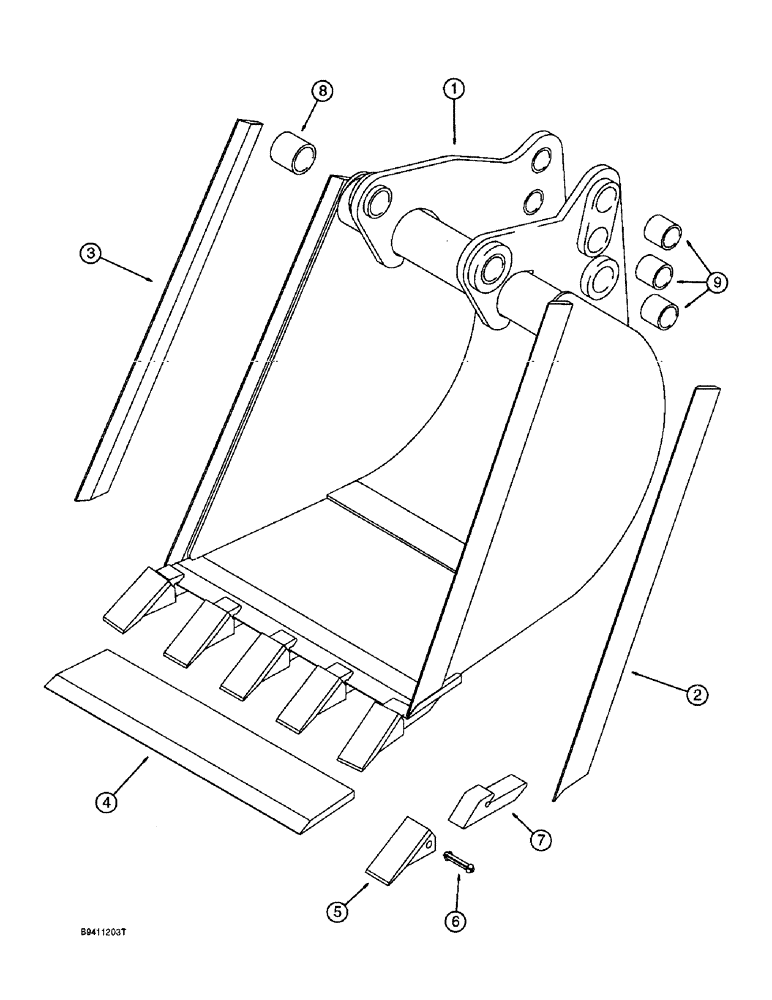

Запчасти Case 570LXT (9-058) - BACKHOE BUCKETS, 610 MM (24 INCH) AND 762 MM (30 INCH) WIDE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
129885A1
BUCKET
ASSEMBLY trenching, with 5 teeth, order from Machinery Price List, 610 mm, 24 inch wide, also see Figure 9-052 for 24 inch Universal bucket, Includes: Ref. 2-4
1шт.
2
129894A1
EDGE
cutting, right hand side, bucket, 610 mm, 24 inch wied trenching
1шт.
3
129893A1
EDGE
cutting, left hand side, bucket, 610 mm, 24 inch wied trenching
1шт.
4
129944A1
SUPPORT
EDGE cutting, center, 610 mm, 24 inch bucket
1шт.
D41659
TOOTH
ASSEMBLY bucket, 610 mm, 24 inch wied trenching, Includes: Ref. 5-7
5шт.
5
D39093
TOOTH
POINT tooth, 610 mm, 24 inch wied trenching bucket
1шт.
6
245466A1
RETAINER,Flexpin, Bucket Tooth
Pin flex, Replaces D39094 pin, 610 mm, 24" wide trenching bucket
1шт.
7
87415240
BUCKET TOOTH SHANK
SHANK tooth, 610 mm, 24 inch wied trenching bucket
1шт.
8
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1-3/4 x 2-1/4 x 1-1/4 inch, 610 mm, 24 inch wied trenching bucket
2шт.
9
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
1-1/2 x 1-7/8 x 1-1/4 inch, 610 mm, 24 inch wied trenching bucket
6шт.
1
178015A1
BUCKET
ASSEMBLY trenching, with 6 teeth, order from Machinery Price List, 762 mm, 30 inch wide, not shown, also see Figure 9-052 for 30 inch Universal bucket, Includes: Ref. 2-4
1шт.
2
129894A1
EDGE
cutting, right hand side, bucket, 762 mm, 30 inch wide trenching
1шт.
3
129893A1
EDGE
cutting, left hand side, bucket, 762 mm, 30 inch wide trenching
1шт.
4
178019A1
EDGE
cutting, center, 762 mm, 30 inch bucket
1шт.
D41659
TOOTH
ASSEMBLY bucket, 762 mm, 30 inch wide trenching, Includes: Ref. 5-7
6шт.
5
D39093
TOOTH
POINT tooth, 762 mm, 30 inch wide trenching bucket
1шт.
6
245466A1
RETAINER,Flexpin, Bucket Tooth
Pin flex, Replaces D39094 pin, 762 mm, 30" wide trenching bucket
1шт.
7
87415240
BUCKET TOOTH SHANK
SHANK tooth, 762 mm, 30 inch wide trenching bucket
1шт.
8
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1-3/4 x 2-1/4 x 1-1/4 inch, 762 mm, 30 inch wide trenching bucket
2шт.
9
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
1-1/2 x 1-7/8 x 1-1/4 inch, 762 mm, 30 inch wide trenching bucket
6шт.
Выбрано товаров: 20
