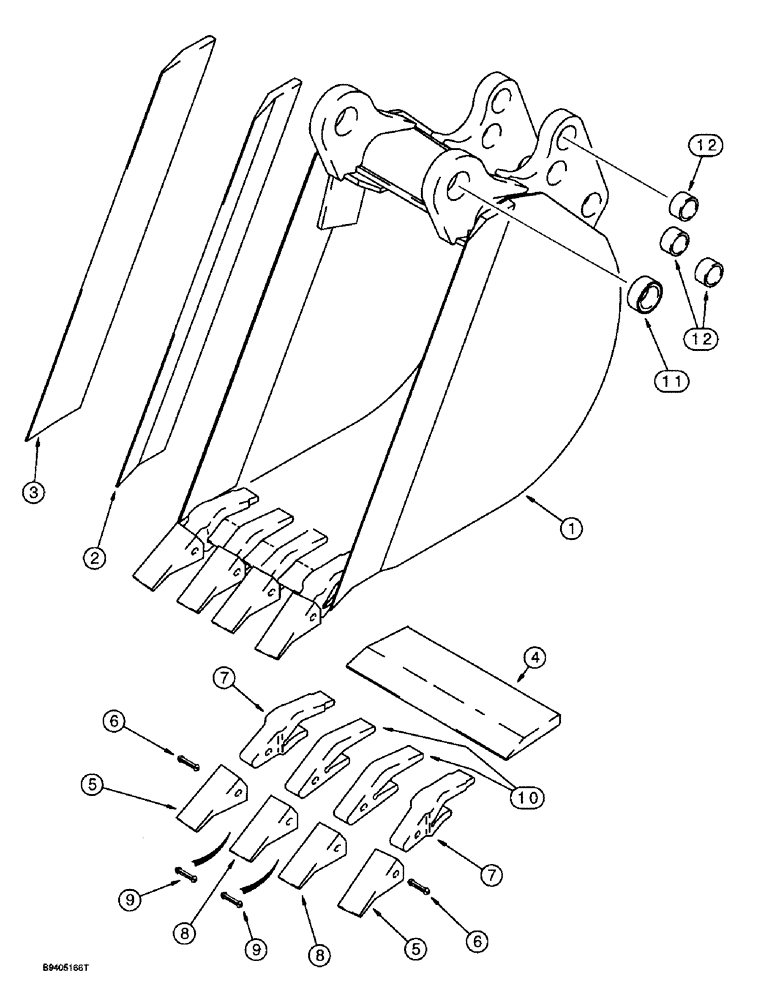

Запчасти Case 570LXT (9-052) - UNIVERSAL BACKHOE BUCKETS, 406 MM (16 INCH) AND 457 MM (18 IN) WIDE (09) - CHASSIS/ATTACHMENTS

1

D147247

BUCKET

ASSEMBLY heavy duty trenching, with 3 teeth, order from Machinery Price List, 406 mm, 16 inch wide, not shown, 406 mm, 16 inch wide trenching bucket and teeth heavy duty, Includes: Ref 2-4

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, right hand side, bucket, 406 mm, 16 inch wide trenching bucket and teeth heavy duty

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, left hand side, bucket, 406 mm, 16 inch wide trenching bucket and teeth heavy duty

1шт.

4

D147249

EDGE

cutting, center, 406 mm, 16 inch bucket, 406 mm, 16 inch wide trenching bucket and teeth heavy duty

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, 406 mm, 16 inch wide trenching bucket and teeth heavy duty, Includes Ref 5-7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners, 406 mm, 16 inch wide trenching bucket and teeth heavy duty

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank, Replaces D134686 pin, 406 mm, 16" wide trenching bucket and teeth heavy duty

1шт.

7

D138157

SHANK

tooth, outer corners, 406 mm, 16 inch wide trenching bucket and teeth heavy duty

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, order Ref 8-10, 406 mm, 16 inch wide trenching bucket and teeth heavy duty

1шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center, 406 mm, 16 inch wide trenching bucket and teeth heavy duty

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank, Replaces D134686 pin, 406 mm, 16" wide trenching bucket and teeth heavy duty

1шт.

10

D48212

SHANK

tooth, center, 406 mm, 16 inch wide trenching bucket and teeth heavy duty

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch, 406 mm, 16 inch wide trenching bucket and teeth heavy duty

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch, 406 mm, 16 inch wide trenching bucket and teeth heavy duty

6шт.

1

D146588

BUCKET

ASSEMBLY heavy duty trenching, with 4 teeth, order from Machinery Price List, 457 mm,18 inch wide, Includes: Ref. 2-4

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, right hand side, bucket, 457 mm, 18 inch wide trenching bucket and teeth heavy duty

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, left hand side, bucket, 457 mm, 18 inch wide trenching bucket and teeth heavy duty

1шт.

4

D145060

EDGE, CUTTING,444.6mm W x 165.1mm L

EDGE cutting, center, 457 mm , 18 inch bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, 457 mm, 18 inch wide trenching bucket and teeth heavy duty, Includes Ref 5-7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners, 457 mm, 18 inch wide trenching bucket and teeth heavy duty

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Outer point and shank, Replaces D134686 pin, 457 mm, 18" wide trenching bucket and teeth heavy duty

1шт.

7

D138157

SHANK

tooth, outer corners, 457 mm, 18 inch wide trenching bucket and teeth heavy duty

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, order Ref 8-10, 457 mm, 18 inch wide trenching bucket and teeth heavy duty

2шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center, 457 mm, 18 inch wide trenching bucket and teeth heavy duty

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Center point and shank, Replaces D134686 pin, 457 mm, 18" wide trenching bucket and teeth heavy duty

1шт.

10

D48212

SHANK

tooth, center, 457 mm, 18 inch wide trenching bucket and teeth heavy duty

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch, 457 mm, 18 inch wide trenching bucket and teeth heavy duty

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch, 457 mm, 18 inch wide trenching bucket and teeth heavy duty

6шт.
