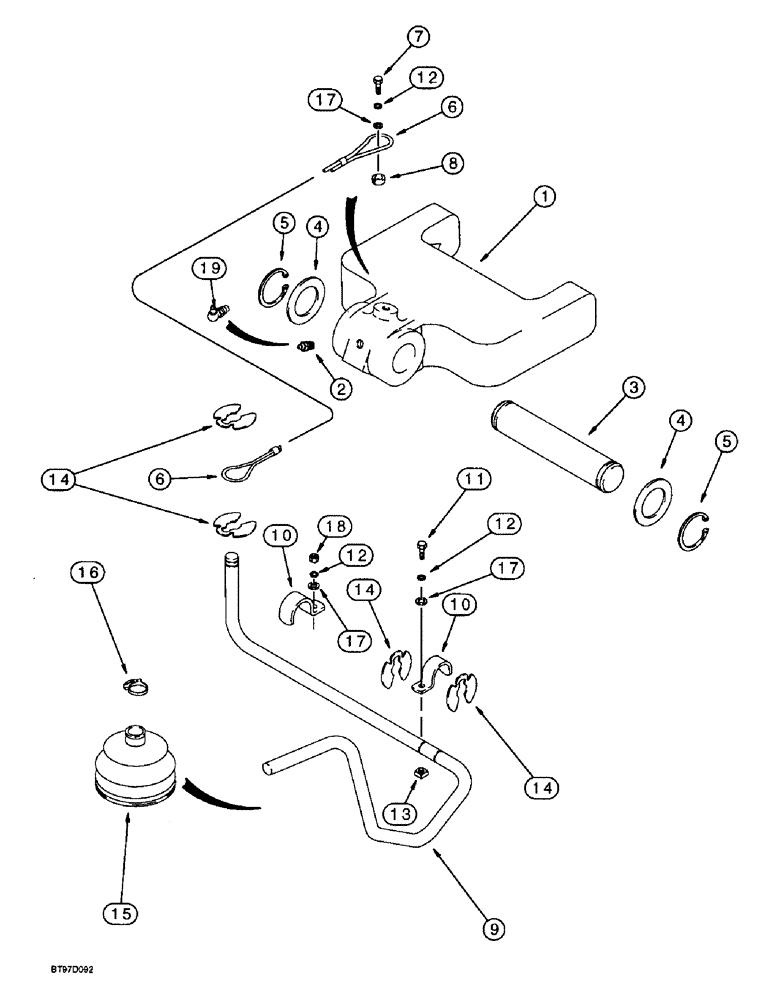

Запчасти Case 570LXT (9-040) - BOOM LATCH (09) - CHASSIS/ATTACHMENTS

1

141057A1

LATCH ASSY.

LATCH backhoe boom

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch, if used

1шт.

3

D129227

PIN,40mm OD x 196mm L

- Boom latch to swing tower

1шт.

4

D144592

WASHER,41mm ID

flat, special

2шт.

5

800-44040

SNAP RING,M40, Ext

RING external retaining, No. 40, pin retaining

2шт.

6

D129641

CABLE

latch control

1шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

8

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 ID x 16 OD x 6 mm long

1шт.

9

185632A2

THREADED ROD

ROD boom latch control

1шт.

10

D143723

SHIN

CLAMP rod

2шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

12

892-11010

LOCK WASHER,M10

3шт.

13

122958A1

SQUARE NUT

square, special, 10 mm - 1.5

1шт.

14

D143591

RING, SNAP,12.7mm ID, Ext

RETAINER clip ring

4шт.

15

D86664

BOOT

rod

1шт.

16

D143735

CLAMP,19.1mm - 22.2mm

boot

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

3шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Replaces 219-1 straight fitting on some models 90º, 1/8" NPT x .84" lg

1шт.
