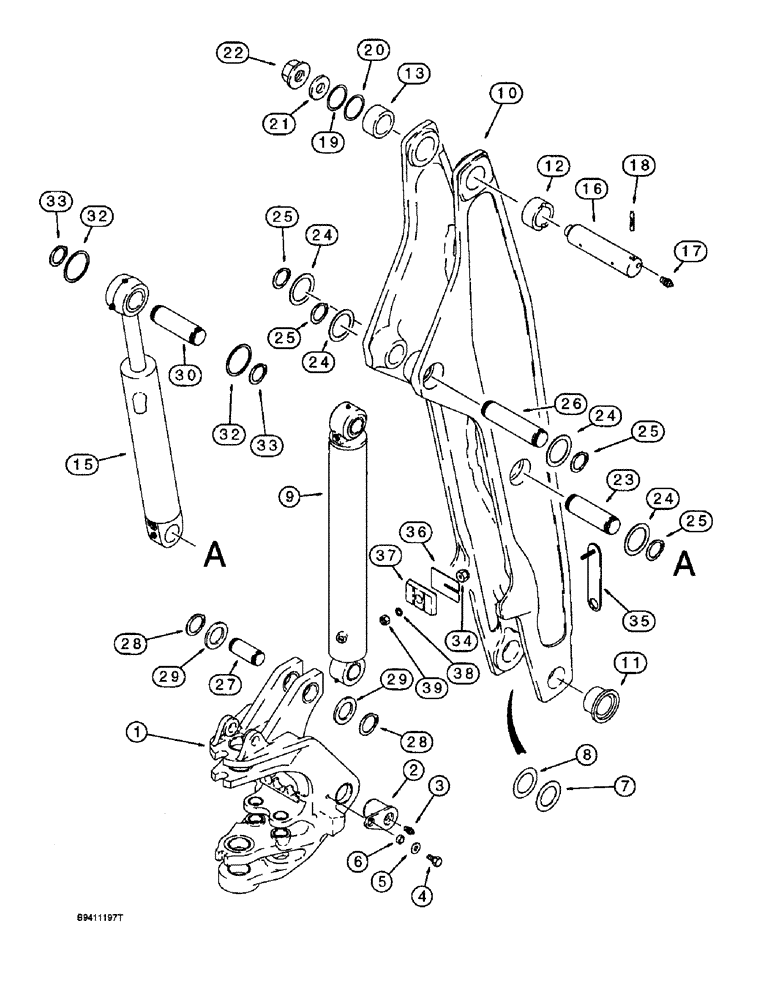

Запчасти Case 570LXT (9-036) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SWING TOWER backhoe, with inner ears, see Figure 9-034 for swing tower and bushings

1шт.

2

121779A1

PIN,70mm OD x 98mm L

- swing, Serial Range: tower-boom

2шт.

Ref. 2 - If looking for a 2 piece pin and bracket the part nos are: pin is 250663A1 and the bracket is 303646A1

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

4

604-20040

BOLT,Hex, M20 x 40mm, Cl 8.8

hex, self locking, 20 - 2.5 x 40 mm, replaces 614-20040 bolt used on some models

2шт.

5

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

- flat, 13/16 x 1-3/4 x 7/32 inch, hardened

2шт.

6

122897A1

SPACER,21mm ID x 31.75mm OD x 12mm L

21 x 32 x 12 mm

2шт.

7

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

special, boom to swing tower

1шт.

8

R32119

WASHER,71mm ID x 114mm OD x 1.6mm Thk

SHIM 71, 2-13/16 ID x 114 mm, 4-1/2 inch

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY boom, for correct assembly and components, see Figure 8-132

1шт.

10

129883A1

BOOM

backhoe, Includes: Ref. 11-13

1шт.

11

D151071

BUSHING,70.19mm ID x 94mm OD x 38mm L

70, 2-3/4 ID x 34 mm, 1-5/16 inc long

2шт.

12

D135739

BUSHING,70.19mm ID x 90mm OD x 44mm L

70, 2-3/4 ID x 44 mm, 1-3/4 inch long, with slot for roove pin, right hand side of boom at boom to dipper pivot

1шт.

13

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

70, 2-3/4 ID x 44 mm, 1-3/4 inch long, without slot for groove pin, left hand side of boom at boom to dipper pivot

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY 108, 4-1/4 ID x 686 mm, 27 inch stroke, dipper, parts list Figure 8-134 or 8-135A

1шт.

16

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

18

435-51652

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

Pin, Grooved, , center groove 1/2" x 3 1/4", Type E, Hardened

1шт.

19

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), Boom to dipper 1.57mm Thk

1шт.

20

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD), Boom to dipper 3.05mm Thk

1шт.

21

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

flat, hardened, special

1шт.

22

181042A1

FLANGE NUT

hex flange, special, 1-3/4 inch NF

1шт.

23

129040A1

PIN,50mm OD x 225mm L

dipper cylinder closed, Serial Range: end-boom

1шт.

24

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

4шт.

25

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

26

129040A1

PIN,50mm OD x 225mm L

boom cylinder closed, Serial Range: end-boom

1шт.

27

142842A1

PIN,50mm OD x 170mm L

boom cylinder rod end to swing tower

1шт.

28

800-44050

SNAP RING,M50, Ext

RING external retaining, No. 50, pin retaining

2шт.

29

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

- flat, 2-1/16 x 2-15/16 x 1/16 inch

1шт.

30

129041A1

PIN,50mm OD x 167mm L

dipper cylinder rod, Serial Range: end-dipper

1шт.

32

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

33

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

2шт.

34

184884A1

PLUG

boom bumper

1шт.

35

184723A1

BRACKET, SUPPORTING

BRACKET hose sleeve support

1шт.

36

138624A1

BLOCK

SHIM boom bumper, 1.5 mm thick

1шт.

37

87371132

BUMPER

boom; Replaces 183938A1

1шт.

38

892-11010

LOCK WASHER,M10

1шт.

39

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
