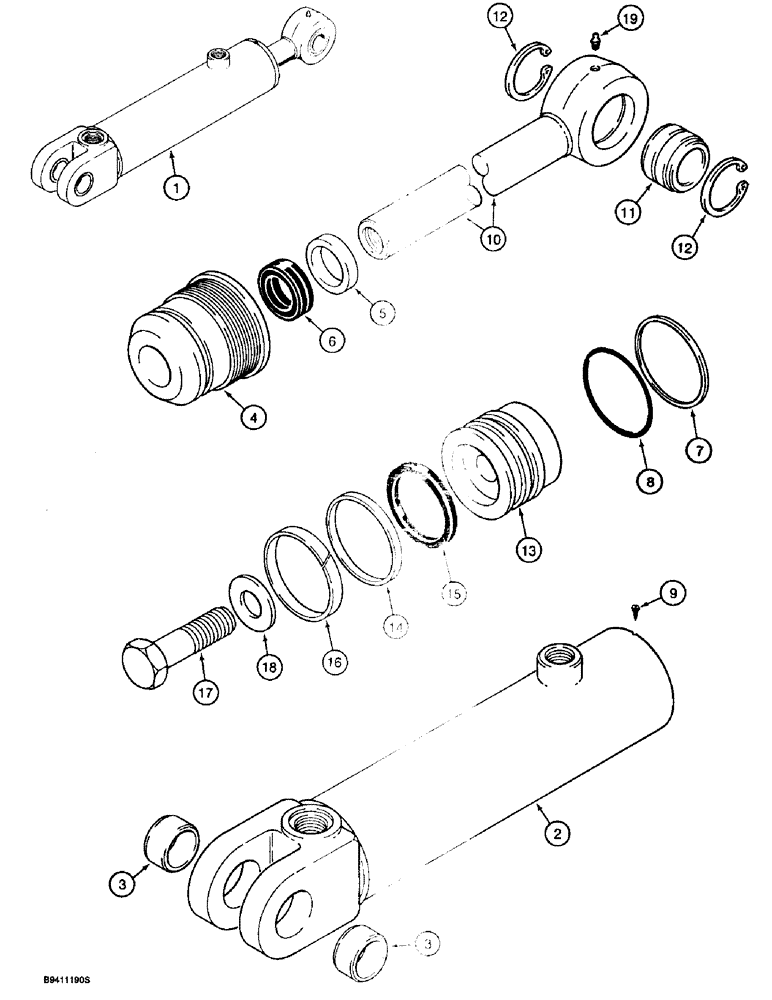

Запчасти Case 570LXT (8-142) - THREE-POINT HITCH TILT CYLINDER, 570LXT MODELS (08) - HYDRAULICS

1

137912A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

CYLINDER ASSEMBLY 64, 2-1/2 ID x 160 mm, 6-19/64 inch stroke, tilt

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

137913A1

TUBE,356.5 mm Length

ASSEMBLY cylinder, Includes: Ref. 3

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 4-8

1шт.

4

118115A1

CYLINDER END CAP

GLAND cylinder

1шт.

5

D95141

WIPER SEAL

WIPER piston rod

1шт.

Part of Seal Kit, P/N 183286A1

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-cup, piston rod

1шт.

Part of Seal Kit, P/N 183286A1

1шт.

7

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of Seal Kit, P/N 183286A1

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 183286A1

1шт.

9

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

10

137917A1

PISTON ROD

ROD ASSEMBLY piston, 1-1/4 inch, 32 mm diameter, cylinder, Includes: Ref. 11

1шт.

11

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING piston rod

1шт.

12

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

13

137528A1

PISTON

cylinder

1шт.

14

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N 183286A1

1шт.

15

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING backup, piston seal

1шт.

Part of Seal Kit, P/N 183286A1

1шт.

16

G100714

RING

wear, piston

1шт.

Part of Seal Kit, P/N 183286A1

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

183286A1

SEAL KIT

KIT seal, Includes: Ref. 5, 6, 7, 8, 14, 15, 16 and an instruction sheet

1шт.
