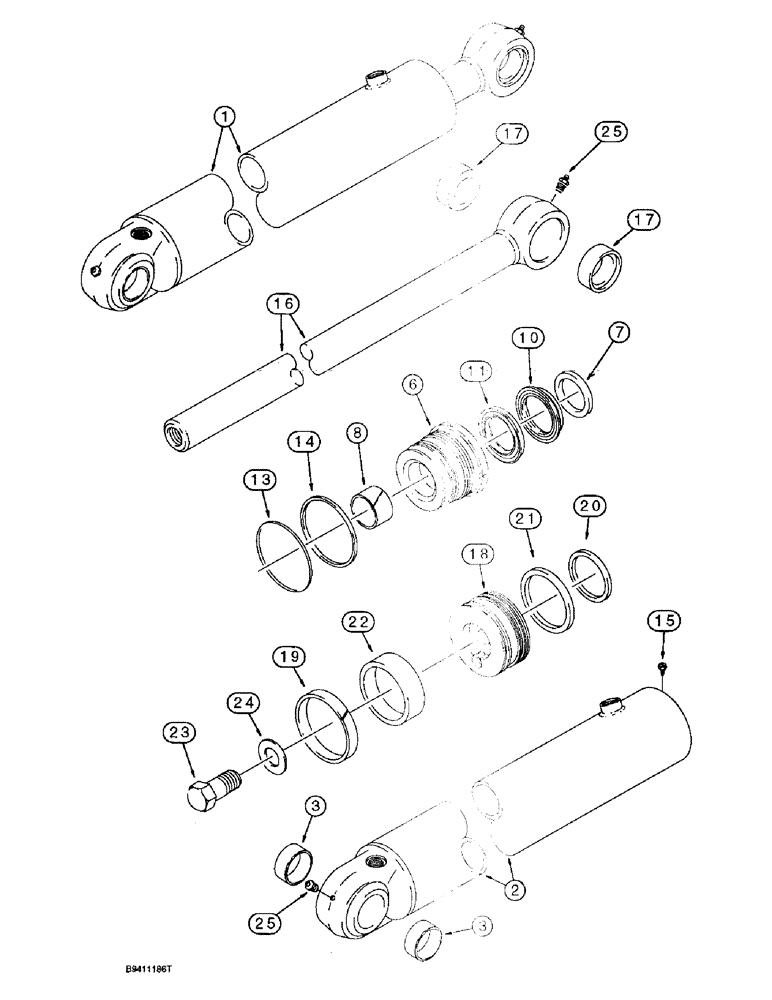

Запчасти Case 570LXT (8-132) - BACKHOE BOOM CYLINDER (08) - HYDRAULICS

1

182106A1

CYLINDER ASSY.

CYLINDER ASSEMBLY 114, 4-1/2 ID x 981 mm, 38-5/8 inch stroke, boom, without grease seals at rod and tube eyes, no longer available, order 189653A1 cylinder

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

189653A2R

REMAN-HYD CYLINDER

Reman for New PN 182106A1

1шт.

1

189653A2C

CORE-HYD CYLINDER

Return Number

1шт.

1

189653A1

CYLINDER ASSY.

CYLINDER ASSEMBLY 114, 4-1/2 ID x 981 mm, 38-5/8 inch stroke, boom, without grease seals at rod and tube eyes, Includes: Ref. 2

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

189653A2R

REMAN-HYD CYLINDER

Reman for New PN 189653A1

1шт.

1

189653A2C

CORE-HYD CYLINDER

Return Number

1шт.

2

182107A1

HYD TUBE,114.17 mm OD

TUBE cylinder, 182106A1cylinder

1шт.

2

189654A1

TUBE,114.17 mm OD, 1241.2 mm Length

cylinder, 189653A1 cylinder

1шт.

3

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm long, tube

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 6-8

1шт.

6

127862A1

CYLINDER END CAP

GLAND cylinder, has identification groove on outer lip

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER piston rod

1шт.

Part of Seal Kit, P/N 182218A1

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit, P/N 182218A1

1шт.

1542877C1

SEAL KIT,57.2mm Rod

KIT seal, NSS, order 182218A1 kit below, Includes: Ref. 10-11

1шт.

Part of Seal Kit, P/N 182218A1

1шт.

10

1542929C1

SEAL,2.778mm OD

rod, NSS, order 182218A1 kit below

1шт.

Part of Seal Kit, P/N 182218A1

1шт.

11

1542928C1

SEAL,2.275" ID

buffer, NSS, order 182218A1 kit below

1шт.

Part of Seal Kit, P/N 182218A1

1шт.

13

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

4-1/4 ID x 1/8 inch wide, gland

1шт.

Part of Seal Kit, P/N 182218A1

1шт.

14

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit, P/N 182218A1

1шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

16

182109A1

PISTON ROD

ROD piston, 57 mm, 2-1/4 inch diameter, Includes: Ref. 17

1шт.

17

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm long, rod

2шт.

18

182115A1

JACK PISTON

PISTON cylinder, 182106A1 cylinder

1шт.

18

189657A1

JACK PISTON

PISTON cylinder, 189653A1 cylinder

1шт.

19

182116A1

RING,Locking, 108.64mm ID x 118.3mm OD x 6.33mm Thk

cast iron

1шт.

Part of Seal Kit, P/N 182218A1

1шт.

20

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

RING backup, piston seal

1шт.

Part of Seal Kit, P/N 182218A1

1шт.

21

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

piston

2шт.

Part of Seal Kit, P/N 182218A1

1шт.

22

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING wear, piston

1шт.

Part of Seal Kit, P/N 182218A1

1шт.

23

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

24

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, hardened, special, 1-1/4 inch

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

182218A1

SEAL KIT

KIT seal, Includes: Ref. 7, 8, 10, 11, 13, 14, 19, 20, 21, 22, and P/N 1542877C1

1шт.
