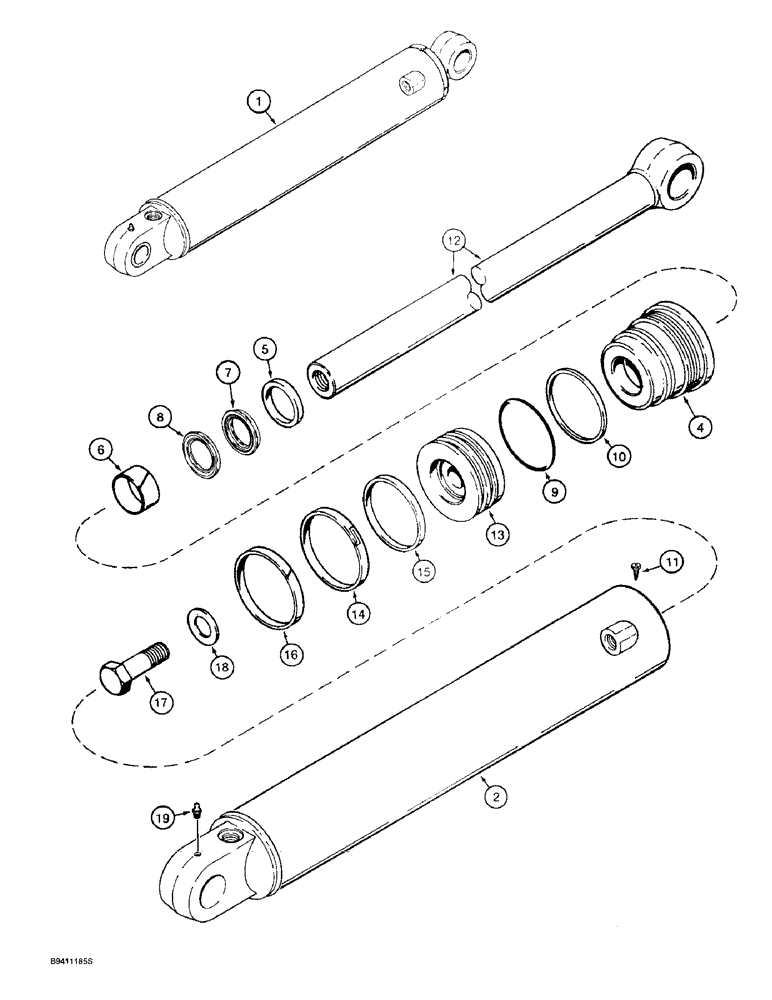

Запчасти Case 570LXT (8-128) - BACKHOE STABILIZER CYLINDERS, 3/4 INCH CLOSED END PORT (08) - HYDRAULICS

1

143574A1

CYLINDER ASSY.

CYLINDER ASSEMBLY 102 (4) ID x 664 mm, 21-3/4 inch stroke, stabilizer, right hand, without tube or rod bushings, no longer available, order 195503A1 cylinder on Fig. 8-129A and (1) 218-5121 elbow

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

195503A1R

REMAN-HYD CYLINDER

570LXT LANDSCAPER, 580L BACKHOE (NORTH AMERICA), Both LOADER, CYLINDER ASSEMBLY 102 (4) ID x 664 mm, 21-3/4 inch stroke, stabilizer, right hand, without tube or rod bushings, Reman for New PN 143574A1

1шт.

1

195503A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

143575A1

CYLINDER ASSY.

CYLINDER ASSEMBLY 102 (4) ID x 553 mm, 21-3/4 inch stroke, stabilizer, left hand, without tube or rod bushings, no longer available, order 195504A1 cylinder on Fig. 8-129A and (1) 218-5121 elbow, Includes: Ref. 2-19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

195504A1R

REMAN-HYD CYLINDER

CYLINDER ASSEMBLY 102 (4) ID x 553 mm, 21-3/4 inch stroke, stabilizer, left hand

1шт.

1

195504A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

143576A1

HYD TUBE

TUBE cylinder, right hand

1шт.

2

143577A1

HYD TUBE

TUBE cylinder, left hand

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, Includes: Ref. 4-6

1шт.

4

128135A1

GLAND

cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit, P/N 1543269C1

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING center

1шт.

Part of Seal Kit, P/N 1543269C1

1шт.

1542876C1

SEAL KIT,50.8mm Rod

KIT, SEALS, NSS, Order 1543269C1 below, Incl Ref 7-8

1шт.

Part of Seal Kit, P/N 1543269C1

1шт.

7

1543001C1

SEAL

rod, NSS

1шт.

Part of Seal Kit, P/N 1543269C1

1шт.

8

1543000C1

SEAL

buffer, NSS

1шт.

Part of Seal Kit, P/N 1543269C1

1шт.

9

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 1/8 inch wide, gland

1шт.

Part of Seal Kit, P/N 1543269C1

1шт.

10

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N 1543269C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

123726A1

PISTON ROD

ROD piston, 51 mm, 2 inch diameter

1шт.

13

G108123

PISTON,100.94mm Bore, 50.9mm Rod, 50.65mm W

cylinder

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit, P/N 1543269C1

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

backup, piston seal

1шт.

Part of Seal Kit, P/N 1543269C1

1шт.

16

G100448

RING,101.6mm OD, Ext

wear, piston

1шт.

Part of Seal Kit, P/N 1543269C1

1шт.

17

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, hardened, special, 1-1/32 x 2-3/8 x 3/16 inch

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

1543269C1

SEAL KIT

KIT seal, Includes: Ref. 5, 6, 7, 8, 9, 10, 14, 15, 16, and P/N 1542876C1

1шт.
