Запчасти Case 570LXT (8-110) - THREE-POINT HITCH CONTROL VALVE, INLET/OUTLET SECTION MAIN RELIEF VALVE (08) - HYDRAULICS

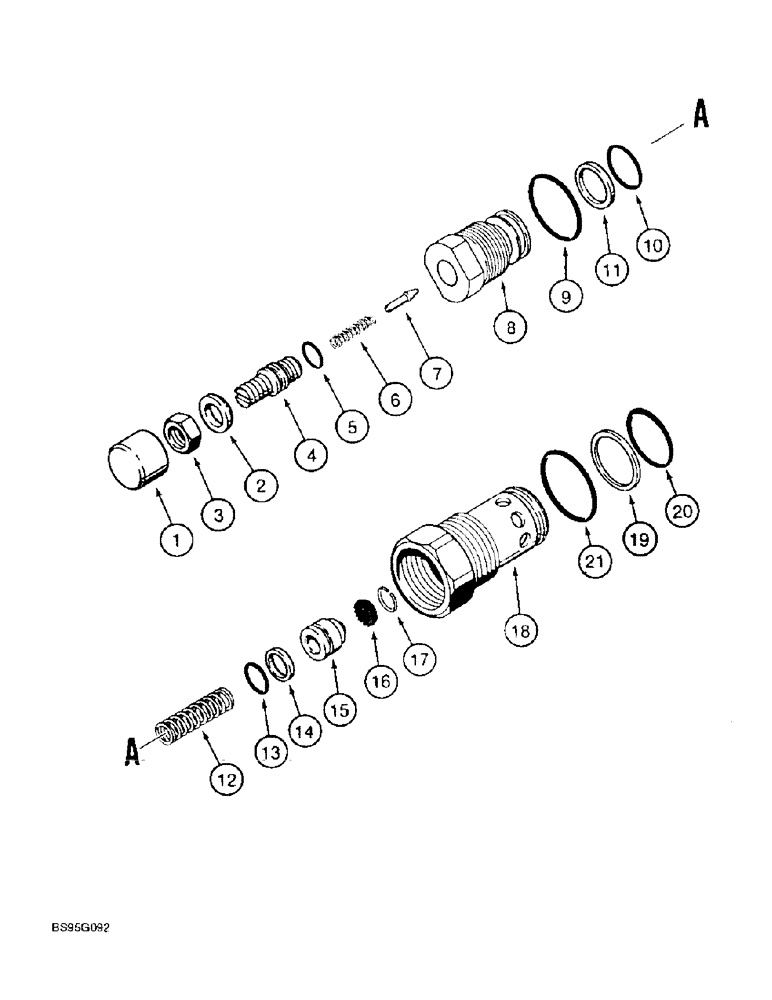

Схема запчастей Case 570LXT - (8-110) - THREE-POINT HITCH CONTROL VALVE, INLET/OUTLET SECTION MAIN RELIEF VALVE (08) - HYDRAULICS
18
3
13
17
11
2
14
8
16
15
7
5
19
4
21
12
20
10
9
6
1

Артикул

Название

Примечание

Количество

N8191

VALVE

ASSEMBLY main relief, inlet/outlet section, Includes: Ref. 1-21

1шт.

1

NSS

NOT SOLD SEPARAT

COVER tamper proof, if used

1шт.

2

N9475

WASHER

special

1шт.

3

425-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8 inch NF

1шт.

4

N9463

ADJUSTMENT SCREW

adjusting

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

6

N9465

SPRING

poppet

1шт.

7

N9464

PLUNGER

POPPET relief valve

1шт.

8

N9769

BODY

pilot plunger

1шт.

9

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk, Pilot body, large

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

10

A55911

O-RING,0.807" ID

pilot body, small

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

11

N9768

BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm

RING backup, small O-ring

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

12

S300250

SPRING

poppet, poppet

1шт.

13

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

14

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

backup

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

15

S300249

VALVE POPPET

POPPET relief valve

1шт.

16

S300248

VALVE POPPET

SCREEN poppet, poppet

1шт.

17

N9473

RING, SNAP

RING retaining

1шт.

18

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

19

N8197

O-RING,1.006" ID x 1.116" OD x 0.055"

RING backup

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

20

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

21

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

106721A1

SEAL KIT

KIT seal, Includes: Ref. 5, 9, 10, 11, 13, 14, 19, 20, and 21

1шт.
