(7-005A) - REAR DRIVE AXLE, PARKING BRAKE

Запчасти Case 570LXT (7-005A) - REAR DRIVE AXLE, PARKING BRAKE (07) - BRAKES

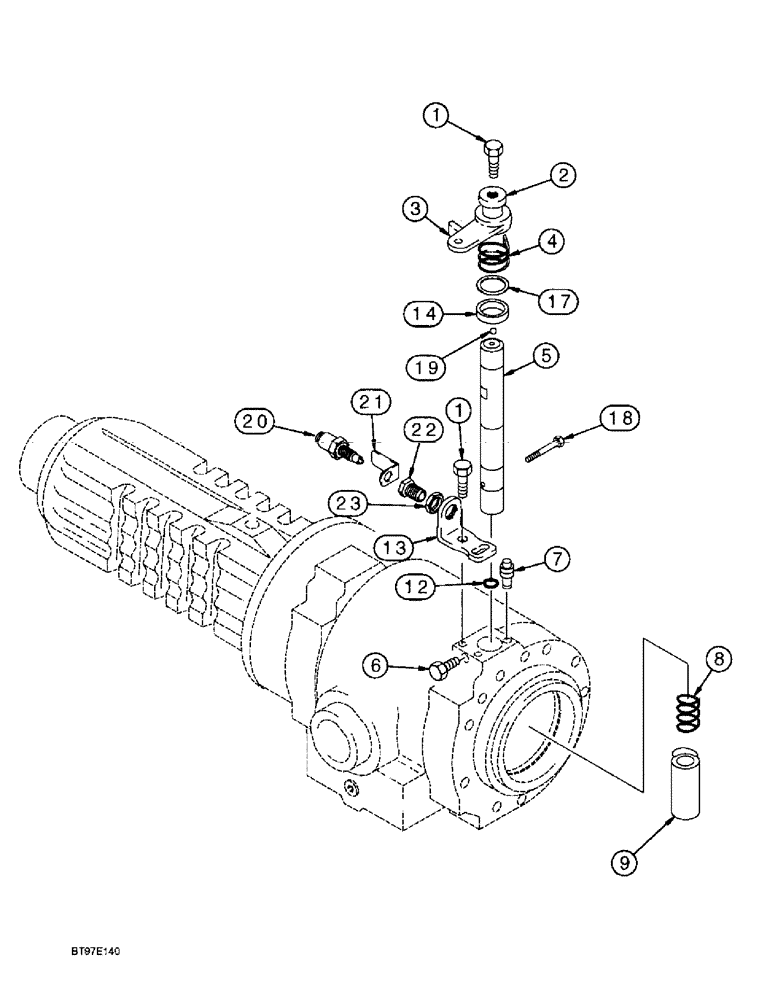

Схема запчастей Case 570LXT - (7-005A) - REAR DRIVE AXLE, PARKING BRAKE (07) - BRAKES
6
12
7
13
19
3
1
21
14
23
9
18
8
20
22
17
2
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

114367A5

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-003A and 7-005A, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, Includes: Ref. 1 - 19

1шт.

1

190451A1

LOCK BOLT,M8 x 20mm

BOLT special, 8 x 20 mm

6шт.

2

190463A1

WASHER

flat

2шт.

3

280436A1

LEVER

brake, 100 mm

2шт.

4

190476A2

SPRING

left-hand, shown

1шт.

4

190477A2

SPRING

right-hand, not shown

1шт.

5

256483A1

SHAFT

brake control

2шт.

6

283462A1

BOLT

BOLT special, 8-1.0 x 23.5 mm

2шт.

7

E135810

VENTING SCREW

PLUG brake bleeder, brake housing

2шт.

8

190473A1

SPRING

cam

2шт.

9

190456A1

CAM

brake

2шт.

12

321183A1

O-RING

Special; Replaces 190448A1

2шт.

13

256478A1

SUPPORT

BRACKET stop

2шт.

14

256481A1

SPACER

BUSHING shaft

2шт.

17

256482A1

SHIM

shaft

2шт.

18

256485A1

BOLT

BOLT special, 6 x 16 mm

2шт.

19

283466A1

BALL

6.5 mm

2шт.

281952A1

KIT

switch, park brake, Includes: Ref. 20 - 23

2шт.

20

280450A1

PARK BRAKE SWITCH

SWITCH brake

1шт.

21

280452A1

BRACKET

switch guard, lever

1шт.

22

280457A1

LEVER

SLEEVE switch

1шт.

23

281960A1

NUT

special, 16 mm - 1.5

1шт.
