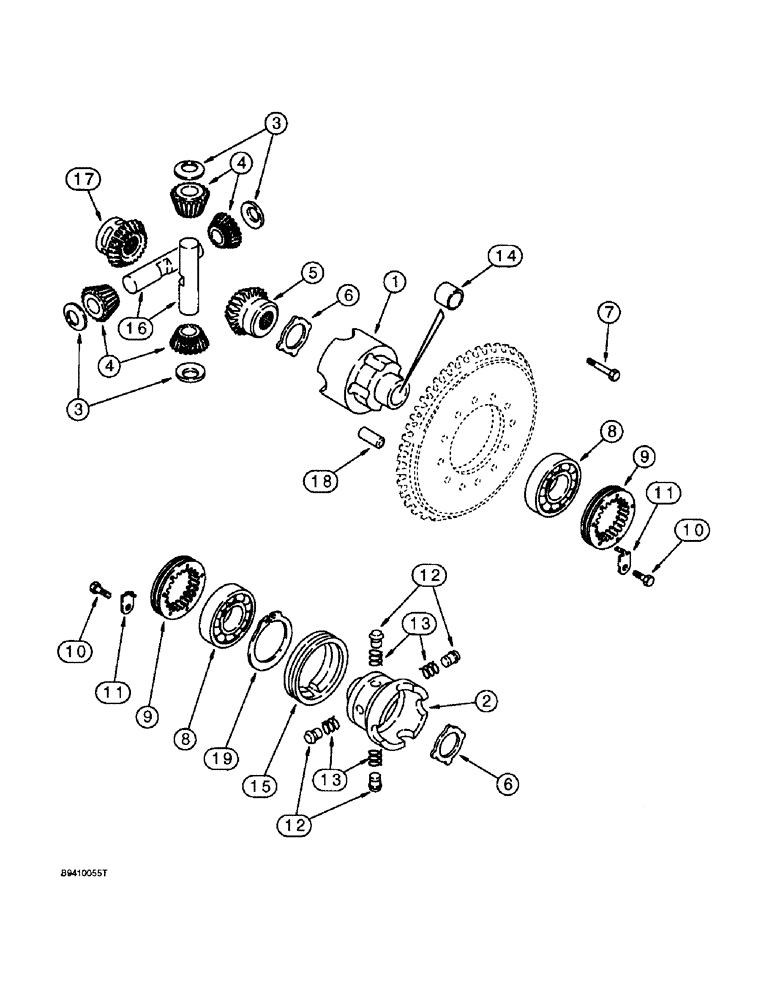

Запчасти Case 570LXT (6-054) - REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

114367A2

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 132884, see Figure 6-052 - 6-060, 7-002 and 7-004, no longer available, order P/N 114367A5 axle, Includes: P/N 190472A1 and Ref. 1-19

1шт.

114367A3

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 134170, see Figure 6-0053A - 6-060, 7-002 and 7-004, also includes P/N 187562A2 bracket, Ref.18 on Figure 6-050, no longer available, order P/N 114367A5 axle, Includes: P/N 190472A1 and Ref. 1-19

1шт.

114367A4

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-003A and 7-004, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, no longer available, order P/N 114367A5 axle, Includes: P/N 190472A1 and Ref. 1-19

1шт.

114367A5

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-003A and 7-005A, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, Includes: P/N 190472A1 and Ref. 1-19

1шт.

190472A1

HOUSING

ASSEMBLY, differential, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

85812301

WASHER

thrust

4шт.

Part of Differential Gear Set P/N 231394A1

1шт.

4

190471A1

PINION

GEAR sun, 12 teeth, no longer sold separately, must be replaced as a set, for service order P/N 231394A1 gear set

4шт.

5

D142971

PINION

GEAR side, pinion, no longer sold separately, must be replaced as a set, for service order P/N 231394A1 gear set

1шт.

Part of Differential Gear Set P/N 231394A1

1шт.

6

190469A1

THRUST WASHER

WASHER thrust

2шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

BOLT hex, special, 12-1.75 x 90 mm, class 12.9

10шт.

8

69007

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

cup and cone

2шт.

9

P3034505

NUT

RING locking, threaded

2шт.

10

112486A1

BOLT,Hex, M6 x 12

BOLT hex, self-locking, special, 6-1 x 12 mm

2шт.

11

175959A1

BRACKET

lock

2шт.

12

1967557C1

PIN

detent

4шт.

13

1967558C1

SPRING

detent

4шт.

14

190452A1

BUSHING

housing

2шт.

15

191067A1

SLEEVE

housing

1шт.

16

190468A1

SHAFT

sun gear, no longer sold separately, must be replaced as a set, for service order P/N 231394A1 gear set

2шт.

Part of Differential Gear Set P/N 231394A1

1шт.

17

190464A1

PINION

GEAR side pinion, no longer sold separately, must be replaced as a set, for service order P/N 231394A1 gear set

1шт.

Part of Differential Gear Set P/N 231394A1

1шт.

18

85812306

ROLL PIN

PIN dowel, 12 x 40 mm

1шт.

19

175961A1

RING, LOCKING

RING lock

1шт.

231394A1

SET OF PARTS

SET gear, differential, service replacement, Includes: Ref. 3 - 5, 16 and 17

1шт.
