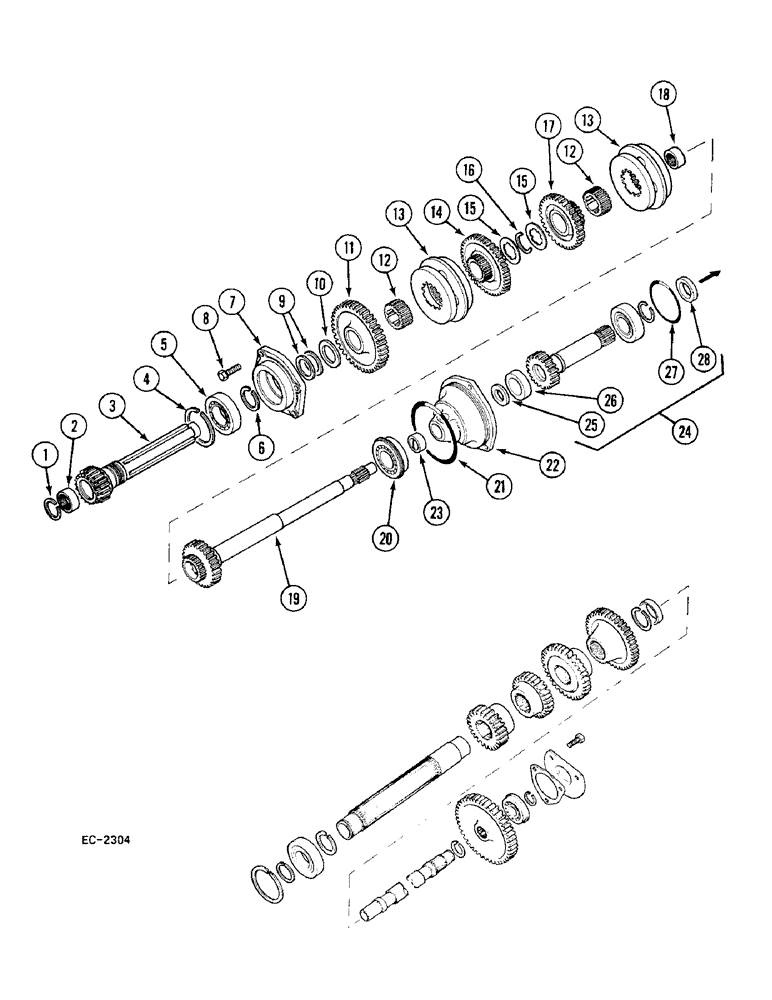

Запчасти Case 380B (6-182) - SPEED TRANSMISSION, IN CLUTCH HOUSING (06) - POWER TRAIN

1

66014C1

SNAP RING

RING - internal snap, front needle bearing

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

- needle, main shaft

1шт.

3

65258C1

SHAFT

- main, speed transmission

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - internal snap, main shaft bearing retainer

1шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING - ball, main shaft

1шт.

5

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING - ball (Optional to ST264)

1шт.

5

71271C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST264)

1шт.

5

704234R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST264)

1шт.

5

3048701R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST264)

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining snap

1шт.

7

534411R1

BEARING ASSY

CAGE - main shaft bearing

1шт.

8

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, grade 5

4шт.

9

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

- mainshaft lubrication line seal

2шт.

10

398332R1

WASHER

- ring, mainshaft bearing cage

1шт.

11

398331R2

PINION

GEAR - 1st speed driven, 41 teeth

1шт.

12

398325R1

HUB

- speed shift

2шт.

13

65793C2

SYNCHRONIZER

- with cups

2шт.

14

398330R3

PINION

GEAR - 2nd speed driven, 33 teeth

1шт.

15

398328R2

THRUST WASHER

WASHER - main shaft thrust

2шт.

16

398329R1

CIRCLIP

RING - synchronizer locating snap

1шт.

17

398327R3

PINION

GEAR - 4th speed driven, 24 teeth

1шт.

18

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING - needle, clutch shaft

1шт.

19

92717C1

SHAFT

- clutch

1шт.

20

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball, clutch shaft

1шт.

20

70126C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

42347D

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

398323R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

3066860R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

3066862R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

20

3067617R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

21

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

- 5-1/4 ID x 1/8 inch

1шт.

22

398318R41

CAGE ASSY.

CAGE - PTO and clutch shaft, Includes: Ref. 23

1шт.

23

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

- clutch shaft

1шт.

24

1277488C2

SEAL KIT

KIT - service, seal, Includes: Ref. 25 - 28, installation sleeve and instructions

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - oil, clutch shaft

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - oil, PTO drive shaft

1шт.

27

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

- 3-3/4 ID x 1/8 inch

1шт.

28

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL - oil

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - installation

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - fitting

1шт.
