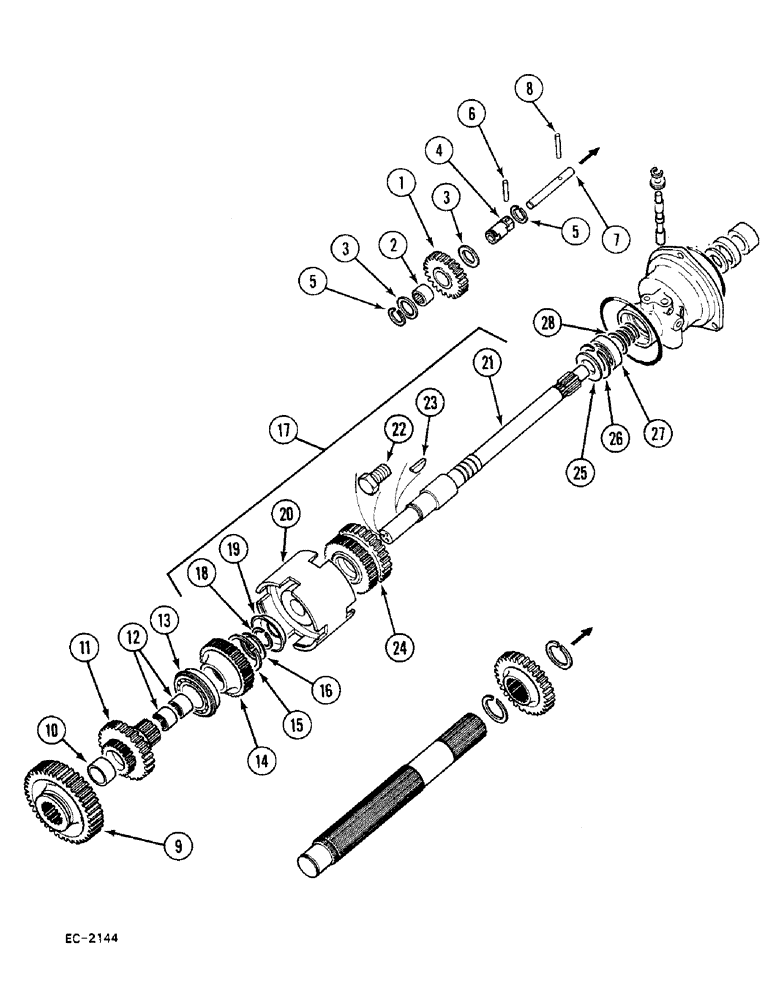

Запчасти Case 380B (6-176) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (06) - POWER TRAIN

1

527776R1

PINION

GEAR - forward/reverse idler, 23 teeth

1шт.

2

551139R91

BEARING, NEEDLE

BEARING - needle, idler shaft

1шт.

2

529930R91

BEARING

- needle, Serial Range: (Optional-551139R91)

1шт.

3

527772R1

WASHER

- forward/reverse idler gear

2шт.

4

527775R2

SLEEVE

- idler gear

1шт.

5

362260R1

RING, SNAP

RING - retainer, idler gear, idler gear

2шт.

6

18543R1

LOCK PIN,7/32" x 1", Slotted

PIN, 7/32" x 1", Slotted

1шт.

7

527774R1

SHAFT

- forward/reverse idler

1шт.

8

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

9

527773R2

GEAR

- hi-lo sliding, 42 teeth

1шт.

10

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING - needle

1шт.

11

404200R3

PINION

GEAR - direct drive hub, 28 teeth

1шт.

12

550839R91

BEARING, NEEDLE

BEARING - needle, clutch shaft

2шт.

12

531436R91

NEEDLE BEARING

BEARING - needle, Serial Range: (Optional-550839R91)

2шт.

13

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball, direct drive gear

1шт.

13

398323R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

13

42347D

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

13

3066862R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

13

3067617R91

BEARING, BALL

BEARING- ball, Serial Range: (Optional-ST243)

1шт.

13

3066860R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST243)

1шт.

14

404199R3

SPROCKET ASSY.

CARRIER - direct drive clutch disc

1шт.

15

70244C1

RING, SNAP

RING - internal snap

1шт.

16

336000R1

SNAP RING,#175, 1.640", Ext

RING - retaining, external, 1.64 inch

1шт.

17

92758C91

PACKAGE

KIT - service, forward/reverse and clutch cup servo, Includes: Ref. 18 - 23

1шт.

18

583976R1

SNAP RING,#125, 1.179", Ext

RING - retaining, external

1шт.

19

70020C1

SLINGER

- direct drive clutch

1шт.

20

NSS

NOT SOLD SEPARAT

CUP - direct drive clutch

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT - clutch, Includes: Ref. 22

1шт.

22

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW - hex socket, 1/4 NC x 1/4 inch

2шт.

22

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - hex socket, 1/4 NC x 1/4 inch (Optional to 222386)

2шт.

23

124554

O-RING

- woodruff, 5/16 x 1 inch

1шт.

24

527763R3

PINION

GEAR ASSEMBLY - drive

1шт.

25

527767R1

THRUST WASHER

WASHER - clutch shaft thrust

1шт.

26

T17410

SNAP RING,M62 x 1.58mm Thk, Int

RING - retaining, clutch shaft bearing inner

1шт.

27

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING - ball, clutch shaft, clutch shaft

1шт.

27

86276H

BALL BEARING

- ball, Serial Range: (Optional-ST213)

1шт.

27

704771R92

BEARING, BALL,30 mm ID x 62 mm OD x 16"

BEARING - ball (Optional to ST213)

1шт.

27

70125C91

BEARING, BALL

BEARING - clutch shaft ball, Serial Range: (Optional-ST213)

1шт.

28

3112664R1

SNAP RING

RING - retaining, clutch shaft bearing outer

1шт.
