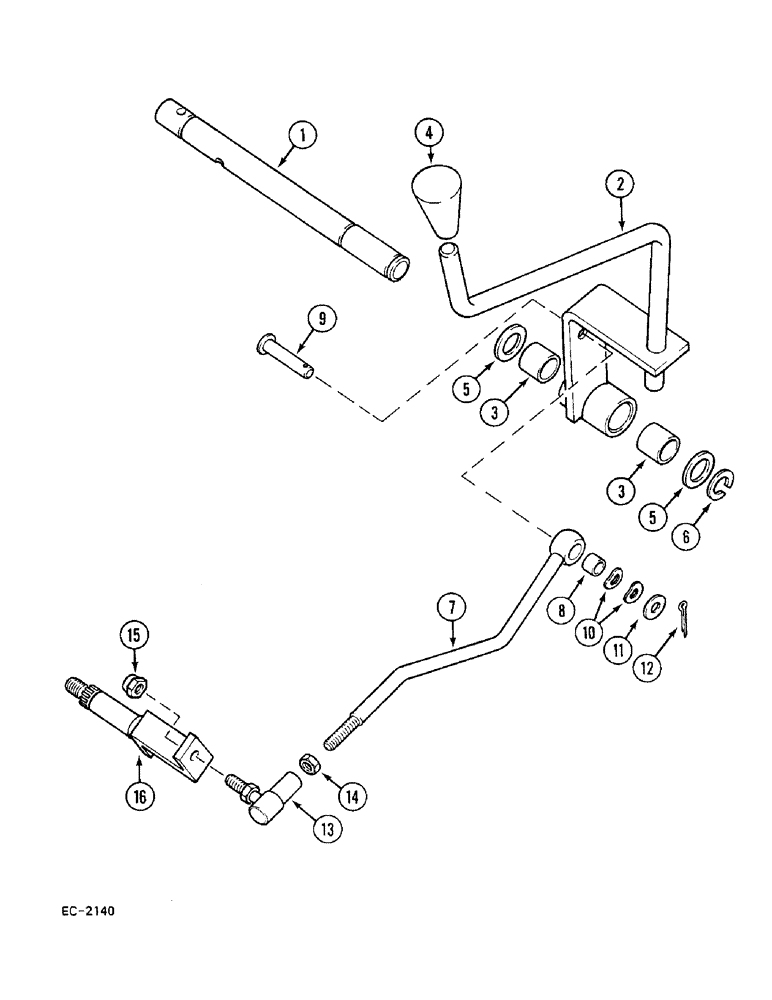

Запчасти Case 380B (6-168) - TRANSMISSION CONTROLS, EXTERNAL, RANGE SHIFT, WITH FORWARD AND REVERSE (06) - POWER TRAIN

1

3129270R1

SHAFT

- idle, range shift lever (See Figure 6-164)

1шт.

2

3129271R92

LEVER ASSY.

LEVER - range shift, Includes: Ref. 3

1шт.

3

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

4

1332762C1

BALL KNOB

KNOB - range lever

1шт.

5

615192R1

WASHER

- flat, 0.906 x 1.25 x 0.027 inch

2шт.

6

454331R1

SNAP RING,#87, Ext

1шт.

7

3129232R91

ROD ASSY.

ROD - range shift, rear, Includes: Ref. 8

1шт.

8

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

9

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN - clevis 3/8 x 1-7/32 inch

1шт.

10

83723R1

WAVE WASHER

- spring

2шт.

11

Q3641

WASHER

- plain, 0.406 x 0.625 x 0.054 inch

1шт.

12

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

13

653867C1

BALL JOINT

JOINT - ball, 3/8 inch

1шт.

14

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

15

3048059R91

LOCK NUT

NUT - lock, 3/8 inch NF

1шт.

16

1289948C1

ARM

- range shift, outer rear (See Figure 6-174)

1шт.
