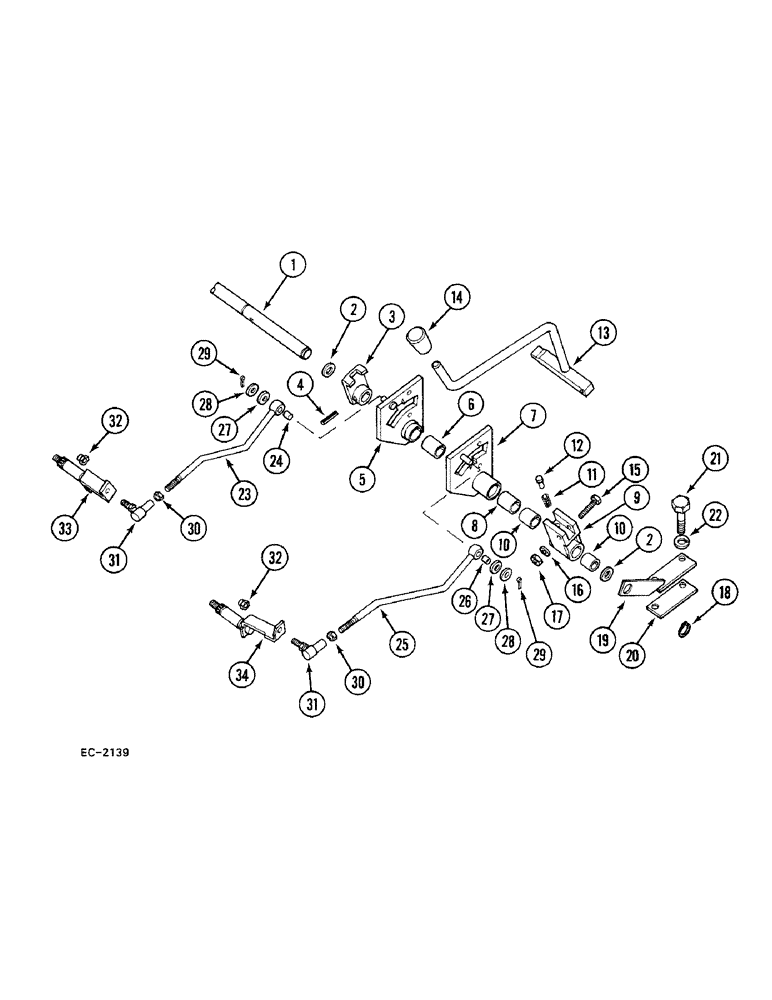

Запчасти Case 380B (6-166) - TRANSMISSION CONTROLS, EXTERNAL, RANGE SHIFT, WITHOUT FORWARD AND REVERSE (06) - POWER TRAIN

1

3129155R2

SHAFT

- idle, range shift lever (See Figure 6-164)

1шт.

2

615192R1

WASHER

- flat, 0.906 x 1.25 x 0.027 inch

1шт.

3

98573C1

LEVER

GATE - shift

1шт.

4

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

5

3129210R92

LEVER

- range, rear, Includes: Ref. 6

1шт.

6

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

7

3129209R91

LEVER ASSY.

LEVER - range, front, Includes: Ref. 8

1шт.

8

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

9

3129214R92

HOUSING ASSY.

HOUSING - selector arm, Includes: Ref. 10

1шт.

10

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

11

71486C1

SPRING

1шт.

12

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

13

3129268R2

LEVER ASSY.

LEVER - range shift

1шт.

14

1265216C1

BALL KNOB

KNOB - range shift lever

1шт.

15

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

16

95-11041

WASHER,3/8"

1шт.

17

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

18

454331R1

SNAP RING,#87, Ext

1шт.

19

1287659C1

SUPPORT

BRACKET - shift lever

1шт.

20

1287660C1

PLATE

- shim

1шт.

21

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

- hex, 5/8 NC x 1-1/2 inch

2шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

3129232R91

ROD ASSY.

ROD - range shift, rear, Includes: Ref. 24

1шт.

24

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

25

3129228R91

ROD ASSY.

ROD - range shift, front, Includes: Ref. 26

1шт.

26

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

27

83723R1

WAVE WASHER

- spring

2шт.

28

Q3641

WASHER

- plain, 0.406 x 0.625 x 0.054 inch

2шт.

29

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

30

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

31

653867C1

BALL JOINT

JOINT - ball, 3/8 inch

2шт.

32

3048059R91

LOCK NUT

NUT - lock, 3/8 inch NF

2шт.

33

1289948C1

ARM

- range shift, outer rear (See Figure 6-172)

1шт.

34

1289946C2

ARM

- range shift, outer front (See Figure 6-172)

1шт.
