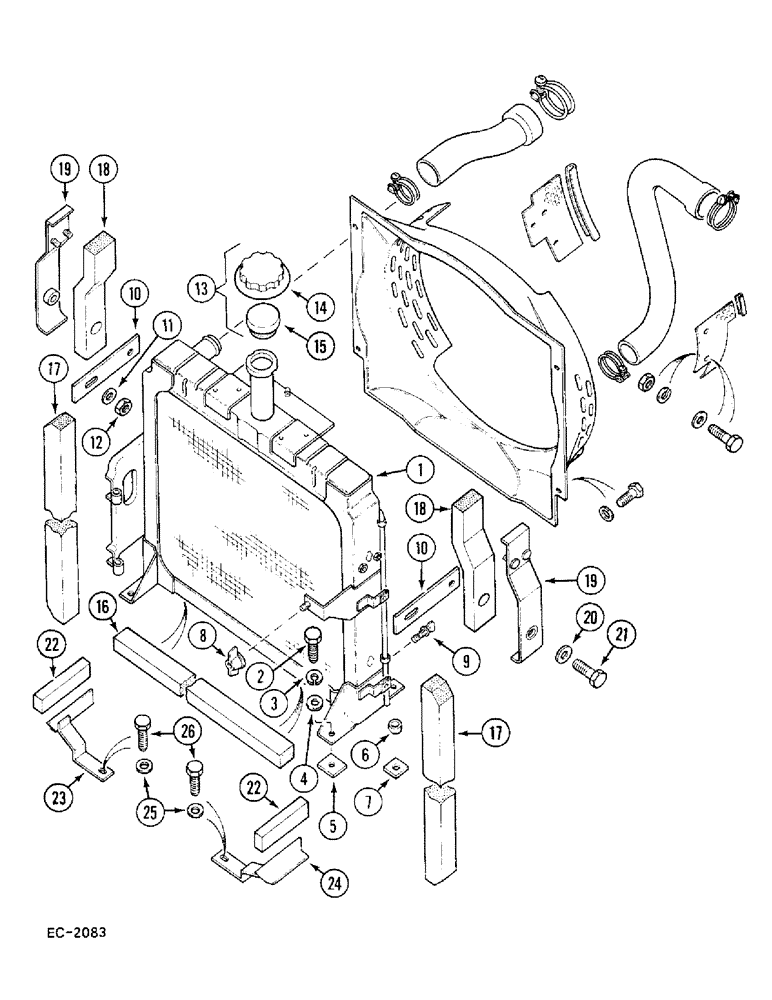

Запчасти Case 380B (2-02) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

84524C93

RADIATOR

1шт.

2

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

95-11041

WASHER,3/8"

4шт.

5

84525C1

SPACER

- radiator front mounting

2шт.

6

99427C1

SPACER

BUSHING

4шт.

7

47240D

PAD

- radiator

4шт.

8

7500032

BUSHING

NUT - wing, 5/16 inch NC

1шт.

9

3113083R1

PLUG, DRAIN

VALVE - drain, 1/4 inch

1шт.

10

98905C1

BRACKET

SUPPORT - radiator mounting, Serial Range: -18146

2шт.

10

99996C1

BRACKET

SUPPORT - radiator mounting, Start Serial: 18146

2шт.

11

120394

WASHER,3/8", SAE

WASHER - plain, 3/8 inch, Serial Range: -18146

2шт.

11

30175R1

WASHER,M8 x 17.5 x 2, HT

, Start Serial: 18146

2шт.

12

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, Serial Range: -18146

2шт.

12

30382R1

NUT,M8 x 1.25, Cl 10

Hex, Prevailing torque M8 x 1.25, Cl 10, Start Serial: 18146

2шт.

13

1500626C91

PLUG

CAP - radiator, Includes: Ref. 14, 15

1шт.

14

532674R1

PLUG

COVER

1шт.

15

3118639R1

CAP

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - lower radiator, 450 MM (Cut from bulk length)

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - foam, radiator side, 325 MM (Cut from bulk length)

2шт.

18

98934C1

SEAL

SEAL - shield, foam

2шт.

19

98907C1

GUARD

SHIELD - radiator seal

2шт.

20

120392

WASHER,1/4", SAE

- flat, 1/4 inch

2шт.

21

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

22

NSS

NOT SOLD SEPARAT

GASKET - side panel, 4.7 inch (Cut from 73228C2)

2шт.

22

73228C2

GASKET

SEAL - foam, bulk length, 4 foot roll

1шт.

23

98877C1

SUPPORT

- side seal, short, right

1шт.

24

98878C1

SUPPORT

- side seal, short, left

1шт.

25

120392

WASHER,1/4", SAE

- flat, 1/4 inch

2шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.
