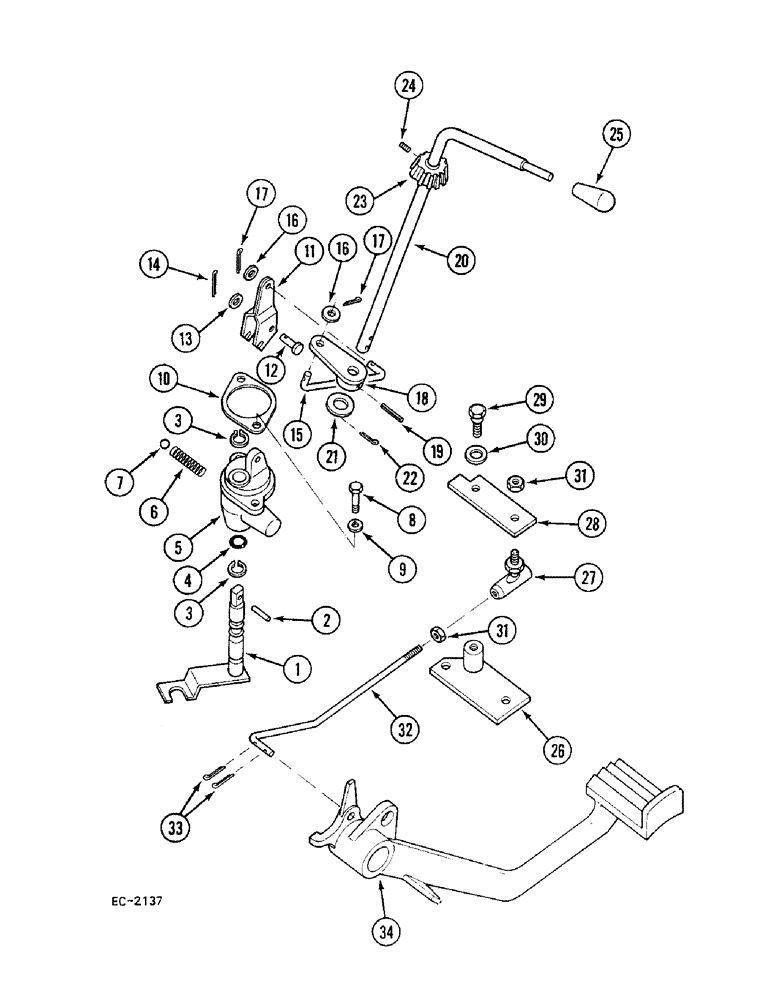

Запчасти Case 380B (6-160) - FORWARD AND REVERSE CONTROLS, LOCKOUT LEVER AND CONNECTIONS (06) - POWER TRAIN

1

531553R1

LEVER ASSY.

LEVER - lockout control

1шт.

2

19878R1

DOWEL,3/16" x 1"

PIN - dowel, 3/16 x 1 inch

1шт.

3

309032R1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

2шт.

4

370920R1

O-RING,1/2" ID

- 1/2 ID x 5/8 OD x 1/16 inch

1шт.

5

402595R2

SUPPORT

- control shaft

1шт.

6

402596R1

SPRING

- control, Serial Range: (Optional-444836)

1шт.

7

17014R1

BALL

- 7/16 inch diameter

1шт.

8

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

401623R1

GASKET

- control shaft support

1шт.

11

1282951C1

LEVER

BELLCRANK ASSEMBLY - forward/reverse control

1шт.

12

22731D

SPLIT PIN/SAFETY PIN

PIN - clevis, 1/4 x 29/32 inch

1шт.

13

16558R1

WASHER

- plain, 0.266 x 0.625 x 0.036 inch

1шт.

14

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

15

98803C1

ROD

- control

1шт.

16

95-11028

WASHER,1/4"

- plain, 1/4 inch

2шт.

17

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

18

98858C1

ARM ASSY.

ARM - control

1шт.

19

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

20

3121402R1

ROD

- control handle

1шт.

21

Q5035

WASHER

- plain, 0.531 x 1.00 x 0.054 inch

1шт.

22

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

23

528290R1

GUIDE RING

COLLAR - control handle

1шт.

24

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW - set, hex socket, no. 8 x 3/8 inch

1шт.

25

402584R1

BUTTON

KNOB - control handle

1шт.

26

528942R1

PLATE ASSY.

PLATE - mounting

1шт.

27

442720

BALL JOINT

JOINT - ball, 5/16 inch NF thread

1шт.

27

310673R1

BALL JOINT

JOINT - ball, 5/16 inch NF thread, Serial Range: (Optional-442720)

1шт.

27

310673R91

BALL JOINT

JOINT - ball, 5/16 inch NF thread, Serial Range: (Optional-442720)

1шт.

28

1282952C1

STRIP

- locking

1шт.

29

399509R1

BOLT,Shldr, Hex, 3/8" - 16 x 1", W/ Wshr

BOLT - shoulder

1шт.

30

23408R1

WASHER

- flat, 15/32 x 3/4 x 3/64 inch

1шт.

30

21756R1

WASHER

- flat, 15/32 x 3/4 x 1/32 inch

1шт.

31

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

32

528946R2

ROD

- lockout

1шт.

33

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

34

1500212C92

PEDAL ASSY.

PEDAL - clutch, with bushing (See Figure 6-156)

1шт.
