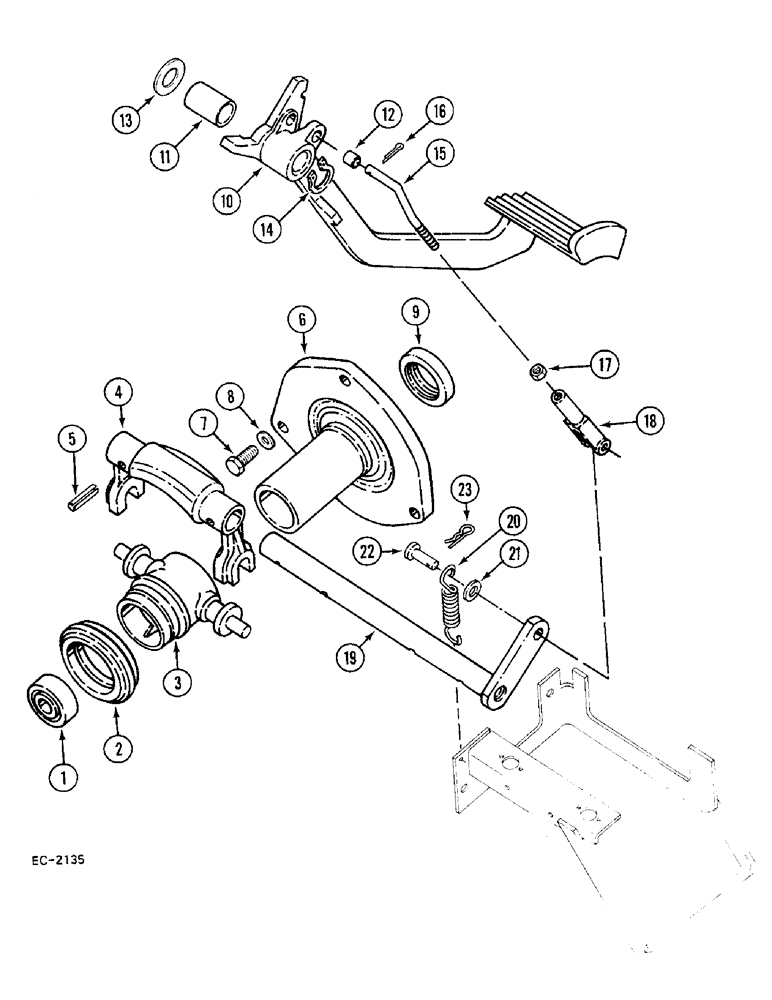

Запчасти Case 380B (6-156) - CLUTCH CONTROLS (06) - POWER TRAIN

1

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

- Clutch pilot

1шт.

1

538961R91

BEARING ASSY,19.995 mm ID x 46.995 mm OD x 13.94 mm

BEARING - ball (Optional to 537290R91)

1шт.

1

69844C91

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING - ball (Optional to 537290R91)

1шт.

1

70127C91

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball (Optional to 537290R91)

1шт.

1

70295C91

BALL BEARING

BEARING - ball, Serial Range: (Optional-537290R91)

1шт.

2

85104C91

BEARING, BALL

BEARING - ball - clutch release

1шт.

3

105445C1

BUSHING

SLEEVE - clutch release, 11 inch clutch, Serial Range: -18106

1шт.

3

85112C1

SLEEVE

- clutch release, 12 inch clutch, Start Serial: 18106

1шт.

4

398342R1

FORK

- clutch release

1шт.

5

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

6

71229C1

SLIPPER

CARRIER - clutch release sleeve

1шт.

7

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

3шт.

8

95-11041

WASHER,3/8"

3шт.

9

108982C1

OIL SEAL

SEAL - oil - release sleeve carrier

1шт.

9

108735C1

OIL SEAL

- oil, Serial Range: (Optional-108982C1)

1шт.

9

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL - oil, Serial Range: (Optional-108982C1)

1шт.

10

1500212C92

PEDAL ASSY.

PEDAL - clutch, with bushing, Includes: Ref. 11, 12

1шт.

11

530816R1

BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L

1шт.

12

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

- clutch operating rod

1шт.

13

23183R1

WASHER

- plain, 0.906 x 1.375 x 0.054 inch

1шт.

14

454331R1

SNAP RING,#87, Ext

1шт.

15

71086C1

ROD ASSY.

ROD - clutch operating

1шт.

16

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

17

114494

NUT,Jam, 3/8"-24, G5

1шт.

18

1500764C1

CLEVIS

- adjustable

1шт.

18

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - light adjustable, 3/8 NF x 2-1/2 inch (Optional to 1500764C1)

1шт.

19

1288115C1

SHAFT ASSY.

SHAFT - clutch release

1шт.

20

85141C1

SPRING

- clutch pedal return

1шт.

21

120394

WASHER,3/8", SAE

WASHER - plain, 3/8 inch

1шт.

22

74158H

CLEVIS PIN,3/8" x 1.344"

PIN - clevis, 3/8 x 1-11/32 inch

1шт.

23

3114469R1

SPLIT PIN/SAFETY PIN

PIN - cotter

1шт.
