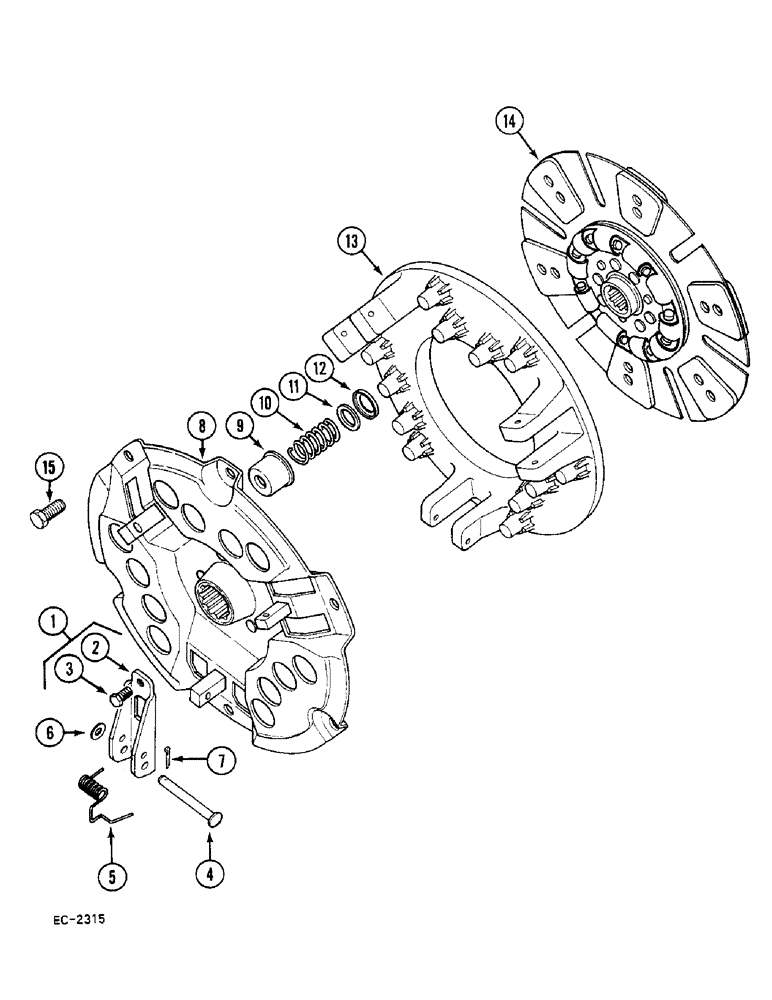

Запчасти Case 380B (6-154) - CLUTCH, HEAVY DUTY, 12 INCH ROCKFORD, P.I.N. 18106 AND AFTER (06) - POWER TRAIN

85025C91

COVER ASSY

ASSEMBLY - plate, clutch pressure, Includes: Ref. 1 - 13

1шт.

84342556R

REMAN-CLUTCH PLATE

380B (BEFORE S/N JJE0001500), P.I.N. 18106 AND AFTER, Reman For New PN 85025C91

1шт.

84342556C

CORE-CLUTCH PLATE

Return Number

1шт.

1

85120C91

PACKAGE

- lever assembly, Includes: Ref. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - release

3шт.

3

163479R3

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 0.545", Drilled

- adjusting

3шт.

4

149487R1

PIN

3шт.

5

375572R1

SPRING

3шт.

6

95-11034

WASHER,1/4"

- flat, 5/16 inch

3шт.

7

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

8

85148C1

PLATE

- back assembly

1шт.

9

353316R1

SPRING CUP

CUP - spring

12шт.

10

349934C1

SPRING

12шт.

11

311291C1

INSULATING WASHER

- insulating

12шт.

12

311292C1

WASHER

- retainer

12шт.

13

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE

1шт.

14

85026C1

CLUTCH DISC

ASSEMBLY - plate, clutch driven disc

1шт.

15

179881

BOLT,1/2" - 13 x 1", Gr 5

6шт.
