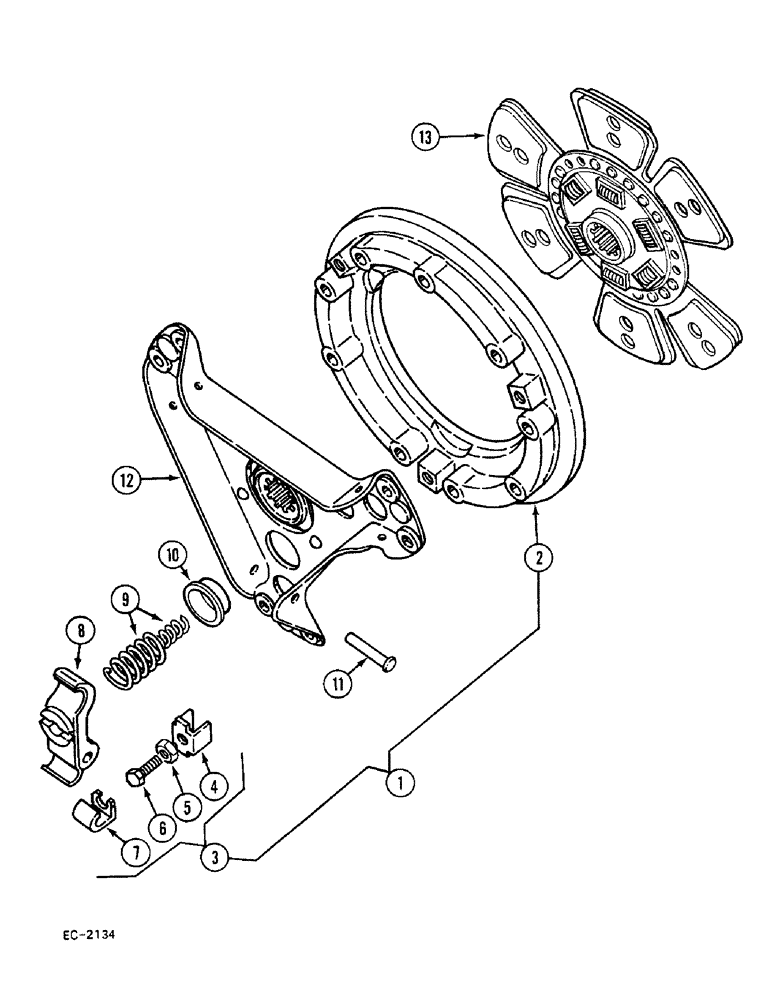

Запчасти Case 380B (6-152) - CLUTCH, 11 INCH LAYCOCK, PRIOR TO P.I.N. 18106 (06) - POWER TRAIN

92602C91

CLUTCH ASSEMBLY

COVER - clutch pressure plate assembly, Includes: Ref. 1 - 12

1шт.

1

92605C1

DISC

KIT - pressure plate assembly, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - pressure

1шт.

3

92607C1

PACKAGE

KIT - adjusting screw and clip, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

CLIP - lug

3шт.

5

NSS

NOT SOLD SEPARAT

LOCKNUT - adjusting screw

3шт.

6

NSS

NOT SOLD SEPARAT

SCREW - adjusting

3шт.

7

NSS

NOT SOLD SEPARAT

CLIP - return

3шт.

8

NSS

NOT SOLD SEPARAT

LEVER - release

3шт.

9

NSS

NOT SOLD SEPARAT

SPRING - pressure

3шт.

10

NSS

NOT SOLD SEPARAT

CUP - spring

3шт.

11

NSS

NOT SOLD SEPARAT

PIN - pivot

3шт.

12

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY

1шт.

Per the notes under P/N 92605C1, the bracket is not included in the kit and you must order the complete clutch P/N 92602C92 to get it.

1шт.

13

3121507R94

CLUTCH DISC

PLATE - clutch driven disc assembly

1шт.
