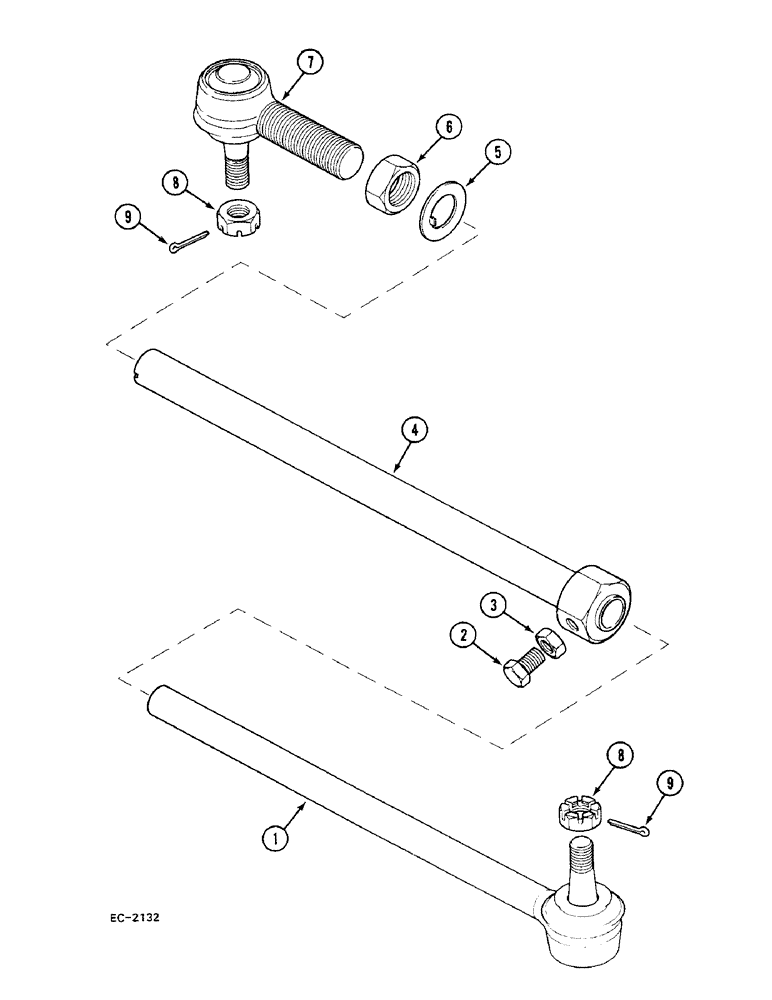

Запчасти Case 380B (5-148) - TIE ROD, ADJUSTABLE STRAIGHT FRONT AXLE (05) - STEERING

NSS

NOT SOLD SEPARAT

ASSEMBLY - tie rod, adjustable, Includes: Ref. 1 - 7

2шт.

1

3116406R3

BALL JOINT

SOCKET - outer

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW - set

1шт.

3

3116410R1

LOCK NUT

NUT - lock

1шт.

4

3116408R1

TUBE,20.75 mm ID, 28 mm OD, 412 mm Length

ROD - intermediate and riser assembly

1шт.

5

3116411R1

LOCK WASHER

- tab

1шт.

6

3116412R1

LOCK NUT

NUT - lock

1шт.

7

3116407R3

BALL JOINT

SOCKET - inner

1шт.

8

102648

SLOTTED NUT,9/16"-18, G5

2шт.

9

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.
