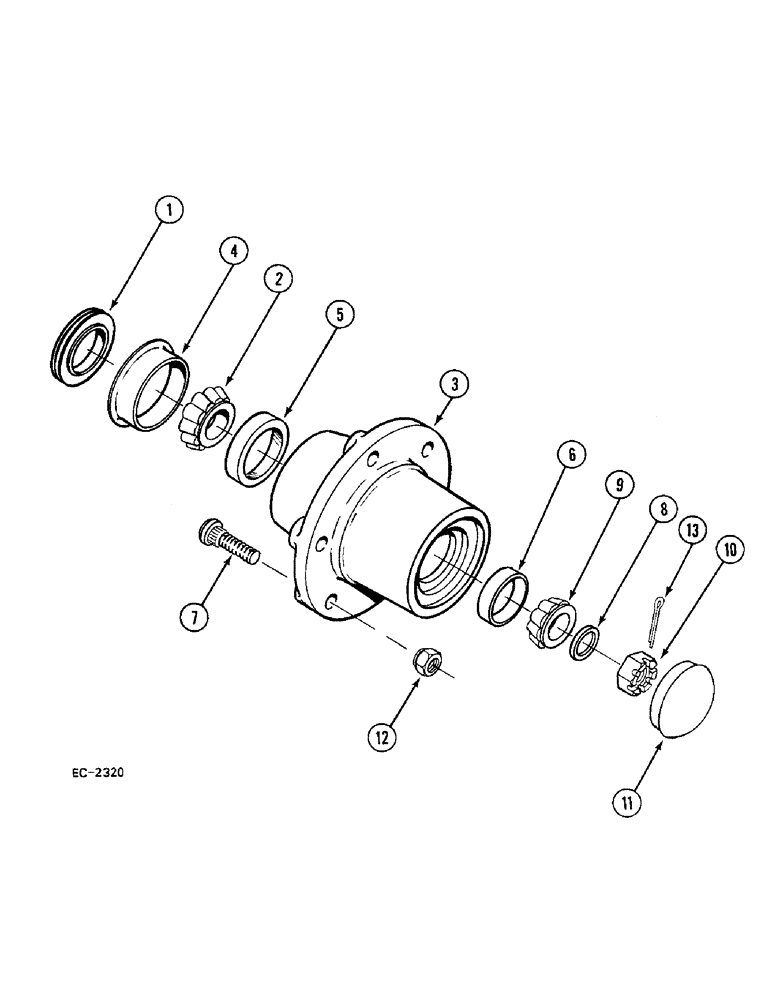

Запчасти Case 380B (5-144) - WHEEL HUBS AND CAPS, ADJUSTABLE STRAIGHT FRONT AXLE (05) - STEERING

1

405835R91

SEAL

- front wheel dust

2шт.

1

530104R91

SEAL

SEAL - front wheel dust, Serial Range: (Optional-405835R91)

2шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - cone inner

2шт.

2

371897R91

BEARING ASSY,1.315" ID x 2.5625" OD x 0.72"

BEARING - cone (Optional to 618023R91)

2шт.

3

406294R21

HUB ASSY.

HUB - front wheel, Includes: Ref. 4 - 7

2шт.

4

406295R2

RING

- wear

1шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

5

371898R1

BEARING, CUP

Inner, Serial Range: (Optional-618024R1)

1шт.

6

371883R1

BEARING CUP

Outer

1шт.

6

371908R1

BEARING CUP

Outer, Serial Range: (Optional-371883R1)

1шт.

7

528803R1

BOLT,1/2" - 20 x 1.75"

Mounting

6шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- outer bearing retainer

2шт.

9

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

2шт.

9

371907R91

ROLLER BEARING,0.8437" ID x 1.9687" OD x 0.72"

- cone, outer (Optional to 371882R91)

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

11

612884R1

HUB CAP

CAP - front wheel hub

2шт.

12

483879R2

SPECIAL NUT

- wheel

12шт.

13

108643

COTTER PIN,5/32" x 1 3/8"

PIN - cotter, 5/32 x 1-1/4 inch

2шт.
