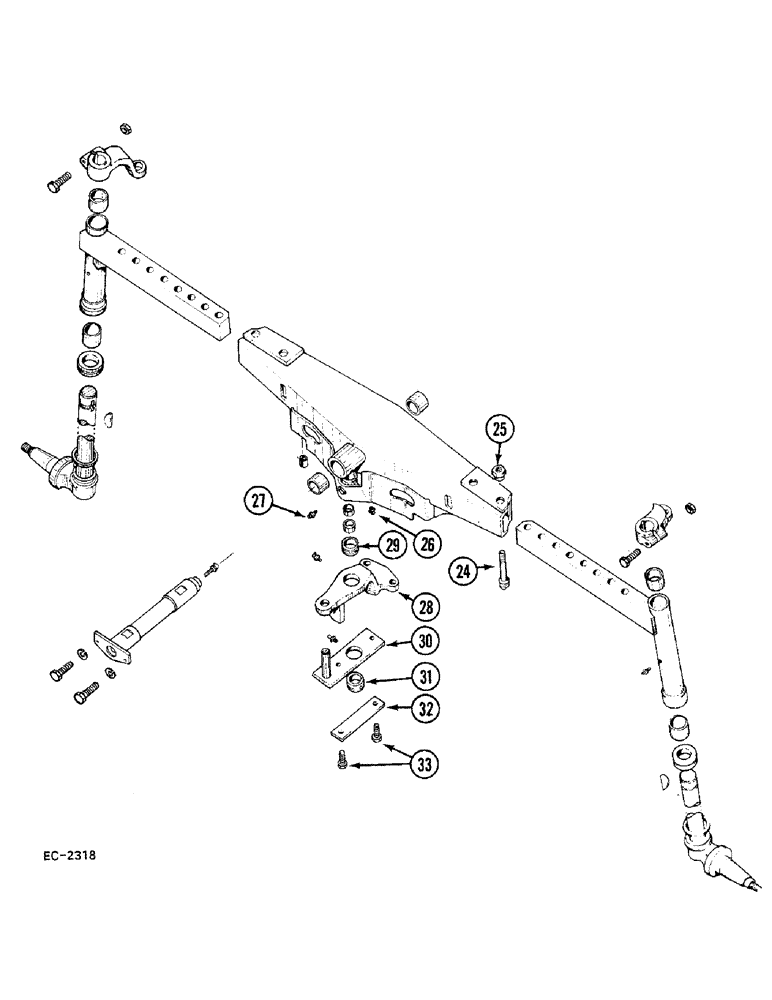

Запчасти Case 380B (5-138) - ADJUSTABLE FRONT AXLE, STRAIGHT, 52 TO 80 INCH TREAD, DRAWBAR AND LCG TRACTORS (CONTD) (05) - STEERING

24

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

25

405576R1

NUT

- front axle

4шт.

26

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, straight drive type, 1/4 inch

1шт.

27

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING - grease, 45 degree drive type, 1/4 inch

1шт.

28

67499C91

ARM ASSY.

ARM - centre, power steering, Includes: Ref. 29

1шт.

29

379748R1

BUSHING

1шт.

30

405580R1

BAR - power steering assembly, Includes: Ref. 31

1шт.

31

379748R1

BUSHING

1шт.

32

67976C1

PLATE, LOCKING

STRIP - steering centre arm lock bolt

1шт.

33

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.
