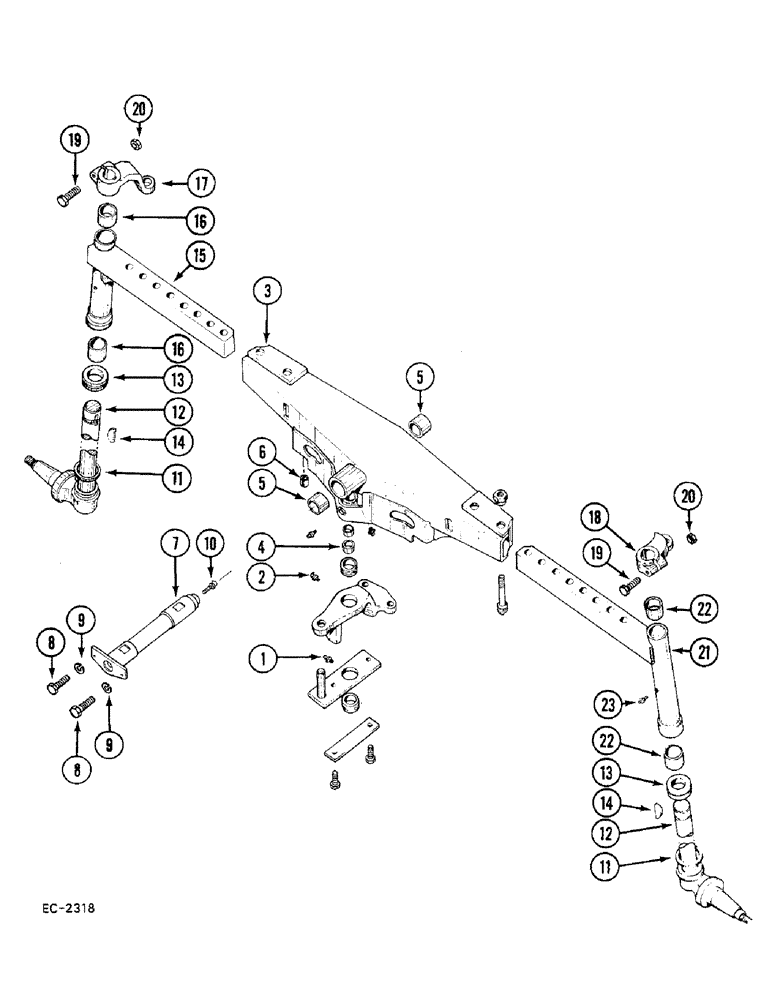

Запчасти Case 380B (5-136) - ADJUSTABLE FRONT AXLE, STRAIGHT, 52 TO 80 INCH TREAD, DRAWBAR AND LCG TRACTORS (05) - STEERING

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING - grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree drive type, 3/16 inch

1шт.

3

69881C92

FRONT AXLE

AXLE - front, centre section, Includes: Ref. 4 - 6

1шт.

4

405574R1

BUSHING

- cylinder mounting bracket

2шт.

4

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

-, Serial Range: (Optional-405574R1)

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

- pivot

2шт.

6

3125304R1

BUSHING

- spring steel

1шт.

7

539128R1

SHAFT ASSY.

SHAFT - front axle pivot

1шт.

8

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

9

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 PTF

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle pivot

2шт.

12

405840R12

KNUCKLE

- steering, low spindle, drawbar tractors, Includes: Ref. 13 - 14

2шт.

12

534288R92

KNUCKLE

- steering, low low spindle, LCG tractors, Includes: Ref. 13 - 14

2шт.

13

405831R91

BEARING

- thrust, steering knuckle

2шт.

13

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

BEARING -, Serial Range: (Optional-405831R91)

2шт.

13

369131R91

THRUST BEARING

-, Serial Range: (Optional-405831R91)

2шт.

14

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

15

67533C91

EXTENSION ASSY.

EXTENSION - front axle, right, low spindle, drawbar tractors, Includes: Ref. 16

1шт.

15

3116476R91

EXTENSION ASSY.

EXTENSION - front axle, right, low low spindle, LCG tractors, Includes: Ref. 16

1шт.

16

376099R1

BUSHING

2шт.

17

67525C1

ARM

- steering knuckle, right

1шт.

18

67524C1

ARM

- steering knuckle, left

1шт.

19

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

2шт.

20

102637

NUT,1/2"-13, G5

2шт.

21

67532C91

EXTENSION ASSY.

EXTENSION - front axle, left, low spindle, drawbar tractors, Includes: Ref. 22

1шт.

21

3116475R91

EXTENSION ASSY.

EXTENSION - front axle, left, low low spindle, LCG tractors, Includes: Ref. 22

1шт.

22

376099R1

BUSHING

2шт.

23

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING - grease, drive type, 1/4 inch

2шт.
