(5-130) - INTEGRAL HYDROSTATIC STEERING VALVE

Запчасти Case 380B (5-130) - INTEGRAL HYDROSTATIC STEERING VALVE (05) - STEERING

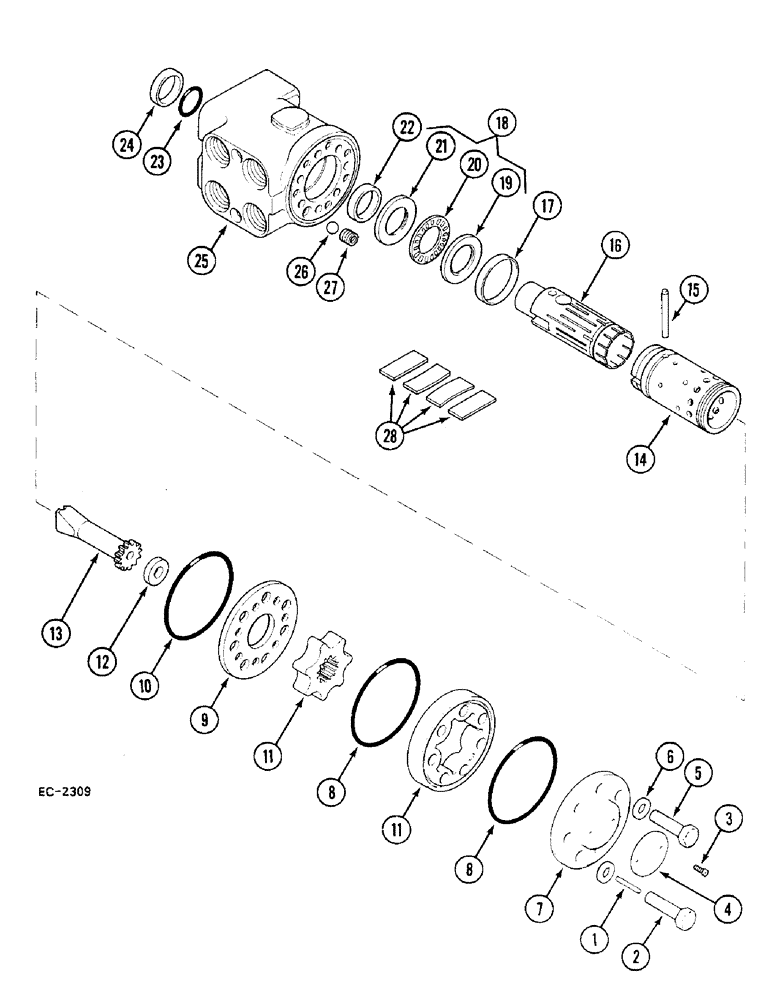

Схема запчастей Case 380B - (5-130) - INTEGRAL HYDROSTATIC STEERING VALVE (05) - STEERING
2
28
3
21
9
24
7
11
16
11
17
5
7
8
22
1
13
19
26
20
10
25
18
23
12
6
4
8
15
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

67698C93

VALVE

- integral power steering, Includes: Ref. 1 - 28, Serial Range: -18001

1шт.

1

3112271R1

PIN, ROLL

PIN - rolled

1шт.

2

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

- drilled

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - rating

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

- plain

6шт.

6

NSS

NOT SOLD SEPARAT

WASHER

7шт.

7

1500444C1

CAP

- end

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

2шт.

9

3112276R1

PLATE

- valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

11

538918R1

ROTOR ASSY.

SET - rotor

1шт.

12

538916R1

SPACER

1шт.

13

538915R1

DRIVE SHAFT

SHAFT - drive

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

15

3112269R1

PIN

- cross

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

17

3112246R1

RING

1шт.

18

3234338R91

BEARING SET

ASSEMBLY - bearing, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - axial

1шт.

22

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING

1шт.

24

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

26

3112270R1

BALL

- steel

1шт.

27

3112272R1

BUSHING

- threaded

1шт.

28

NSS

NOT SOLD SEPARAT

SPRING - leaf

1шт.

88107C91

PUMP

VALVE - integral, power steering, Start Serial: 18001

1шт.

1500443C91

SEAL KIT

PACKAGE - service, seal and spring (Consists of Ref. 6, 8, 10, 22 - 24 and 28) (Service valves 67698C93 and 88107C91)

1шт.
