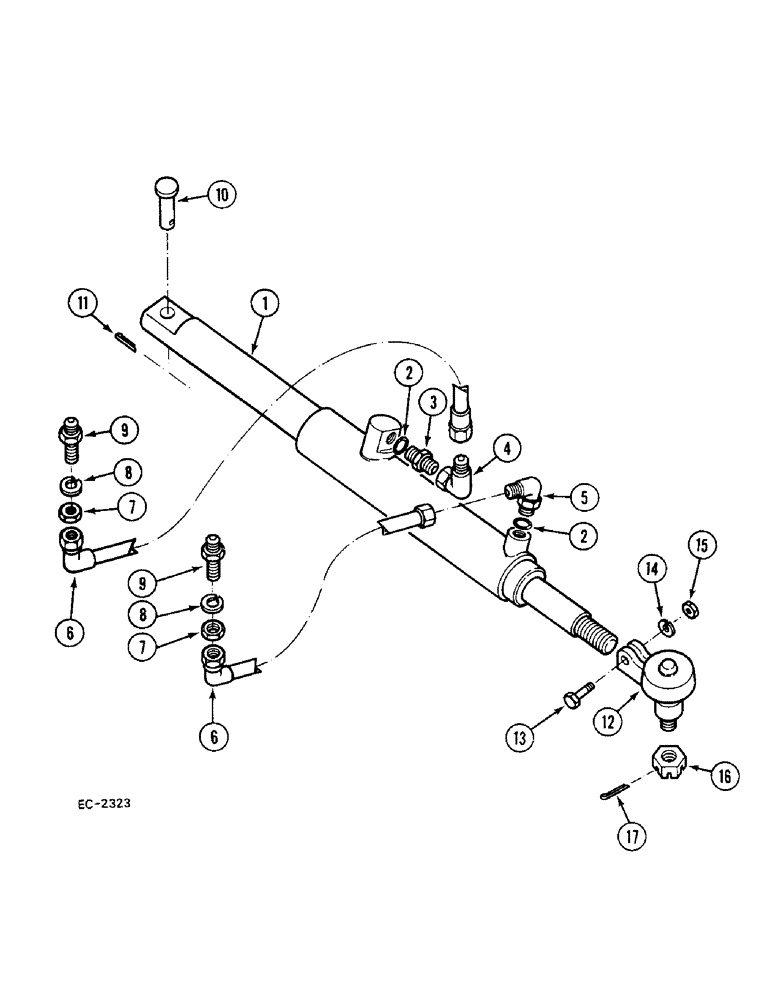

Запчасти Case 380B (5-128) - POWER STEERING TUBES AND HOSES, HEAVY DUTY CAST FRONT AXLE (05) - STEERING

1

3118502R92

CYLINDER

- power steering (See Figure 5-134)

1шт.

1

1954043C1

CYLINDER

- power steering (Optional to 3118502R92) includes service kit and lock wire

1шт.

1954053C1

SEAL KIT

- service, cylinder seals, to service 1954043C1

1шт.

1954141C1

ELECTRICAL WIRE

WIRE - lock, to service 1954043C1

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

3

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION - short, 3/8 inch OD tube

1шт.

4

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 45 degree, swivel, 3/8 inch OD tube

1шт.

5

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 3/8 inch OD tube

1шт.

6

3121235R1

HOSE

- power steering cylinder

2шт.

7

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - lock, bulkhead union, 3/8 inch

2шт.

8

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION - tube, bulkhead, 3/8 inch

2шт.

10

518505R1

HEADED PIN,3/4" x 3"

PIN - headed, 3/4 x 3 inch

1шт.

11

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

12

378817R91

BALL JOINT

END - power steering cylinder

1шт.

13

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

- hex, 3/8 NF x 1-3/4 inch

1шт.

14

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

120369

NUT,3/8"-24, G5

1шт.

16

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

- hex slotted, 7/8 inch NC

1шт.

17

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.
