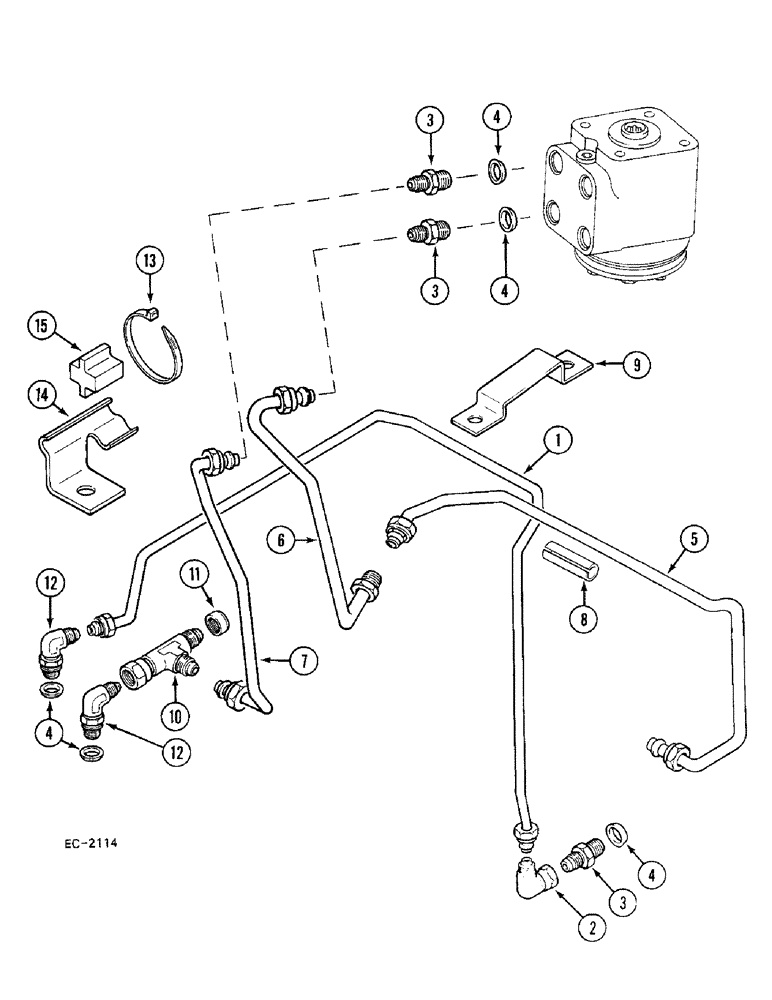

Запчасти Case 380B (5-126) - STEERING PIPES, REAR, FORWARD AND REVERSE TRANSMISSION, P.I.N. 18001 AND AFTER (05) - STEERING

1

99778C2

PIPE

TUBE - power steering return, rear

1шт.

2

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2 inch OD tube

1шт.

3

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - short, 1/2 inch OD tube

3шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

5шт.

5

99777C3

PIPE

TUBE - power steering pressure, rear

1шт.

6

99797C2

TUBE

- power steering pressure, front

1шт.

7

99798C1

PIPE

TUBE - power steering return, front

1шт.

8

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

9

99953C1

CLAMP

BRACKET - pipe retaining, as fitted

1шт.

10

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

UNION - tee, swivel, 1/2 inch OD tube

1шт.

11

9403372

CAP,37 Degree, 3/4"-16

- 1/2 inch OD tube

1шт.

12

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch tube

2шт.

13

306132R2

STRAP - cable

2шт.

14

529638R1

BRACKET

- rear manifold, as fitted

1шт.

15

529637R2

GUIDE

- manifold tube, as fitted

1шт.
