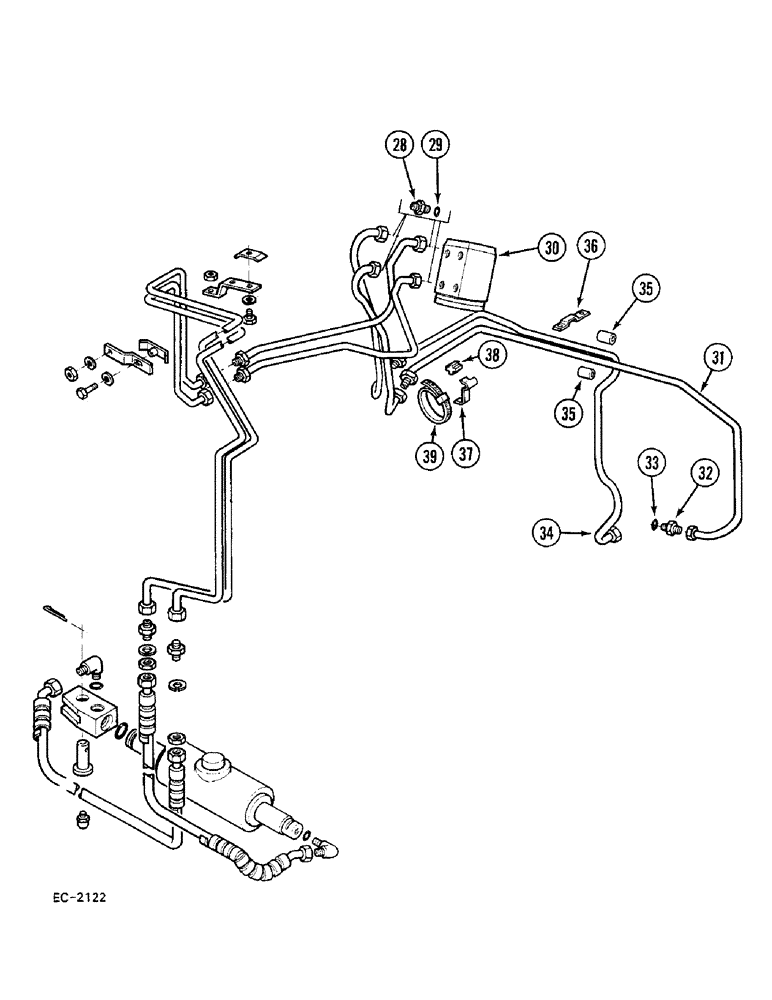

Запчасти Case 380B (5-120) - POWER STEERING, PRIOR TO P.I.N. 18001 (CONTD) (05) - STEERING

28

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch

4шт.

29

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

4шт.

30

67698C93

VALVE

- integral power steering

1шт.

31

1502293C1

TUBE

- power steering pressure, rear

1шт.

32

57577C1

CHECK VALVE

VALVE - check

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

34

3129257R1

TUBE ASSY.

TUBE - power steering return, rear

1шт.

35

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

36

3129261R1

BRACKET

- pipe retaining

1шт.

37

529638R1

BRACKET

- rear manifold

1шт.

38

529637R1

GUIDE

- manifold tube

1шт.

39

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle

2шт.
