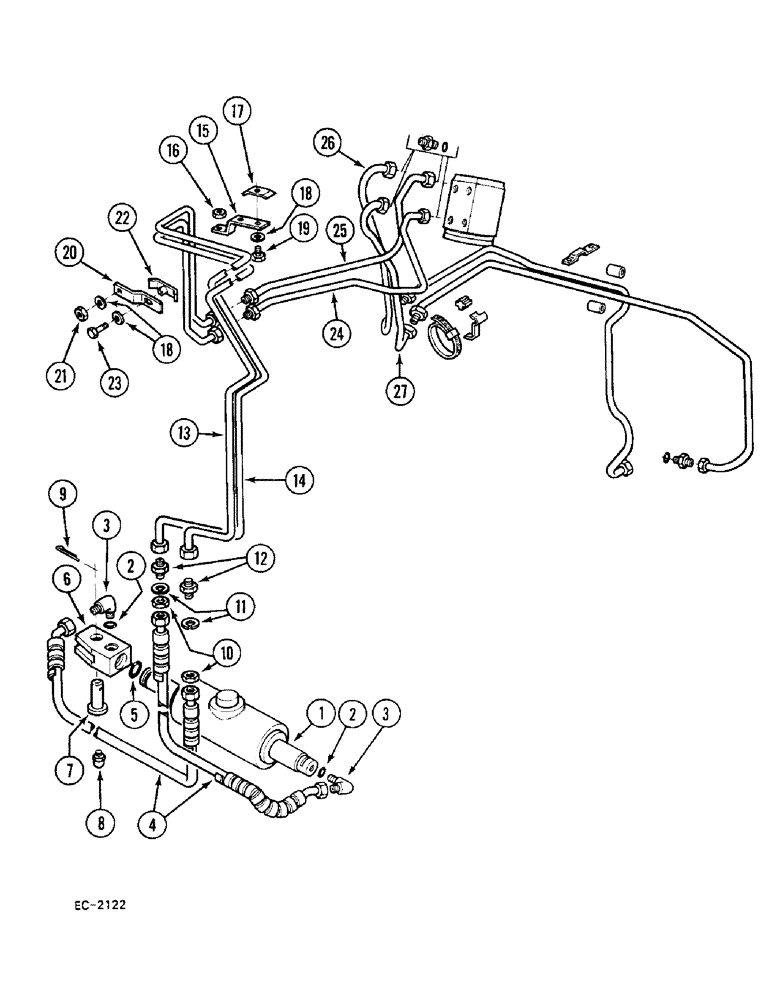

Запчасти Case 380B (5-118) - POWER STEERING, PRIOR TO P.I.N. 18001 (05) - STEERING

1

549667R92

STEERING CYLINDER

CYLINDER - power steering (See Figure 5-132) adjustable straight front axle

1шт.

84336125R

REMAN-HYD CYLINDER

380B BEFORE S/N JJE0001500 BSN JJE0001500 POWER STEERING, PRIOR TO P.I.N. 18001, Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

1

3118502R92

CYLINDER

- power steering (See Figure 5-134) heavy duty cast front axle

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 3/8 inch OD tube

2шт.

4

3121235R1

HOSE

- power steering cylinder

2шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, adjustable straight front axle

1шт.

6

3125306R1

CLEVIS,9/16" - 18

- cylinder end, adjustable straight front axle

1шт.

7

3125305R1

PIN

- power steering cylinder, adjustable straight front axle

1шт.

8

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - grease, short drive type, 3/16 inch, adjustable straight front axle

1шт.

9

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), , adjustable straight front axle 1/4" x 1 1/4"

1шт.

10

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - lock, bulkhead union, 3/8 inch

2шт.

11

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

12

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION - tube, bulkhead, 3/8 inch

2шт.

13

3121237R1

TUBE ASSY.

TUBE - power steering, right forward

1шт.

14

3121236R1

TUBE ASSY.

TUBE - power steering, left forward

1шт.

15

529646R1

BRACKET

- front manifold support

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

1шт.

17

529644R11

CLAMP

ASSEMBLY - tube clamp

1шт.

18

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

20

529642R1

BRACKET

- front manifold

1шт.

21

109084

NUT,1/4"-20, G5

1шт.

22

384891R11

CLAMP

- tube

1шт.

23

NLS

NO LONGER SERVICED

- hex, 1/4 NC x 7/8 inch

1шт.

24

3116268R3

TUBE ASSY.

TUBE - power steering, right rear

1шт.

25

3116267R1

TUBE ASSY.

TUBE - power steering, left rear

1шт.

26

3116272R2

TUBE ASSY.

TUBE - power steering return, front

1шт.

27

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

TUBE - power steering pressure, front

1шт.
