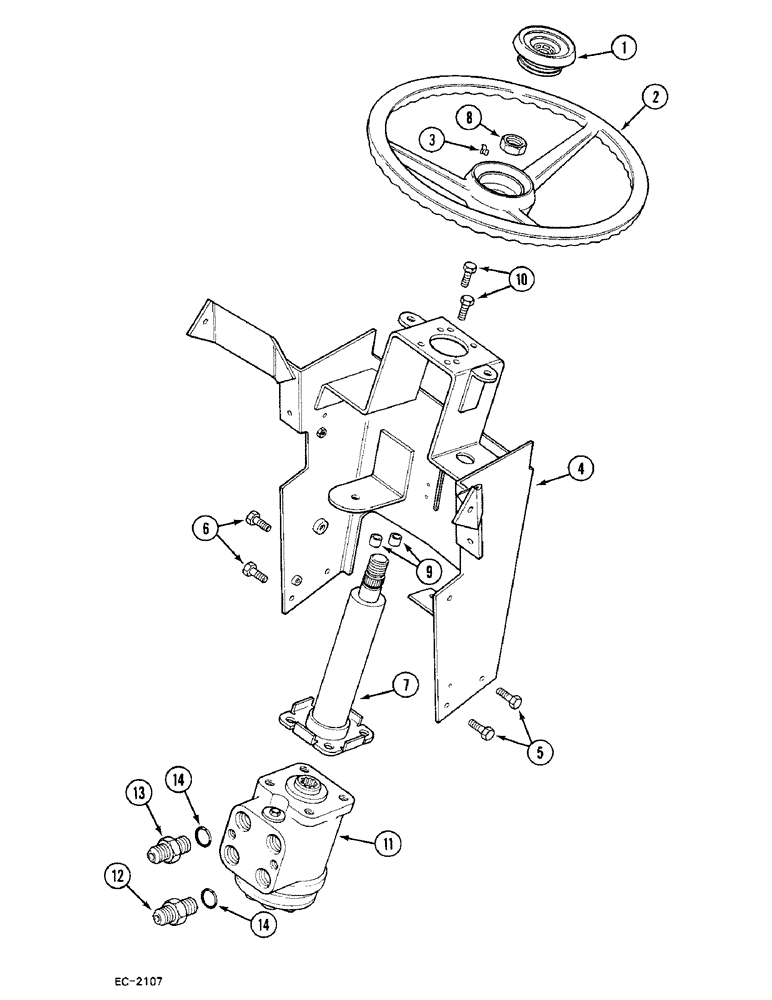

Запчасти Case 380B (5-116) - STEERING SUPPORT, VALVE AND POST (05) - STEERING

1

68837C2

CAP

- steering wheel

1шт.

2

3123597R91

HANDWHEEL

WHEEL - steering, 408 MM dia

1шт.

2

3123302R91

HANDWHEEL

WHEEL - steering, 408 MM dia, low dish, LCG tractors

1шт.

3

3123598R1

CLIP,ELECTRICAL

CLIP - retaining

1шт.

4

3121632R2

SUPPORT ASSY.

SUPPORT - steering, loader version

1шт.

4

3121632R2

SUPPORT ASSY.

SUPPORT - steering, Serial Range: -18001

1шт.

4

99968C1

STEERING SUPPORT

SUPPORT - steering, Start Serial: 18001

1шт.

5

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

7

3121187R91

SHAFT

- steering, Includes: Ref. 8

1шт.

8

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex, steering shaft

1шт.

9

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe, 3/8 x 1 inch

2шт.

10

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

11

67698C93

VALVE

- integral power steering (See Figure 5-130), Serial Range: -18001

1шт.

11

88107C91

PUMP

VALVE - integral, power steering, Start Serial: 18001

1шт.

12

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch, Serial Range: -18001

4шт.

13

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch, Start Serial: 18001

2шт.

13

410203

UNION - short, 1/2 inch OD tube, Start Serial: 18001

2шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

4шт.
