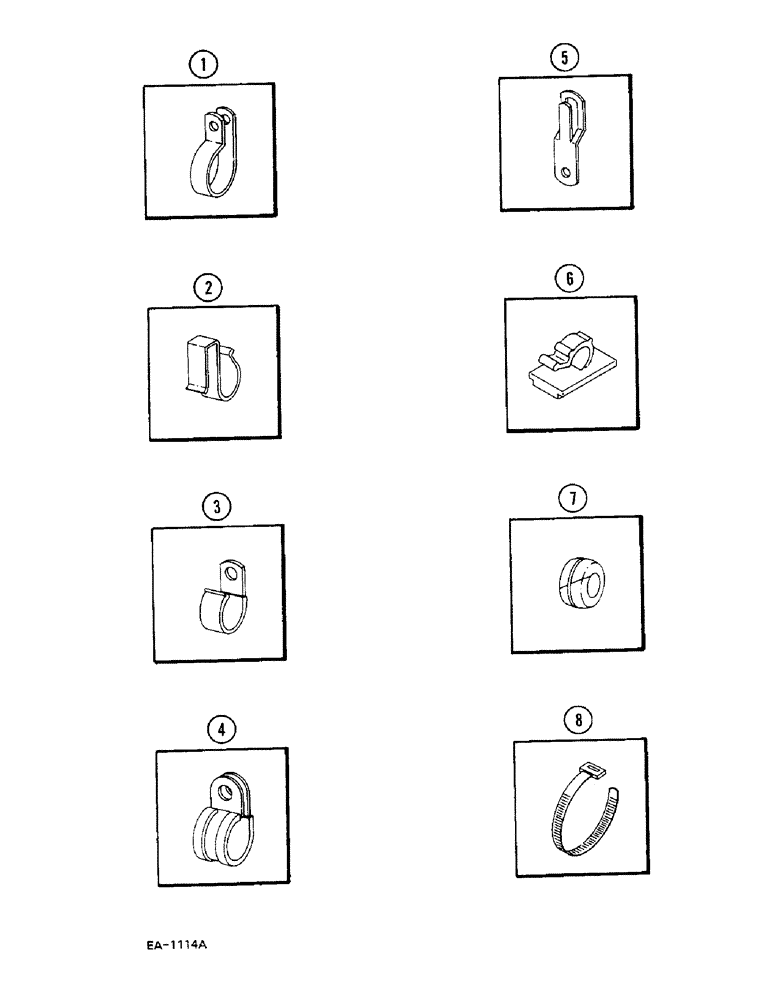

Запчасти Case 380B (4-114) - CLIPS, CLAMPS, STRAPS AND GROMMETS (04) - ELECTRICAL SYSTEMS

1

3116240R1

CLIP

- 0.56 diameter, closed (Battery cable)

1шт.

2

3116918R1

CABLE CLIP

CLIP - 0.25 max diameter, edge (Air cleaner top bracket)

1шт.

2

3123109R1

CABLE CLIP

CLIP - 0.35 max diameter, edge (Temperature sender cable)

1шт.

2

3125873R1

CLIP

- 0.374 max diameter, edge (Front grille cable)

2шт.

2

537024R1

CLIP

- 0.46 max diameter, edge (Radiator guard, left)

1шт.

2

537024R1

CLIP

- 0.46 max diameter, edge (Park brake - seat deck left)

1шт.

2

537024R1

CLIP

- 0.46 max diameter, edge (Front harness - grille support assembly left)

1шт.

2

537025R1

CLIP

- 0.55 max diameter, edge (Brake cylinder bracket)

1шт.

2

3113490R1

CLIP

- 0.55 max diameter, edge (Steering support left channel)

1шт.

2

3113490R1

CLIP

- 0.55 max diameter, edge (Master cylinder bracket)

1шт.

2

535303R1

CABLE CLIP

CLIP - 0.95 max diameter, edge

1шт.

3

366460R1

CABLE CLIP

CLIP - 0.25 diameter, open (Front cover, rear right)

1шт.

3

366460R1

CABLE CLIP

CLIP - 0.25 diameter, open (Light harness)

2шт.

3

316433C1

CLAMP

CLIP - 0.50 diameter, open (Main harness)

1шт.

3

100770H

CLIP

- 0.31 diameter, open (Grille shroud, left)

1шт.

3

100770H

CLIP

- 0.31 diameter, open (Grille tie bar, left)

1шт.

4

3125823R1

CLIP

- 0.75 diameter

1шт.

5

708115R1

PLATE ASSY.

CLIP - spring type

1шт.

6

1500496C1

CABLE CLIP

CLIP - cable, 3.0 MM diameter

1шт.

7

531625R1

GROMMET

- (Left and right fenders)

2шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle (Steering support, left top)

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle (Main harness - instrument shroud)

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle (Battery cable)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle (Full line)

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle (Battery support)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle (Steering support)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle (Fuel shutoff control)

1шт.
