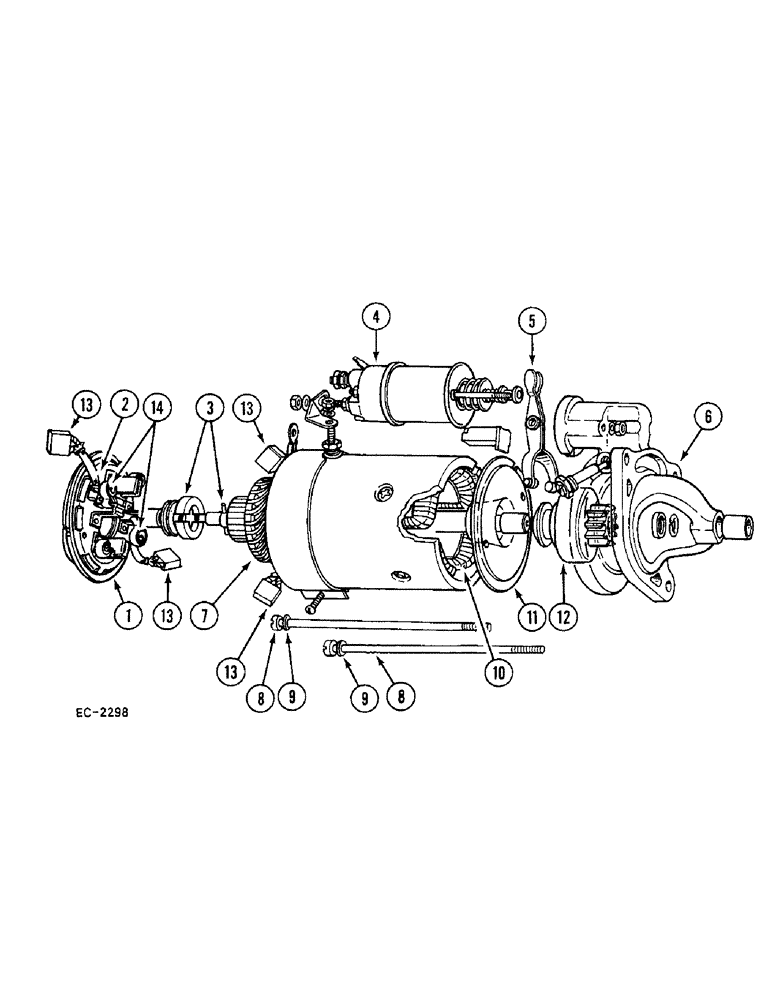

Запчасти Case 380B (4-108) - STARTER MOTOR, LUCAS (04) - ELECTRICAL SYSTEMS

537140R95

STARTER MOTOR

MOTOR - starting, Lucas no. 27508B, model M127/28, Includes: Ref. 1 - 14, sundry parts kit, retention kit and sealing kit

1шт.

87297312

REMAN-STARTER

Starter; For N.A. only

1шт.

87297313

CORE-STARTER

Return number - For N.A. only

1шт.

1

3206511R91

BRACKET

KIT - bracket assembly

1шт.

2

3113026R91

PLATE ASSY.

PLATE - brush mounting

1шт.

3

3206531R91

BRAKE PACKAGE

KIT - brakes

1шт.

4

84060C1

SOLENOID SWITCH

SWITCH - solenoid

1шт.

5

84061C1

KIT

LEVER - solenoid engaging

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - end mounting

1шт.

7

84059C1

ARMATURE

ARMATURE

1шт.

8

3129088R1

BOLT

BOLT - through

2шт.

9

3129089R1

WASHER

WASHER - spring

2шт.

10

84058C1

KIT

KIT - field coils

1шт.

11

3119902R91

SUPPORT

BRACKET - intermediate

1шт.

12

84209C1

DRIVE ASSY.

ASSEMBLY - drive

1шт.

13

3118371R91

BRUSH, COMMUTATOR

BRUSH KIT - brushes

1шт.

14

3206523R91

SPRING KIT

KIT - brush springs

1шт.

3206529R91

KIT

KIT - sundry parts (Not illustrated)

1шт.

78986C1

PACKAGE

KIT - retention (Not illustrated)

1шт.

3206528R91

SEAL KIT

KIT - sealing (Not illustrated)

1шт.

87297318

REMAN-STARTER

Remanufactured STARTER - NA Only

1шт.

87297319

CORE-STARTER

Return number - For N.A. only

1шт.
