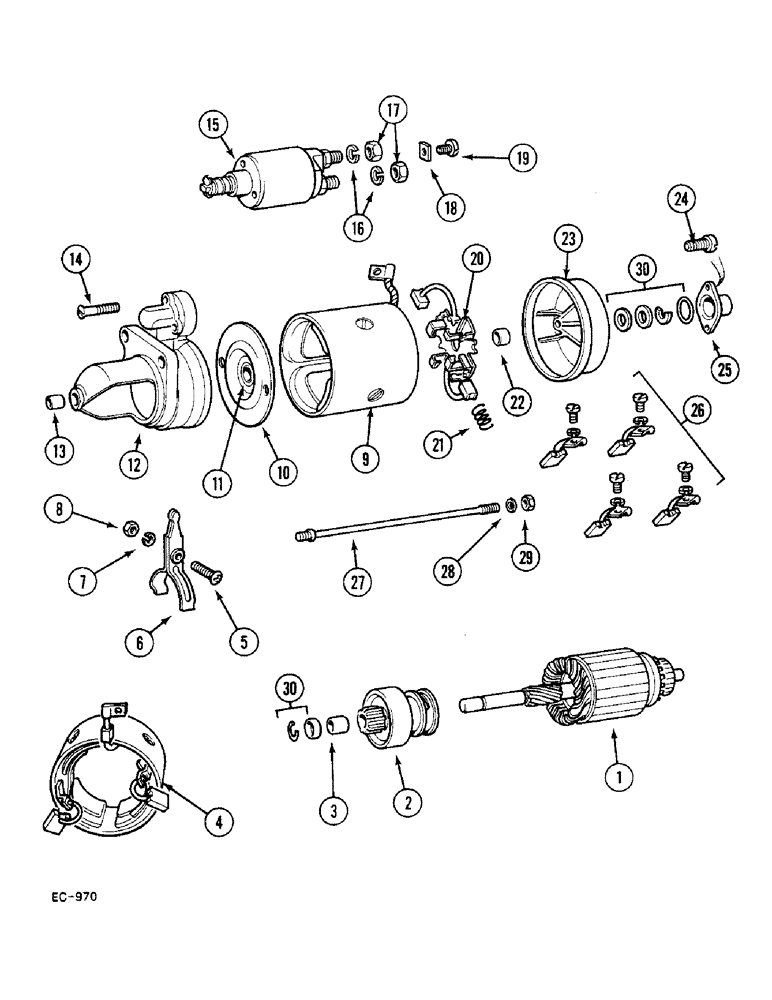

Запчасти Case 380B (4-106) - STARTER MOTOR, BOSCH (04) - ELECTRICAL SYSTEMS

529965R93

STARTING MOTOR

MOTOR - starting, Bosch, Includes: Ref. 1 - 30

1шт.

87297312

REMAN-STARTER

Starter; For N.A. only

1шт.

87297313

CORE-STARTER

Return number - For N.A. only

1шт.

1

3079252R1

ARMATURE

ARMATURE

1шт.

2

3129631R1

DRIVE ASSY.

ASSEMBLY - drive

1шт.

3

3079254R1

BUSHING

BUSHING - drive assembly

2шт.

4

3079356R1

COIL

COIL - field winding, 1 to 4 complete

1шт.

5

3079251R1

BOLT

SCREW - engaging lever pivot

1шт.

6

3078965R1

LEVER

FORK - clutch drive

1шт.

7

3079166R1

SPRING WASHER,M8.4 ID x 15 OD x .8 Thk

WASHER - lock, 8 MM

1шт.

8

43362

NUT,M8 x 1.25, Cl 10

NUT, M8, Cl 10

1шт.

9

3129639R1

SCREW

SCREW - field coil

4шт.

10

3079253R1

BALL BEARING

BEARING - intermediate

1шт.

11

3078967R1

BUSHING

BUSHING - bearing

1шт.

12

3129633R1

HOUSING

HOUSING - drive end

1шт.

13

3055738R1

BUSHING

BUSHING - drive end bearing

1шт.

14

3078974R1

SCREW

SCREW - solenoid fixing

3шт.

15

3078963R1

SOLENOID SWITCH

SWITCH - solenoid

1шт.

16

934075R1

LOCK WASHER,M10

LOCK WASHER, M10

2шт.

17

100016

NUT,M10 x 1.5, Cl 8

NUT, M10, Cl 8

2шт.

18

3132763R1

TERMINAL CONNECTOR

CLAMP - terminal

1шт.

19

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

SCREW - machine slotted, M4 x 6 MM

1шт.

20

3079174R1

HOLDER

HOLDER - brush

1шт.

21

3079420R1

SPRING

SPRING - compression, brush

4шт.

22

3079170R1

BUSHING

BUSHING - commutator end

1шт.

23

3129632R91

END ASSY.

FRAME - commutator end

1шт.

24

3079426R1

SCREW

SCREW - fillister head, 5/16 inch

2шт.

25

3079177R1

CAP

CAP - commutator end bracket

1шт.

26

3079359R1

KIT

SET - brush

1шт.

27

3079172R1

STUD

STUD - thru fixing

2шт.

28

3079176R1

WASHER

WASHER - plain, thru fixing stud

2шт.

29

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

NUT - hex, M6

2шт.

30

3079173R91

KIT

PACKAGE - terminal parts

1шт.

87297318

REMAN-STARTER

Remanufactured STARTER - NA Only

1шт.

87297319

CORE-STARTER

Return number - For N.A. only

1шт.
