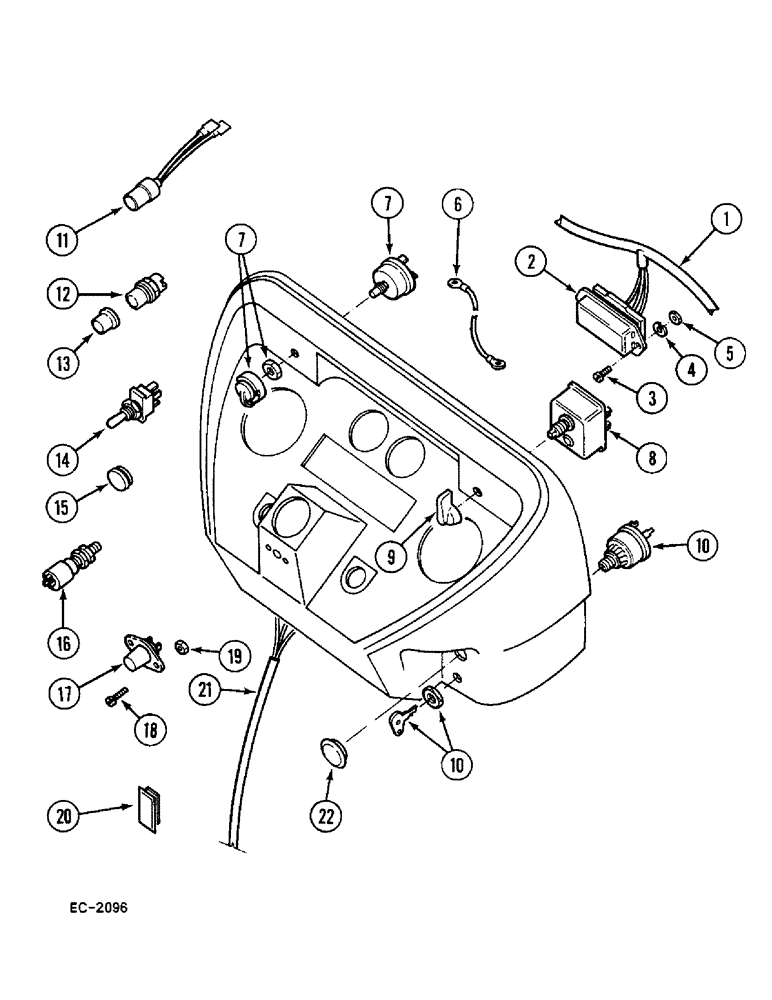

Запчасти Case 380B (4-094) - INSTRUMENT PANEL WIRING AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

1500563C95

HARNESS

- main cable, Includes: Ref. 2

1шт.

1

1332880C1

HARNESS

- main cable, oil pressure gauge and ammeter fit, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

BOX - fuse

1шт.

3

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

2шт.

4

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

6

3123431R1

CABLE

- tachometer to fuel gauge earth

1шт.

7

107200C2

LIGHT SWITCH

SWITCH - rotary, basic lighting

1шт.

8

131066C91

SWITCH

- turn signal and flasher, Includes: Ref. 9

1шт.

9

71485C1

PACKAGE

KIT - switch handle and hardware

1шт.

10

529800R91

SWITCH ASSY

SWITCH - ignition, with key; Use With K962338 Key, Which Replaces 3110259R1 Key

1шт.

Key is P/N K962338.

1шт.

11

3125984R1

FLASHER UNIT

UNIT - flasher, park brake warning

1шт.

12

705266R1

SWITCH

- horn

1шт.

13

1288026C1

COVER

- horn switch

1шт.

14

3125854R1

SWITCH

- headlight dip

1шт.

14

3121406R1

SWITCH

- headlight dip, Serial Range: (Optional-3125854R1)

1шт.

15

3113429R1

PLUG

- blanking (TA control)

1шт.

16

92161C2

PARK BRAKE SWITCH

SWITCH - push button, park brake warning

1шт.

17

397940R93

SWITCH

- push button, ether start

1шт.

18

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW - pan slotted, no. 10 x 3/8 inch

2шт.

19

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

20

245918C1

LENS

PLUG - blanking (MFD switch)

1шт.

21

1500963C1

HARNESS

- instrument

1шт.

22

538240R1

PLUG

- blanking (Cigarette lighter)

1шт.
