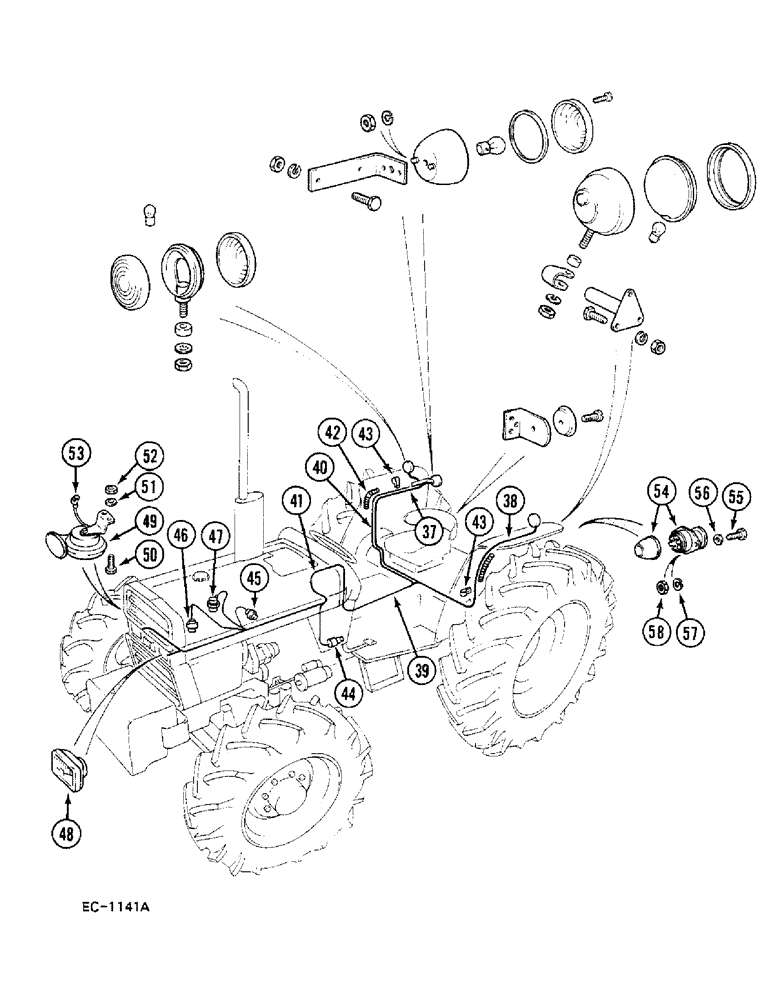

Запчасти Case 380B (4-090) - CHASSIS WIRING, LIGHTS AND SWITCHES (CONTD) (04) - ELECTRICAL SYSTEMS

37

3123678R2

HARNESS

- fender, right

1шт.

38

3123677R1

HARNESS

- fender, left

1шт.

39

92063C1

HARNESS

- tail light panel

1шт.

40

92064C1

HARNESS

- tail and stop light

1шт.

41

1500563C95

HARNESS

- main cable

1шт.

41

1332880C1

HARNESS

- main cable, oil pressure gauge and ammeter fit

1шт.

42

1280346C1

CONDUIT

INSULATION - convolute conduit (Use with ROPS)

1шт.

43

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness

6шт.

44

121629C2

SWITCH

- neutral starting (See Figure 4-100)

1шт.

45

91450C1

SWITCH, PRESSURE

SWITCH - oil pressure, engine

1шт.

46

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator

1шт.

47

3073787R91

TRANSMITTER

- water temperature, AC Delco (Use with AC Delco gauge 3121240R1)

1шт.

47

3127956R1

TEMPERATURE SENDER

TRANSMITTER - water temperature, Icknield (Use with Icknield gauge 3127959R1)

1шт.

48

A139458

LAMP

- head, vertical low (See Figure 4-98)

2шт.

49

3121205R91

HORN

1шт.

50

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

51

120392

WASHER,1/4", SAE

- flat, 1/4 inch

2шт.

52

3119440R1

LOCK NUT

- self-locking, 1/4 inch NC

2шт.

53

3117533R1

CABLE

-, Serial Range: horn-earth

1шт.

54

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR - socket, 7 Pin

1шт.

55

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

2шт.

56

120393

BEARING WASHER,5/16", SAE

WASHER - plain, 5/16 inch

2шт.

57

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

58

19296R1

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
