Запчасти Case 380B (4-088) - CHASSIS WIRING, LIGHTS AND SWITCHES (04) - ELECTRICAL SYSTEMS

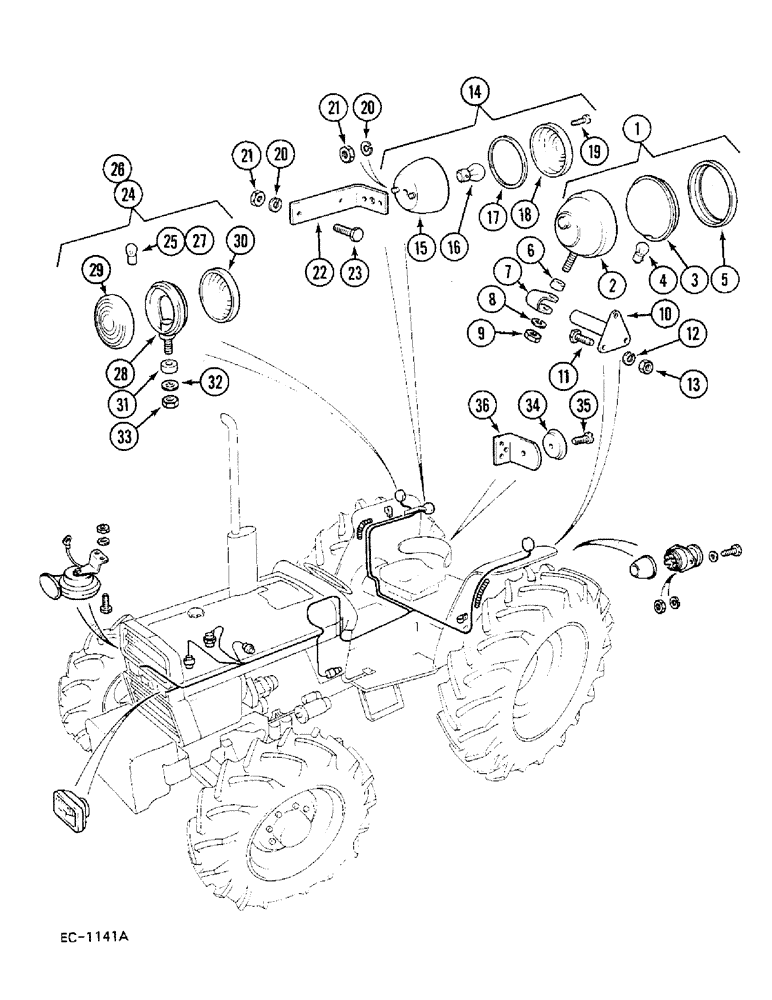

Схема запчастей Case 380B - (4-088) - CHASSIS WIRING, LIGHTS AND SWITCHES (04) - ELECTRICAL SYSTEMS
31
30
15
26
22
2
20
3
11
36
17
8
7
35
33
1
24
19
28
32
20
10
21
14
6
21
23
12
13
4
9
18
25
16
29
5
34
27

Артикул

Название

Примечание

Количество

1

387729R92

LIGHT ASSY.

LIGHT - combination stop and tail, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

3

80627C1

LIGHT ASSY.

LAMP - sealed beam (Includes bulb)

1шт.

4

142456

BULB

LAMP - type C-6, trade no. 1141

1шт.

5

676078R1

RETAINER

- light, shockproof

1шт.

6

365503R1

SPACER

- combination light

1шт.

7

350920R1

CLAMP

- combination light

1шт.

8

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

10

401471R1

POST

- combination light

1шт.

11

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch

3шт.

12

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

120377

NUT,3/8" - 16, Gr 5

3шт.

14

967696R94

LAMP

LIGHT - combination stop and tail, Includes: Ref. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

16

9417867

BULB,C6, #1157, 12.8V

LAMP - type C-6 trade no. 1157

1шт.

17

81714R1

GASKET

1шт.

18

157729R1

LENS

1шт.

19

132764

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- round slotted, machine no. 8 x 5/8 inch

2шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21

120376

NUT,5/16"-18, G5

4шт.

22

92053C1

SUPPORT

- combination tail/stop light

1шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

24

67538C92

HEADLIGHT

LIGHT - flasher (U.S. option) Includes: Ref. 25

2шт.

25

9417866

BULB,C6, #1156, 12.8V

LAMP - type C-6, trade no. 1156

1шт.

26

3123675R93

HEADLIGHT

LIGHT - flasher (Optional to 67538C92) Includes: Ref. 27 - 33

2шт.

27

3025210R91

BULB

LAMP - 12V/21W

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - flasher light

1шт.

29

3112682R1

LENS

- amber, front

1шт.

30

3112683R1

LENS

- amber, rear

1шт.

31

899282R1

O-RING

- rubber sealing

2шт.

32

131718

SHIM

- lock, internal tooth, 7/16 inch

1шт.

33

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

34

3118665R1

REFLECTOR

- red

2шт.

35

171656

SCREW

- pan slotted, tapping, no. 6 x 1/2 inch

2шт.

36

3125247R3

BRACKET

- reflector

2шт.

Выбрано товаров: 36
