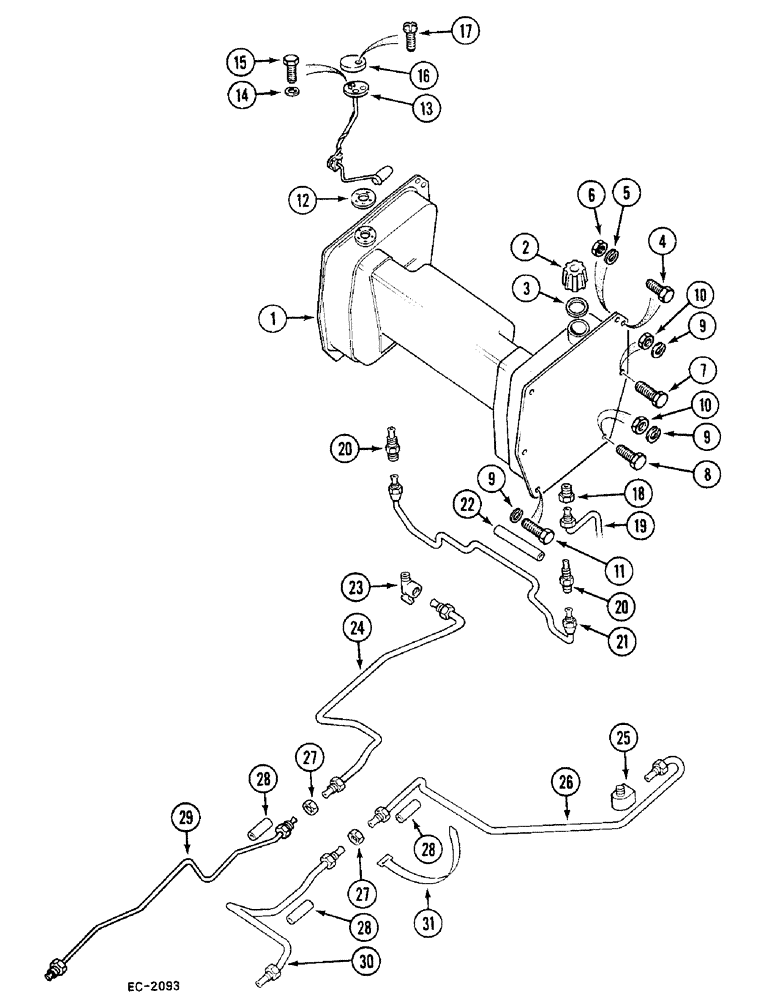

Запчасти Case 380B (3-86) - FUEL TANK (03) - FUEL SYSTEM

1

536035R93

FUEL TANK

TANK - fuel, with filler cap, Includes: Ref. 2 - 3

1шт.

2

536845R1

PLUG

CAP - fuel tank filler

1шт.

2

538063R1

PLUG

CAP - filler, Serial Range: (Optional-536845R1)

1шт.

3

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

- fuel tank filler cap

1шт.

4

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch

4шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

120377

NUT,3/8" - 16, Gr 5

4шт.

7

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

2шт.

8

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

10

120376

NUT,5/16"-18, G5

8шт.

11

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex 5/16 NC x 3/4 inch

2шт.

12

528359R1

GASKET

- sending unit

1шт.

13

529790R1

SENDER UNIT

TRANSMITTER - fuel gauge, AC Delco (Use with AC Delco gauge 3121239R1)

1шт.

Ref. 13, 529790R1 is not available and the sub for the gauge 3129840R1 that works with the new sender 3129841R91 is round and won't fit the dash. Service Bulletin S4364 suggests the sub, but it won't fit the unit.

1шт.

13

3129841R91

FUEL GAUGE

TRANSMITTER - fuel gauge, Icknield (Use with Icknield gauge 3129840R1)

1шт.

14

533199R1

SEALING WASHER

- sending unit cover

4шт.

14

796002R1

COPPER WASHER

WASHER - copper

1шт.

15

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

BOLT - hex, machine no. 10 x 1/2 inch,Course threads

4шт.

15

451625

SCREW

- hex, machine no. 10 x 1/2 inch

1шт.

16

528360R2

COVER

- sending unit

1шт.

17

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

- phillips pan, machine no. 10 x 3/8 inch

1шт.

18

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

CONNECTOR - flared tube, 5/16 inch, underslung exhaust, Serial Range: -18001

1шт.

19

539938R1

VENTILATION PIPE

TUBE - tank breather, underslung exhaust, Serial Range: -18001

1шт.

20

1502069C1

PIPE

- clearance

2шт.

21

1502067C1

TUBE ASSY.

TUBE - crossover

1шт.

22

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer 0.31" ID x 10.00"

1шт.

23

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

- shut-off

1шт.

24

3121561R1

TUBE ASSY.

TUBE - union to shut-off valve

1шт.

25

137422

ELBOW

- 90 degree, rear fuel return tube

1шт.

26

3129262R1

PIPE

TUBE - fuel return, rear

1шт.

27

442337

NUT

UNION - inverted flared tube, 5/16 inch

2шт.

28

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

3шт.

29

3116238R3

PIPE,787.4, 142.24 mm Length

- union to filler

1шт.

30

3112790R1

PIPE

- fuel return, front

1шт.

31

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle

3шт.
