(3-78) - FUEL INJECTION PUMP, VA, BOSCH VA INJECTION PUMP (CONTD)

Запчасти Case 380B (3-78) - FUEL INJECTION PUMP, VA, BOSCH VA INJECTION PUMP (CONTD) (03) - FUEL SYSTEM

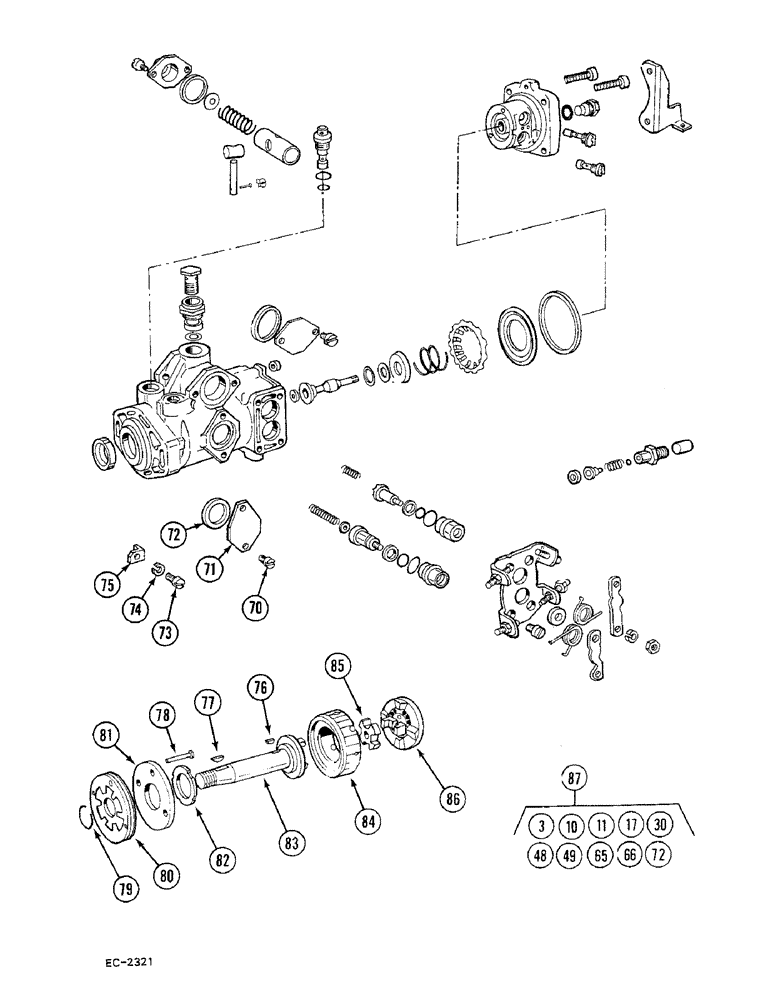

Схема запчастей Case 380B - (3-78) - FUEL INJECTION PUMP, VA, BOSCH VA INJECTION PUMP (CONTD) (03) - FUEL SYSTEM
72
73
74
75
11
87
66
17
10
71
70
81
86
48
30
49
83
84
3
79
76
78
82
80
77
72
65
85
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3144222R93

PUMP, FUEL INJECTION

PUMP - fuel injection (VA 3/100H 1090 CR43/3) (Continued from Figure 3-76) Includes: Ref. 70 - 86

1шт.

70

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, pan head, M6 x 12 MM

2шт.

71

3078486R1

COVER

- timing window

1шт.

72

3078485R1

RING

- packing, timing window cover

1шт.

73

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

- pan head, machine, M4 x 5 MM

1шт.

74

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 MM

1шт.

75

3132598R1

INDICATOR

POINTER - timing

1шт.

76

3132395R1

KEY

- Woodruff

1шт.

77

3079101R1

WOODRUFF KEY

KEY - Woodruff

1шт.

78

3078477R1

BOLT,CSK

- supporting ring

2шт.

79

3078474R1

RING

- retaining

1шт.

80

3078475R91

PUMP

- charge

1шт.

81

3078476R1

RING

- support, charge pump

1шт.

82

3078479R1

THRUST WASHER

- thrust roller retainer

1шт.

83

3078473R1

SHAFT

- drive

1шт.

84

3078550R91

PUMP

RETAINER - roller assembly

1шт.

85

3059007R1

DISC

- cam face, cross type

1шт.

86

3078696R1

CAM

- face

1шт.

87

3078526R91

GASKET KIT

PACKAGE - gasket, injection pump

1шт.
