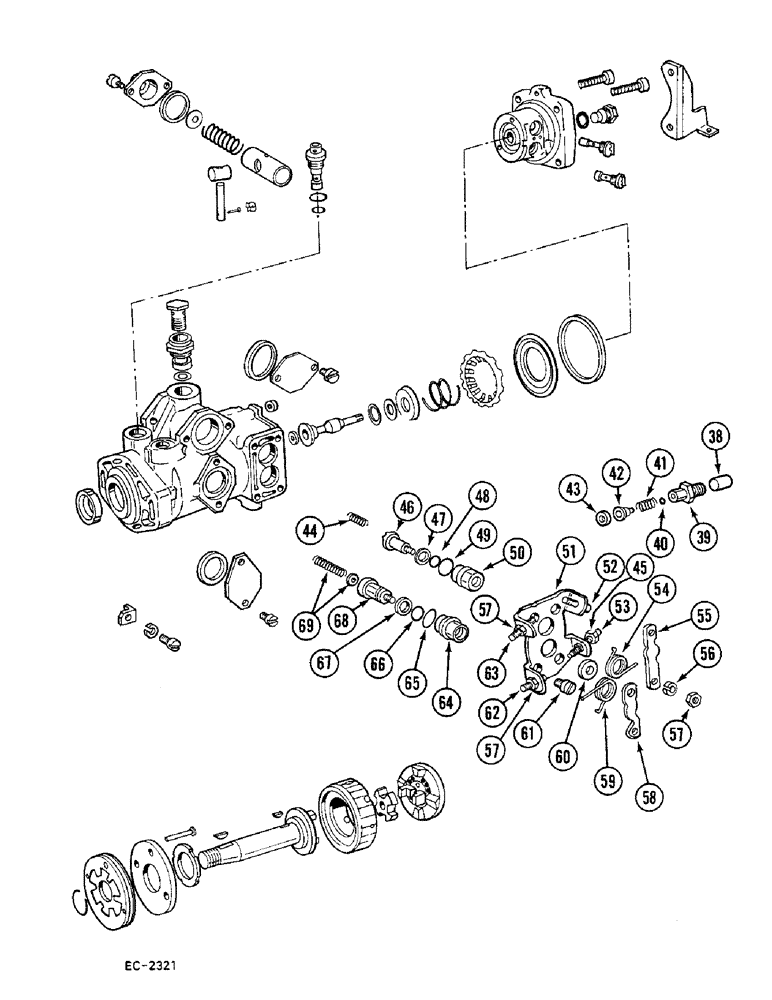

Запчасти Case 380B (3-76) - FUEL INJECTION PUMP, VA, BOSCH VA INJECTION PUMP (CONTD) (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
3144222R93
PUMP, FUEL INJECTION
PUMP - fuel injection (VA 3/100H 1090 CR43/3) (Continued from Figure 3-74) Includes: Ref. 38 - 69
1шт.
38
3079097R2
CAP
- protection
3шт.
39
3059067R2
HYD CONNECTOR
HOLDER - delivery valve
3шт.
40
3059066R1
WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk
- delivery valve
3шт.
41
3132408R1
SPRING
- delivery valve
3шт.
42
3059064R1
VALVE
- delivery
3шт.
43
3079378R1
WASHER
- delivery valve
3шт.
44
3078555R1
SPRING
- throttle
1шт.
45
3079141R1
NUT
- hex, stop screw
1шт.
46
3078517R1
SHAFT
- throttle
1шт.
47
3078519R1
WASHER
- throttle shaft
1шт.
48
3078354R1
O-RING,2mm Thk x 6.5mm ID
- throttle shaft
1шт.
49
785602R1
O-RING
- control plunger and throttle shaft bushing
1шт.
50
3078556R1
BUSHING
- throttle shaft
1шт.
51
3078557R1
PLATE
- stop
1шт.
52
3132885R1
BOLT
- stop
1шт.
53
3132251R1
STOP LOCK
SCREW - stop
1шт.
54
3132588R1
SPRING
- torsion throttle shaft
1шт.
55
3132590R1
LEVER
- throttle
1шт.
55
3132591R1
LEVER
- throttle, Serial Range: (Optional-3132590R1)
1шт.
56
933987R1
LOCK WASHER,M6
WASHER - lock, 6 MM, throttle + control lever plunger
2шт.
57
86500688
NUT,Hex, M6 x 1.0, Cl 10.9
- hex, M6
4шт.
58
3059077R1
LEVER
- control plunger
1шт.
58
3059078R1
LEVER
- control plunger, Serial Range: (Optional-3059077R1)
1шт.
59
3132589R1
SPRING
- torsion control plunger shaft
1шт.
60
3059076R1
WASHER
- control plunger shaft
1шт.
61
931320R1
SCREW,M6 x 12mm, Cl 8.8
- flat head, M6 x 12 MM
4шт.
62
3059074R1
SCREW
- stop
1шт.
63
3136136R1
SCREW
- stop
1шт.
64
3078524R1
BUSHING
1шт.
65
785602R1
O-RING
- control plunger and throttle shaft bushing
1шт.
66
3078363R1
O-RING
- control plunger shaft
1шт.
67
3078523R1
WASHER
- control plunger shaft
1шт.
68
3078521R1
SHAFT
- control plunger
1шт.
69
3078610R1
PACKAGE
KIT - service, control plunger spring
1шт.
Выбрано товаров: 35
