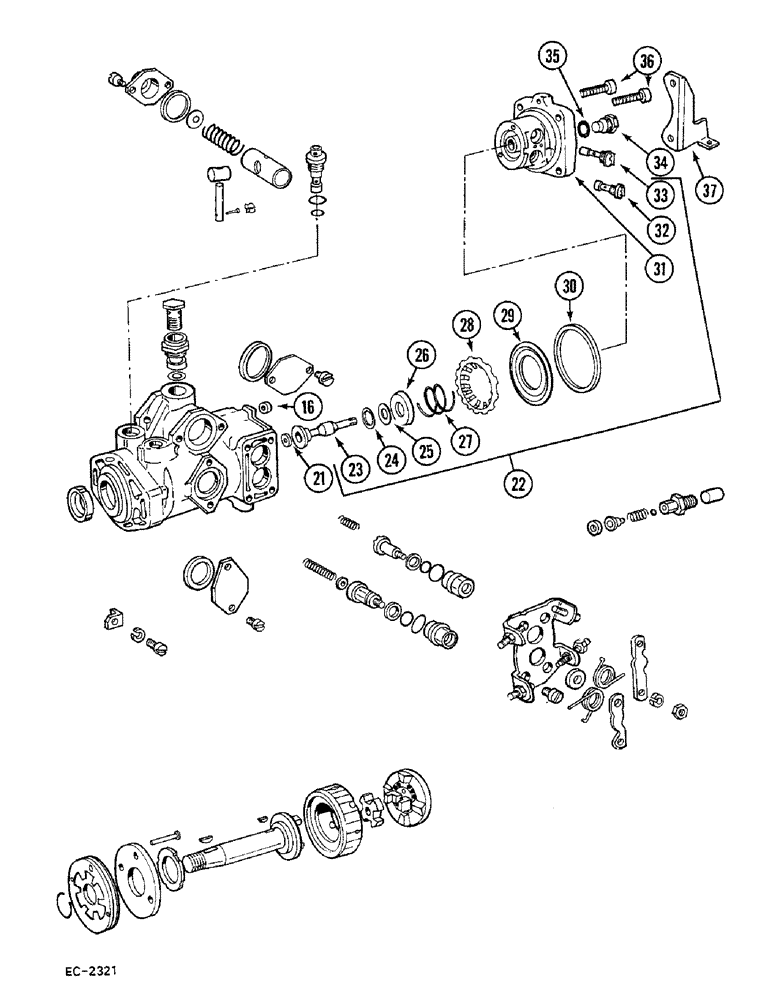

Запчасти Case 380B (3-74) - FUEL INJECTION PUMP, VA, BOSCH VA INJECTION PUMP (CONTD) (03) - FUEL SYSTEM

3144222R93

PUMP, FUEL INJECTION

PUMP - fuel injection (VA 3/100H 1090 CR43/3) (Continued from Figure 3-72) Includes: Ref. 21 - 37

1шт.

21

3078785R2

WASHER

- 2.28 MM

1шт.

21

3078787R2

WASHER

- 2.32 MM

1шт.

21

3078789R2

WASHER

- 2.36 MM

1шт.

21

3078791R2

WASHER

- 2.40 MM

1шт.

21

3078793R2

WASHER

- 2.44 MM

1шт.

21

3078795R2

WASHER

- 2.48 MM

1шт.

21

3078797R2

WASHER

- 2.52 MM

1шт.

21

3078799R2

WASHER

- 2.56 MM

1шт.

21

3078801R2

WASHER

- 2.60 MM

1шт.

21

3078803R2

WASHER

- 2.64 MM

1шт.

21

3078805R2

WASHER

- 2.68 MM

1шт.

21

3078807R2

WASHER

- 2.72 MM

1шт.

21

3078809R2

WASHER

- 2.76 MM

1шт.

21

3078811R2

WASHER

- 2.80 MM

1шт.

21

3078813R2

WASHER

- 2.84 MM

1шт.

21

3078815R2

WASHER

- 2.88 MM

1шт.

22

3078701R91

HEAD

- distributor, Includes: Ref. 23 - 33

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

24

3078540R1

WASHER

- plunger, 1.35 MM

1шт.

24

3078541R1

WASHER

- plunger, 1.60 MM

1шт.

24

3078542R1

WASHER

- plunger, 1.85 MM

1шт.

25

3078537R1

WASHER

- plunger, 1.65 MM

1шт.

25

3078571R1

WASHER

- plunger, 2.35 MM

1шт.

26

3078516R1

SEAT

- spring plunger

1шт.

27

3078515R1

SPRING

- plunger

1шт.

28

3078576R1

SPRING WASHER

- spring

1шт.

29

3078578R1

FILTER, FUEL

FILTER

1шт.

30

3078366R1

O-RING

- distributor head

1шт.

31

NSS

NOT SOLD SEPARAT

HEAD

1шт.

32

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

33

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

34

3078514R1

PLUG

1шт.

35

3132407R1

O-RING

- packing

1шт.

36

3078600R1

SCREW

- pump to distributor head

4шт.

37

3078549R1

SUPPORT

BRACKET - injection pump

1шт.
