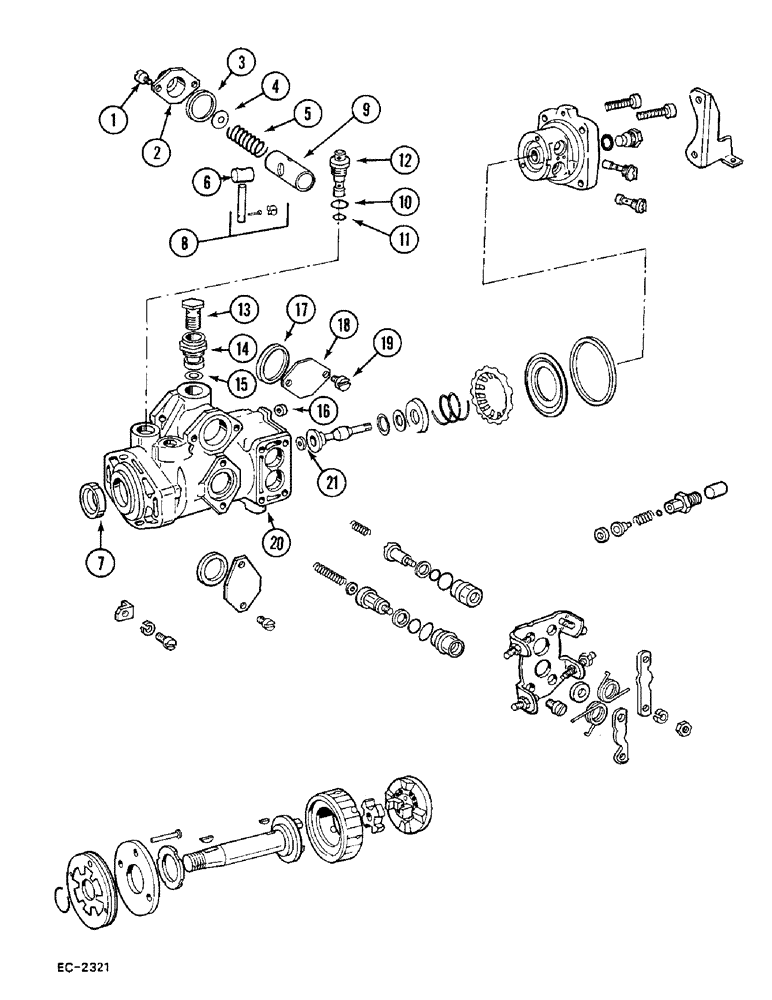

Запчасти Case 380B (3-72) - FUEL INJECTION PUMP, VA, BOSCH VA INJECTION PUMP (03) - FUEL SYSTEM

3144222R93

PUMP, FUEL INJECTION

PUMP - fuel injection (VA 3/100H 1090 CR43/3) Includes: Ref. 1 - 21

1шт.

1

439189C1

SCREW

- pan head, M6 x 15 MM

2шт.

2

3078489R1

COVER

- advance housing

1шт.

3

3078488R1

RING

- packing

1шт.

4

3078528R1

THRUST WASHER

- thrust, 0.6 MM

1шт.

4

3078529R1

THRUST WASHER

- thrust, 0.8 MM

1шт.

4

3078530R1

THRUST WASHER

- thrust, 1.0 MM

1шт.

4

3078531R1

THRUST WASHER

- thrust, 1.2 MM

1шт.

4

3078532R1

THRUST WASHER

- thrust, 1.4 MM

1шт.

4

3078533R1

THRUST WASHER

- thrust, 3.0 MM

1шт.

5

3078565R1

SPRING

- advance piston

1шт.

6

3078482R1

SLIDE

- advance piston

1шт.

7

3078355R2

OIL SEAL

- oil drive shaft

1шт.

8

3078481R1

PIN

- connecting auto advance

1шт.

9

3078572R91

HOUSING

- complete, with advance piston

1шт.

10

3078358R1

O-RING

- regulator valve

1шт.

11

3078535R1

O-RING

- regulator valve

1шт.

12

3078646R1

VALVE

- regulator

1шт.

13

3059086R1

BANJO BOLT

SCREW - inlet union pump housing

1шт.

14

3078484R1

VALVE

- overflow

1шт.

15

3078483R1

O-RING,2.5mm Thk x 15mm ID

- union adapter advance housing

1шт.

16

3078487R1

O-RING

- packing

1шт.

17

3078488R1

RING

- packing

1шт.

18

3078486R1

COVER

- timing window

1шт.

19

931585R1

BOLT,M6 x 15mm, Cl 10.9

- hex, M6 x 16 MM

2шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - injection pump

1шт.

21

3078761R2

WASHER

- 1.80 MM

1шт.

21

3078763R2

WASHER

- 1.84 MM

1шт.

21

3078765R2

WASHER

- 1.88 MM

1шт.

21

3078767R2

WASHER

- 1.92 MM

1шт.

21

3078769R2

WASHER

- 1.96 MM

1шт.

21

3078771R2

WASHER

- 2.00 MM

1шт.

21

3078773R2

WASHER

- 2.04 MM

1шт.

21

3078775R2

WASHER

- 2.08 MM

1шт.

21

3078777R2

WASHER

- 2.12 MM

1шт.

21

3078779R2

WASHER

- 2.16 MM

1шт.

21

3078781R2

WASHER

- 2.20 MM

1шт.

21

3078783R2

WASHER

- 2.24 MM

1шт.
