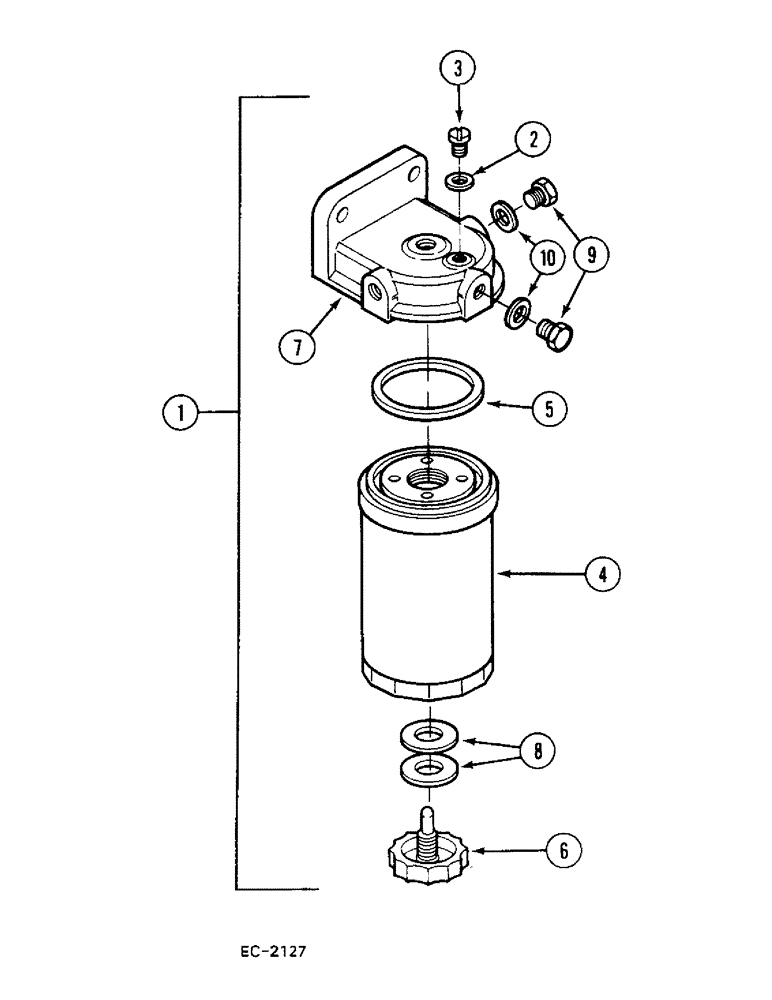

Запчасти Case 380B (3-62) - FUEL FILTER (03) - FUEL SYSTEM

1

3132452R92

FILTER

- fuel, Includes: Ref. 2 - 10

2шт.

2

757760R1

RING

- packing

1шт.

3

3144780R1

SCREW

- air vent

1шт.

4

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT - filter

1шт.

When tractors are brought into North America, the filter element supplied is a Bosch (their number 1457434158). When a replacement filter is ordered, it is supplied by Champion (9215841) . These filters are interchangeable, but have different size drain plugs. The Bosch filter has a 7.8 mm drain plug, which is serviceable under P/N 3228407R1. The Champion filter uses a 9.8 mm drain plug, but has not been relased for service due to the low volume usage. If a drain plug is required for the Champion filte

1шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing

1шт.

6

3228407R1

PLUG

- drain

1шт.

7

3132198R2

COVER

HEAD - filter

1шт.

8

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

- sealing

2шт.

9

712616R1

PLUG,Hex, M14 x 1.5

2шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.
