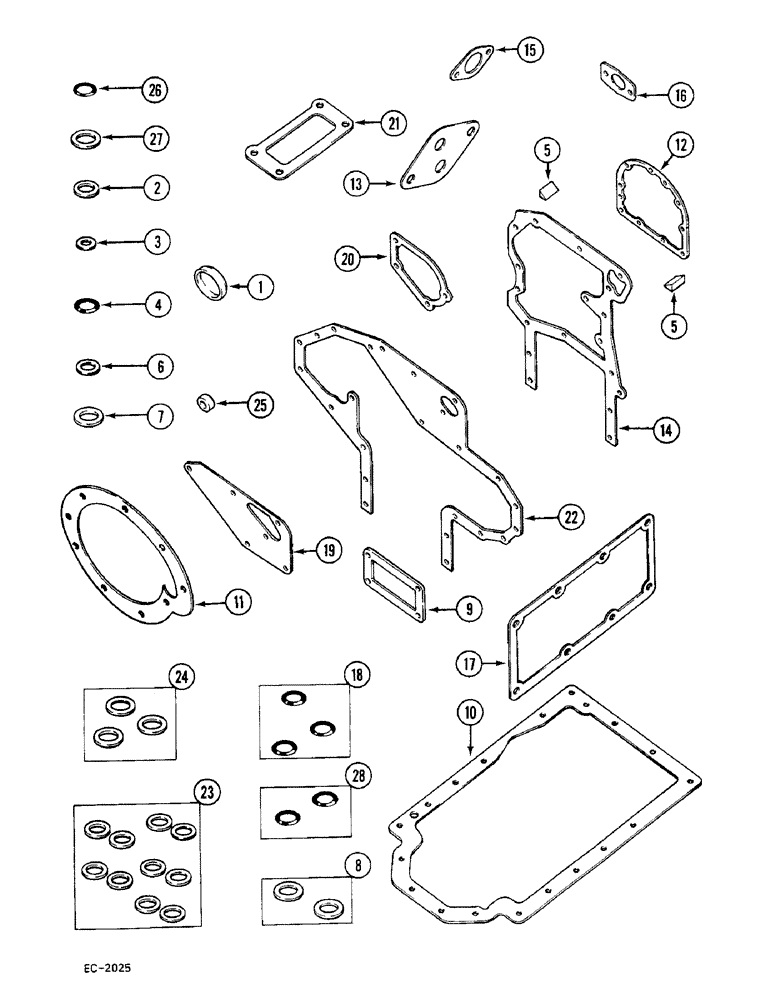

Запчасти Case 380B (2-60) - SERVICE KITS (02) - ENGINE

3136803R97

GASKET KIT

PACKAGE - crankcase gaskets, Includes: Ref. 1 - 28

1шт.

1

41-3044

PLUG,Exp, 2 3/4"

- expansion, 2-3/4 inch

1шт.

2

933222R1

SEALING WASHER,M18 x 22 x 1.5

1шт.

3

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing M14 x 18 x 1.5

1шт.

4

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

5

714868R1

SEALING STRIP

- sealing

2шт.

6

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

1шт.

7

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, , Gasket M26 x 31 x 2

1шт.

8

3138687R1

RING

- packing

2шт.

9

3138640R1

GASKET

- injection pump cover

1шт.

10

3055160R1

OIL PAN GASKET SET

- oil pan

1шт.

11

3055177R1

GASKET

- water pump

1шт.

12

3055215R1

GASKET

- crankcase oil seal retainer

1шт.

13

3055237R1

GASKET

- oil filter socket

1шт.

14

3055239R1

GASKET

- front plate

1шт.

15

3138639R1

GASKET

- crankcase breather

1шт.

16

3055384R1

GASKET

- fuel injection pump

1шт.

17

3055394R1

GASKET

- side cover

1шт.

18

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pump sealing

3шт.

19

3055999R1

GASKET

- water pump carrier

1шт.

20

3132541R1

GASKET

- closing cover

1шт.

21

3136248R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

1шт.

22

3055994R1

GASKET

- crankcase front cover

1шт.

23

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

10шт.

24

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.

25

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL - tachometer drive

1шт.

26

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

27

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

1шт.

28

3132869R1

O-RING

2шт.
