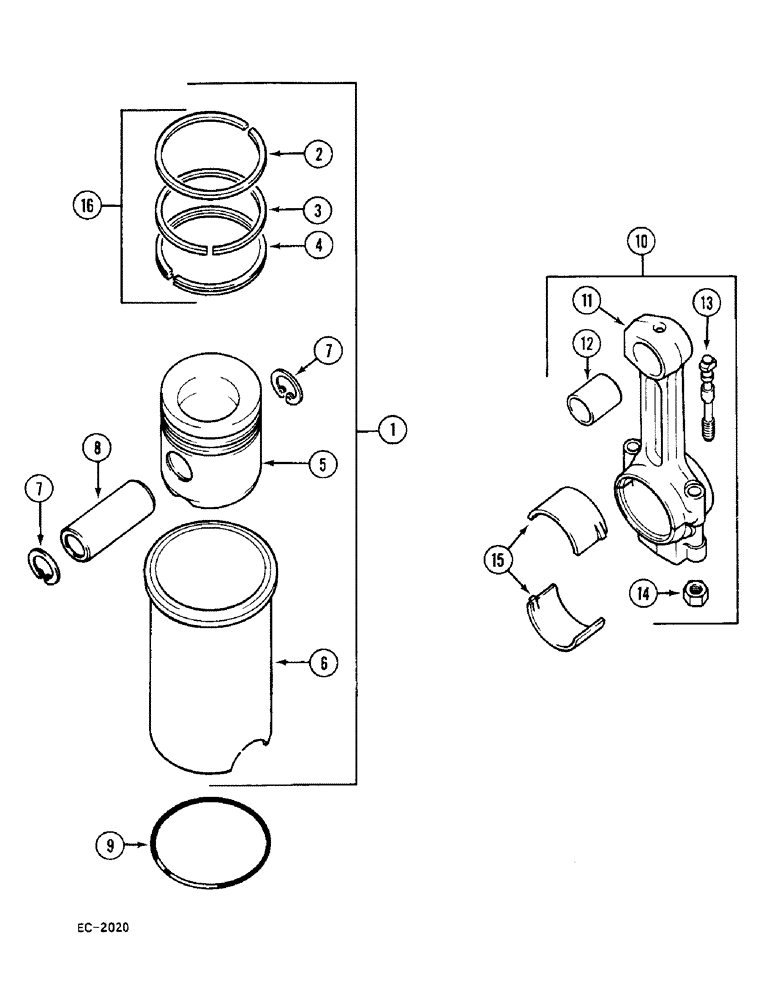

Запчасти Case 380B (2-50) - CONNECTING RODS, PISTONS AND SLEEVES (02) - ENGINE

1

3218759R95

SLEEVE ASSY

PISTON - with sleeve, Includes: Ref. 2 - 8

3шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, first (Order set 3218416R92)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, second (Order set 3218416R92)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, third (Order set 3218416R92)

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON

1шт.

6

3139592R4

SLEEVE CYLINDER

SLEEVE - cylinder

1шт.

7

933327R1

SNAP RING,M36, Int

RING - retaining

2шт.

8

3055217R2

PISTON PIN

PIN - piston

1шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

- packing, cylinder sleeve

3шт.

10

3055030R24

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 11 - 14

3шт.

11

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

12

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

- piston pin

1шт.

13

3055033R11

BOLT

- Connecting rod, Includes Ref 14

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - connecting rod bolt

2шт.

15

3055351R91

BEARING ASSY

BEARING - connecting rod, standard size

3шт.

16

3218416R92

PISTON RING SET

RING SET - piston, chrome

1шт.
