Запчасти Case 380B (2-46) - OIL FILTER (02) - ENGINE

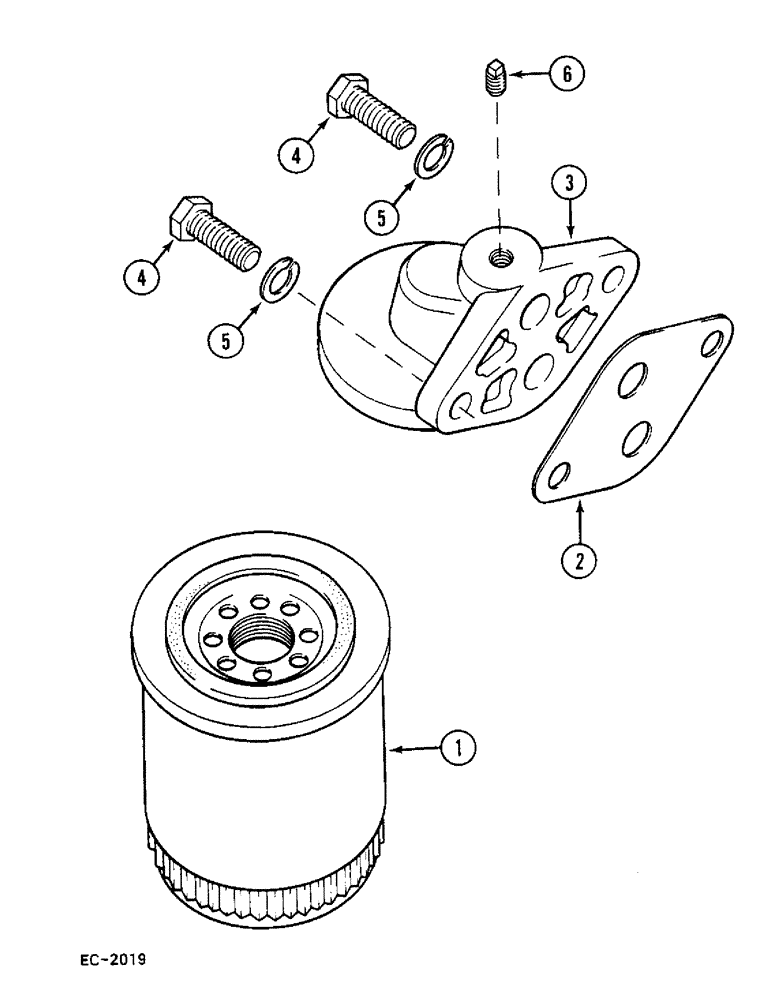

Схема запчастей Case 380B - (2-46) - OIL FILTER (02) - ENGINE
6
4
5
4
3
1
5
2

Артикул

Название

Примечание

Количество

1

3136046R93

FILTER, ENGINE OIL

FILTER - oil

1шт.

1

398080R2

ENGINE OIL FILTER

FILTER - oil, Serial Range: (Optional-3136046R93)

1шт.

2

3055237R1

GASKET

- oil filter socket

1шт.

3

3136047R1

HEAD

SOCKET - oil filter

1шт.

4

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, grade 5

2шт.

5

3144513R1

SPRING WASHER

WASHER - lock

2шт.

6

445684

PLUG

- automotive square, 1/8 inch NPTF

1шт.

Выбрано товаров: 7
