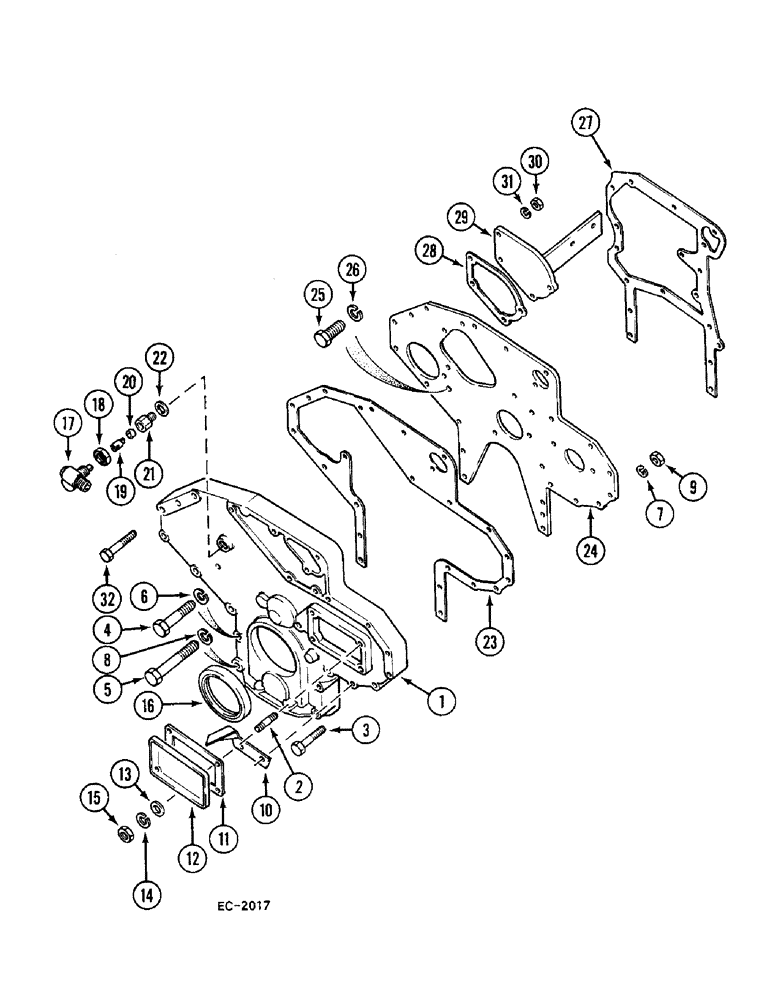

Запчасти Case 380B (2-42) - CYLINDER BLOCK FRONT COVER (02) - ENGINE

1

3136057R14

COVER ASSY

COVER - cylinder block front, Includes: Ref. 2

1шт.

2

3055242R1

STUD

- front cover

4шт.

3

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

8шт.

4

179827

FRONT AXLE

2шт.

5

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

6

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

7

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

6шт.

8

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

6шт.

10

3136252R11

INDICATOR

- timing

1шт.

11

3138640R1

GASKET

- injection pump cover

1шт.

12

3055140R1

COVER

- injection pump

1шт.

13

131402H

WASHER

- flat, 5/16 inch

4шт.

14

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

4шт.

16

3228133R93

SEAL KIT

KIT - service, crankshaft oil seal (See Figure 2-48)

1шт.

17

3055982R93

DRIVE, ANGLE

DRIVE - angle

1шт.

18

3132116R1

NUT

- hex, M18

1шт.

19

3056986R1

SUPPORT

COUPLING - drive, angle

1шт.

20

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL - tachometer drive

1шт.

21

3055983R1

REDUCER FITTING

SPACER

1шт.

22

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Packing M18 x 24 x 1.5

1шт.

23

3055994R1

GASKET

- crankcase front cover

1шт.

24

3055996R11

PLATE ASSY.

PLATE - cylinder block front cover

1шт.

25

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

7шт.

26

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

7шт.

27

3055239R1

GASKET

- front plate

1шт.

28

3132541R1

GASKET

- closing cover

1шт.

29

3138776R91

COVER

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

4шт.

31

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

32

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.
