(2-38) - CYLINDER BLOCK SIDE COVER, TRACTORS WITH VALVE COVER BREATHER

Запчасти Case 380B (2-38) - CYLINDER BLOCK SIDE COVER, TRACTORS WITH VALVE COVER BREATHER (02) - ENGINE

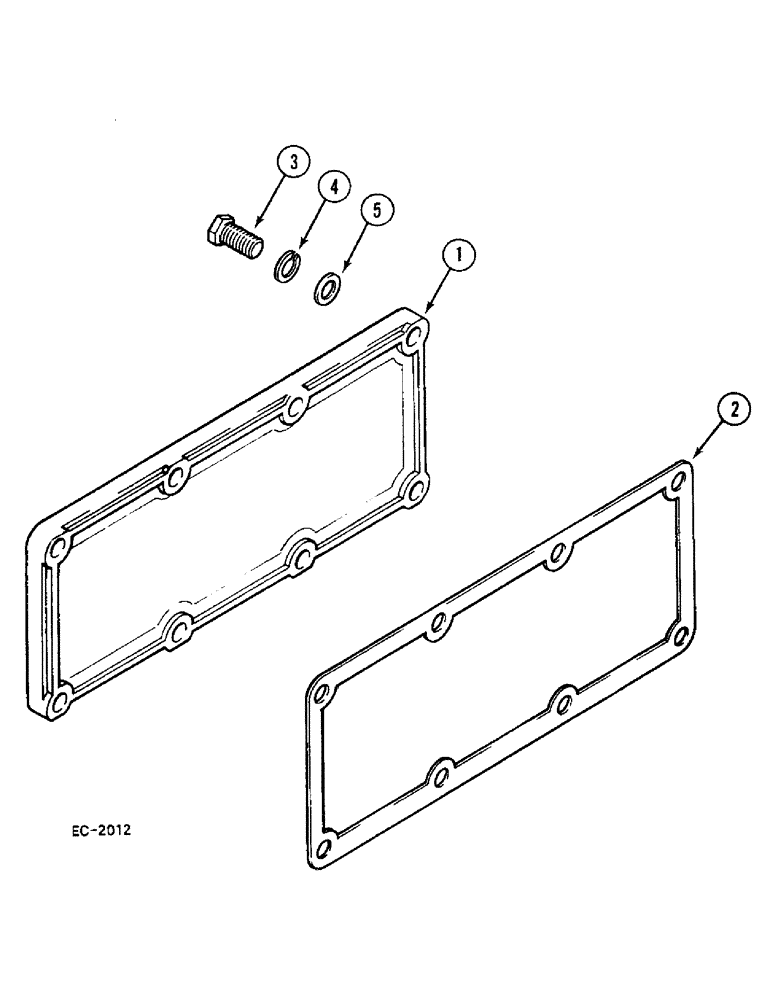

Схема запчастей Case 380B - (2-38) - CYLINDER BLOCK SIDE COVER, TRACTORS WITH VALVE COVER BREATHER (02) - ENGINE
3
5
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3132815R2

COVER

- cylinder block side

1шт.

2

3055394R1

GASKET

- side cover

1шт.

3

179814

SPACER

8шт.

4

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

8шт.

5

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

8шт.
