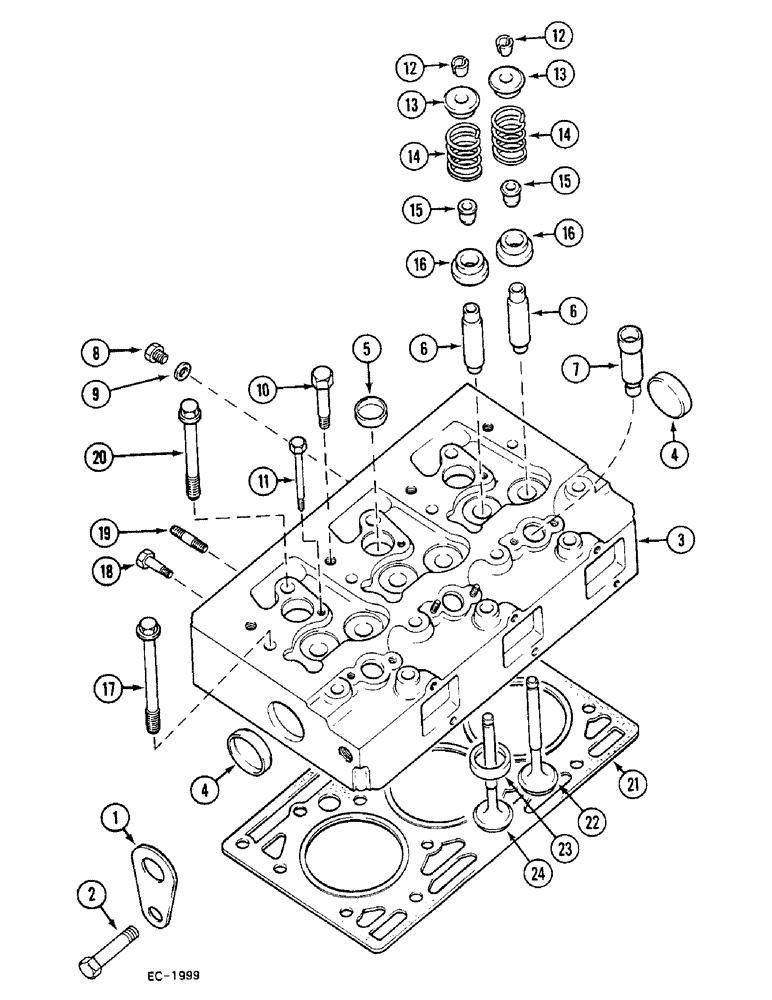

Запчасти Case 380B (2-36) - CYLINDER HEAD (02) - ENGINE

1

3055370R1

STIRRUP

SHACKLE - engine mounting, front

1шт.

2

NLS

NO LONGER SERVICED

- hex, 3/4 NC x 1-1/8 inch

1шт.

3

3055366R96

HEAD (CYLINDER)

HEAD - cylinder, Includes: Ref. 4 - 7

1шт.

4

934003R1

PLUG,M52, Conical

- expansion

2шт.

5

933537R1

PLUG,M25, Conical

- cup

3шт.

6

3055022R2

VALVE GUIDE

GUIDE - valve stem

6шт.

7

3055344R1

SLEEVE

INSERT - nozzle holder

3шт.

8

934259R1

PLUG,Hex, M10 x 1

1шт.

9

718743R1

SEALING RING,M10 x 16 x 1

Ring, Packing M10 x 16 x 1

1шт.

10

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex, 1/2" NC x 3-1/4", grade 5 (Rocker shaft bracket)

4шт.

11

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

- hex, 5/16"-18 NC x 4-1/2", grade 5 (Valve cover)

2шт.

12

3055057R91

ROCKER ARM COTTER

KEY - spring lock valve

12шт.

13

3055058R2

SPRING CUP

CAP - valve spring retainer

6шт.

14

3055060R1

SPRING

- valve

6шт.

15

3218399R91

GASKET KIT

KIT - valve stem seal

6шт.

16

3055059R91

CAP

VALVE - rotator

6шт.

17

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT - cylinder head

8шт.

18

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Water collecting pipe Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

19

3055663R1

STUD

- exhaust manifold

6шт.

20

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

- cylinder head

6шт.

21

3228361R1

CYLINDER HEAD GASKET

- cylinder head

1шт.

22

3055055R2

OVERSIZE INLET VALVE

VALVE - intake

3шт.

23

3132361R1

INSERT

- seat, exhaust valve, 0.016 inch oversize

3шт.

23

3132362R1

VALVE SEAT

INSERT - seat, exhaust valve, 0.006 inch oversize

3шт.

24

3055056R2

STD EXHAUST VALVE

VALVE - exhaust

3шт.
