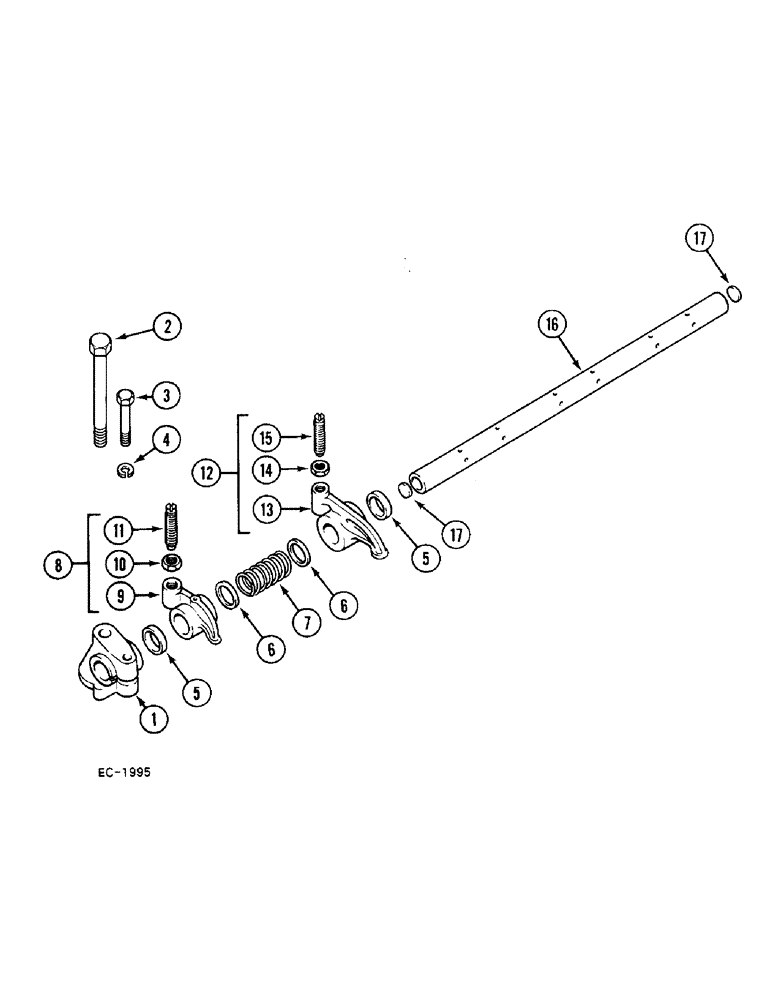

Запчасти Case 380B (2-34) - VALVE MECHANISM (02) - ENGINE

1

3055077R6

SUPPORT

BRACKET - rocker arm shaft

4шт.

2

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex, 1/2" NC x 3-1/4", grade 5

4шт.

3

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

4

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

5

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

- distance

5шт.

6

3055669R1

THRUST WASHER

- thrust, rocker arm

6шт.

7

3055075R2

SPRING

- rocker arm

3шт.

8

3132293R92

ROCKER

PACKAGE - service, exhaust rocker arm, Includes: Ref. 9 - 11

3шт.

9

NSS

NOT SOLD SEPARAT

ARM - exhaust

1шт.

10

3132138R1

NUT

- adjusting, rocker arm

1шт.

11

3132137R1

ADJUSTMENT SCREW

1шт.

12

3132292R92

ROCKER

PACKAGE - service, intake rocker arm, Includes: Ref. 13 - 15

3шт.

13

NSS

NOT SOLD SEPARAT

ARM - intake

1шт.

14

3132138R1

NUT

- adjusting, rocker arm

1шт.

15

3132137R1

ADJUSTMENT SCREW

1шт.

16

3055069R31

SHAFT

ASSEMBLY - rocker arm, Includes: Ref. 17

1шт.

17

933565R1

PLUG,M14, Conical

- cup

2шт.
